#include "workspace.h"
#include <libbase/libbase.h>
#include <linux/input-event-codes.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-util.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_pointer.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/util/edges.h>
#include <wlr/version.h>
#include "container.h"
#include "fsm.h"
#include "input.h"
#include "layer.h"
#include "test.h"
#include "tile.h"
#include "util.h"

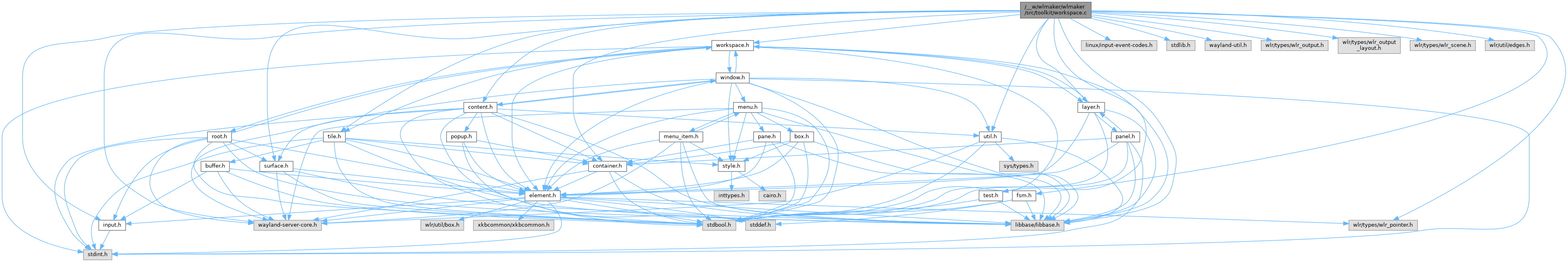

Include dependency graph for workspace.c:

Classes
struct	_wlmtk_workspace_t

struct	_wlmtk_workspace_test_context

Enumerations
enum	pointer_state_t { PFSMS_PASSTHROUGH , PFSMS_MOVE , PFSMS_RESIZE }

enum	pointer_state_event_t { PFSME_BEGIN_MOVE , PFSME_BEGIN_RESIZE , PFSME_RELEASED , PFSME_MOTION , PFSME_RESET }

Functions
static void	_wlmtk_workspace_element_destroy (wlmtk_element_t *element_ptr)

static void	_wlmtk_workspace_element_get_dimensions (wlmtk_element_t element_ptr, int left_ptr, int top_ptr, int right_ptr, int *bottom_ptr)

static bool	_wlmtk_workspace_element_pointer_button (wlmtk_element_t element_ptr, const wlmtk_button_event_t button_event_ptr)

static void	_wlmtk_workspace_handle_output_layout_change (struct wl_listener listener_ptr, void data_ptr)

static void	_wlmtk_workspace_handle_element_pointer_leave (struct wl_listener listener_ptr, void data_ptr)

static void	_wlmtk_workspace_handle_element_pointer_motion (struct wl_listener listener_ptr, void data_ptr)

static void	_wlmtk_window_reposition_window (bs_dllist_node_t dlnode_ptr, void ud_ptr)

static bool	_wlmtk_workspace_window_overlaps (bs_dllist_node_t dlnode_ptr, void ud_ptr)

static void	_wlmtk_workspace_place_window (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

static bool	pfsm_move_begin (wlmtk_fsm_t fsm_ptr, void ud_ptr)

static bool	pfsm_move_motion (wlmtk_fsm_t fsm_ptr, void ud_ptr)

static bool	pfsm_resize_begin (wlmtk_fsm_t fsm_ptr, void ud_ptr)

static bool	pfsm_resize_motion (wlmtk_fsm_t fsm_ptr, void ud_ptr)

static bool	pfsm_reset (wlmtk_fsm_t fsm_ptr, void ud_ptr)

wlmtk_workspace_t *	wlmtk_workspace_create (struct wlr_output_layout wlr_output_layout_ptr, const char name_ptr, const struct wlmtk_tile_style *tile_style_ptr)

void	wlmtk_workspace_destroy (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_set_details (wlmtk_workspace_t *workspace_ptr, int index)

void	wlmtk_workspace_get_details (wlmtk_workspace_t workspace_ptr, const char name_ptr_ptr, int index_ptr)

struct wlr_box	wlmtk_workspace_get_maximize_extents (wlmtk_workspace_t workspace_ptr, struct wlr_output wlr_output_ptr)

void	wlmtk_workspace_confine_within (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

struct wlr_output_layout *	wlmtk_workspace_get_wlr_output_layout (wlmtk_workspace_t *workspace_ptr)

struct wlr_box	wlmtk_workspace_get_fullscreen_extents (wlmtk_workspace_t workspace_ptr, struct wlr_output wlr_output_ptr)

void	wlmtk_workspace_enable (wlmtk_workspace_t *workspace_ptr, bool enabled)

bool	wlmtk_workspace_enabled (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_map_window (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

void	wlmtk_workspace_unmap_window (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

void	wlmtk_workspace_set_window_position (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr, int x, int y)

wlmtk_layer_t *	wlmtk_workspace_get_layer (wlmtk_workspace_t *workspace_ptr, wlmtk_workspace_layer_t layer)

bs_dllist_t *	wlmtk_workspace_get_windows_dllist (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_window_to_fullscreen (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr, bool fullscreen)

void	wlmtk_workspace_begin_window_move (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

void	wlmtk_workspace_begin_window_resize (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr, uint32_t edges)

void	wlmtk_workspace_activate_window (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

wlmtk_window_t *	wlmtk_workspace_get_activated_window (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_activate_previous_window (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_activate_next_window (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_raise_window (wlmtk_workspace_t workspace_ptr, wlmtk_window_t window_ptr)

wlmtk_element_t *	wlmtk_workspace_element (wlmtk_workspace_t *workspace_ptr)

wlmtk_desktop_t *	wlmtk_workspace_get_desktop (wlmtk_workspace_t *workspace_ptr)

void	wlmtk_workspace_set_desktop (wlmtk_workspace_t workspace_ptr, wlmtk_desktop_t desktop_ptr)

bs_dllist_node_t *	wlmtk_dlnode_from_workspace (wlmtk_workspace_t *workspace_ptr)

wlmtk_workspace_t *	wlmtk_workspace_from_dlnode (bs_dllist_node_t *dlnode_ptr)

static bool	wlr_box_contains_box (const struct wlr_box parent_box_ptr, const struct wlr_box child_box_ptr)

static void	test_create_destroy (bs_test_t *test_ptr)

static void	test_map_unmap (bs_test_t *test_ptr)

static void	test_move (bs_test_t *test_ptr)

static void	test_unmap_during_move (bs_test_t *test_ptr)

static void	test_resize (bs_test_t *test_ptr)

static void	test_enable (bs_test_t *test_ptr)

static void	test_activate (bs_test_t *test_ptr)

static void	test_activate_cycling (bs_test_t *test_ptr)

static void	test_multi_output_extents (bs_test_t *test_ptr)

static void	test_multi_output_reposition (bs_test_t *test_ptr)

static void	test_window_position (bs_test_t *test_ptr)

static void *	_wlmtk_workspace_test_setup (void)

static void	_wlmtk_workspace_test_teardown (void *setup_context_ptr)

static void	_wlmtk_workspace_test_unmap_and_destroy_window (bs_dllist_node_t dlnode_ptr, void ud_ptr)

Variables
const wlmtk_element_vmt_t	workspace_element_vmt

static const wlmtk_fsm_transition_t	pfsm_transitions []

static const int	_wlmtk_workspace_placement_step = 24

static const bs_test_case_t	_wlmtk_workspace_test_cases []

static const struct wlmtk_tile_style	_wlmtk_workspace_test_tile_style

const bs_test_set_t	wlmtk_workspace_test_set

Detailed Description

Copyright: Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Enumeration Type Documentation

◆ pointer_state_event_t

enum pointer_state_event_t

Events for the pointer FSM.

◆ pointer_state_t

enum pointer_state_t

States of the pointer FSM.

Function Documentation

◆ _wlmtk_window_reposition_window()

void _wlmtk_window_reposition_window	(	bs_dllist_node_t *	dlnode_ptr,
		void *	ud_ptr
	)

static

Repositions the window. To be called when output layout changes.

◆ _wlmtk_workspace_element_destroy()

void _wlmtk_workspace_element_destroy ( wlmtk_element_t * element_ptr )

static

Virtual destructor, wraps to our dtor.

◆ _wlmtk_workspace_element_get_dimensions()

void _wlmtk_workspace_element_get_dimensions	(	wlmtk_element_t *	element_ptr,
		int *	left_ptr,
		int *	top_ptr,
		int *	right_ptr,
		int *	bottom_ptr
	)

static

Returns the workspace area.

◆ _wlmtk_workspace_element_pointer_button()

bool _wlmtk_workspace_element_pointer_button	(	wlmtk_element_t *	element_ptr,
		const wlmtk_button_event_t *	button_event_ptr
	)

static

Extends wlmtk_container_t::pointer_button.

Parameters

element_ptr
button_event_ptr

Returns: Whether the button event was consumed.

◆ _wlmtk_workspace_handle_element_pointer_leave()

void _wlmtk_workspace_handle_element_pointer_leave	(	struct wl_listener *	listener_ptr,
		void *	data_ptr
	)

static

Handles wlmtk_element_events_t::pointer_leave. Reset state machine.

◆ _wlmtk_workspace_handle_element_pointer_motion()

void _wlmtk_workspace_handle_element_pointer_motion	(	struct wl_listener *	listener_ptr,
		void *	data_ptr
	)

static

wlmtk_element_events_t::pointer_motion. Feeds into state machine.

◆ _wlmtk_workspace_handle_output_layout_change()

void _wlmtk_workspace_handle_output_layout_change	(	struct wl_listener *	listener_ptr,
		void *	data_ptr
	)

static

Handles output changes: Updates own extents, updates layers.

◆ _wlmtk_workspace_place_window()

void _wlmtk_workspace_place_window	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

static

Window placement: Finds a place for the window.

Looks for a non-overlapping space at the current position of window_ptr, and then for tiles right or below it. If none is found, build a stacking order, at _wlmtk_workspace_placement_step pixels apart.

Parameters

workspace_ptr
window_ptr

◆ _wlmtk_workspace_test_setup()

void * _wlmtk_workspace_test_setup ( void )

static

Context setup for workspace tests.

◆ _wlmtk_workspace_test_teardown()

void _wlmtk_workspace_test_teardown ( void * setup_context_ptr )

static

Context teardown for workspace tests.

◆ _wlmtk_workspace_test_unmap_and_destroy_window()

void _wlmtk_workspace_test_unmap_and_destroy_window	(	bs_dllist_node_t *	dlnode_ptr,
		void *	ud_ptr
	)

static

Iterator for bs_dllist_for_each: Unmaps and destroys any window.

◆ _wlmtk_workspace_window_overlaps()

bool _wlmtk_workspace_window_overlaps	(	bs_dllist_node_t *	dlnode_ptr,
		void *	ud_ptr
	)

static

Iterator for bs_dllist_any: Does window at dlnode_ptr overlap?

◆ pfsm_move_begin()

bool pfsm_move_begin	(	wlmtk_fsm_t *	fsm_ptr,
		void *	ud_ptr
	)

static

Initiates a move.

◆ pfsm_move_motion()

bool pfsm_move_motion	(	wlmtk_fsm_t *	fsm_ptr,
		void *	ud_ptr
	)

static

Handles motion during a move.

◆ pfsm_reset()

bool pfsm_reset	(	wlmtk_fsm_t *	fsm_ptr,
		void *	ud_ptr
	)

static

Resets the state machine.

◆ pfsm_resize_begin()

bool pfsm_resize_begin	(	wlmtk_fsm_t *	fsm_ptr,
		void *	ud_ptr
	)

static

Initiates a resize.

◆ pfsm_resize_motion()

bool pfsm_resize_motion	(	wlmtk_fsm_t *	fsm_ptr,
		void *	ud_ptr
	)

static

Handles motion during a resize.

◆ test_activate()

void test_activate ( bs_test_t * test_ptr )

static

Tests window activation.

◆ test_activate_cycling()

void test_activate_cycling ( bs_test_t * test_ptr )

static

Tests cycling through windows.

◆ test_create_destroy()

void test_create_destroy ( bs_test_t * test_ptr )

static

Exercises workspace create & destroy methods.

◆ test_enable()

void test_enable ( bs_test_t * test_ptr )

static

Tests enabling or disabling the workspace.

◆ test_map_unmap()

void test_map_unmap ( bs_test_t * test_ptr )

static

Verifies that mapping and unmapping windows works.

◆ test_move()

void test_move ( bs_test_t * test_ptr )

static

Tests moving a window.

◆ test_multi_output_extents()

void test_multi_output_extents ( bs_test_t * test_ptr )

static

Tests extents with multiple outputs.

◆ test_multi_output_reposition()

void test_multi_output_reposition ( bs_test_t * test_ptr )

static

Verifies that windows are re-positioned when output is removed.

◆ test_resize()

void test_resize ( bs_test_t * test_ptr )

static

Tests resizing a window.

◆ test_unmap_during_move()

void test_unmap_during_move ( bs_test_t * test_ptr )

static

Tests moving a window that unmaps during the move.

◆ test_window_position()

void test_window_position ( bs_test_t * test_ptr )

static

Tests window placement.

◆ wlmtk_dlnode_from_workspace()

bs_dllist_node_t * wlmtk_dlnode_from_workspace ( wlmtk_workspace_t * workspace_ptr )

Returns: Pointer to wlmtk_workspace_t::dlnode.

◆ wlmtk_workspace_activate_next_window()

void wlmtk_workspace_activate_next_window ( wlmtk_workspace_t * workspace_ptr )

Activates the wlmtk_window_t after the currently activated one.

Intended to permit cycling through tasks. Will activate the window, but not raise it. See wlmtk_workspace_activate_previous_window.

Parameters

workspace_ptr

◆ wlmtk_workspace_activate_previous_window()

void wlmtk_workspace_activate_previous_window ( wlmtk_workspace_t * workspace_ptr )

Activates the wlmtk_window_t before the currently activated one.

Intended to permit cycling through tasks. Will activate the window, but not raise it. See wlmtk_workspace_activate_next_window.

Parameters

workspace_ptr

◆ wlmtk_workspace_activate_window()

void wlmtk_workspace_activate_window	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Acticates window_ptr. Will de-activate an earlier window.

◆ wlmtk_workspace_begin_window_move()

void wlmtk_workspace_begin_window_move	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Initiates a 'move' for the window.

Parameters

workspace_ptr
window_ptr

◆ wlmtk_workspace_begin_window_resize()

void wlmtk_workspace_begin_window_resize	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr,
		uint32_t	edges
	)

Initiates a 'resize' for the window.

Parameters

workspace_ptr
window_ptr
edges

◆ wlmtk_workspace_confine_within()

void wlmtk_workspace_confine_within	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Confines the window to remain entirely within workspace extents.

A no-op if window_ptr is not mapped to workspace_ptr.

Parameters

workspace_ptr
window_ptr

◆ wlmtk_workspace_create()

wlmtk_workspace_t * wlmtk_workspace_create	(	struct wlr_output_layout *	wlr_output_layout_ptr,
		const char *	name_ptr,
		const struct wlmtk_tile_style *	tile_style_ptr
	)

Creates a workspace.

Parameters

wlr_output_layout_ptr	Output layout. Must outlive the workspace.
name_ptr
tile_style_ptr

Returns: Pointer to the workspace state, or NULL on error. Must be free'd via wlmtk_workspace_destroy.

◆ wlmtk_workspace_destroy()

void wlmtk_workspace_destroy ( wlmtk_workspace_t * workspace_ptr )

Destroys the workspace. Will destroy any stil-contained element.

Parameters

workspace_ptr

◆ wlmtk_workspace_element()

wlmtk_element_t * wlmtk_workspace_element ( wlmtk_workspace_t * workspace_ptr )

Returns: Pointer to wlmtk_workspace_t::super_container::super_element.

◆ wlmtk_workspace_enable()

void wlmtk_workspace_enable	(	wlmtk_workspace_t *	workspace_ptr,
		bool	enabled
	)

Enabled or disables the workspace.

An enabled workspace can have keyboard focus and activated windows. When re-enabling a workspace, the formerly activated window will get re-activated and re-gains keyboard focus.

Parameters

workspace_ptr
enabled

◆ wlmtk_workspace_enabled()

bool wlmtk_workspace_enabled ( wlmtk_workspace_t * workspace_ptr )

Returns: whether this workspace is enabled.

◆ wlmtk_workspace_from_dlnode()

wlmtk_workspace_t * wlmtk_workspace_from_dlnode ( bs_dllist_node_t * dlnode_ptr )

Returns: Poitner to the wlmtk_workspace_t of the dlnode_ptr.

◆ wlmtk_workspace_get_activated_window()

wlmtk_window_t * wlmtk_workspace_get_activated_window ( wlmtk_workspace_t * workspace_ptr )

Returns: Pointer to the activated wlmtk_window_t, if any.

◆ wlmtk_workspace_get_desktop()

wlmtk_desktop_t * wlmtk_workspace_get_desktop ( wlmtk_workspace_t * workspace_ptr )

Returns: pointer to the anchor wlmtk_desktop_t of workspace_ptr.

◆ wlmtk_workspace_get_details()

void wlmtk_workspace_get_details	(	wlmtk_workspace_t *	workspace_ptr,
		const char **	name_ptr_ptr,
		int *	index_ptr
	)

Retrieves the naming details of this workspace.

Parameters

workspace_ptr
name_ptr_ptr
index_ptr

◆ wlmtk_workspace_get_fullscreen_extents()

struct wlr_box wlmtk_workspace_get_fullscreen_extents	(	wlmtk_workspace_t *	workspace_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Returns the extents of the workspace available for fullscreen windows.

Parameters

workspace_ptr
wlr_output_ptr	Output to lookup the extents for. May be NULL, in which case the primary output is used.

Returns: A struct wlr_box that lines out the available space and position.

◆ wlmtk_workspace_get_layer()

wlmtk_layer_t * wlmtk_workspace_get_layer	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_workspace_layer_t	layer
	)

Returns pointer to the wlmtk_layer_t handle serving layer.

Parameters

workspace_ptr
layer

Returns: Pointer to the layer state.

◆ wlmtk_workspace_get_maximize_extents()

struct wlr_box wlmtk_workspace_get_maximize_extents	(	wlmtk_workspace_t *	workspace_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Returns the workspace'soutput extents available for maximized windows.

Parameters

workspace_ptr
wlr_output_ptr	Output to lookup the extents for. May be NULL, in which case the primary output is used.

Returns: A struct wlr_box that lines out the available space and position.

◆ wlmtk_workspace_get_windows_dllist()

bs_dllist_t * wlmtk_workspace_get_windows_dllist ( wlmtk_workspace_t * workspace_ptr )

Returns the bs_dllist_t of currently mapped windows.

Parameters

workspace_ptr

Returns: A pointer to the list. Note that the list should not be manipulated directly. It's contents can change on wlmtk_workspace_map_window or wlmtk_workspace_unmap_window calls.

◆ wlmtk_workspace_get_wlr_output_layout()

struct wlr_output_layout * wlmtk_workspace_get_wlr_output_layout ( wlmtk_workspace_t * workspace_ptr )

Returns wlmtk_workspace_t::wlr_output_layout_ptr.

◆ wlmtk_workspace_map_window()

void wlmtk_workspace_map_window	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Maps the window: Adds it to the workspace container and makes it visible.

Parameters

workspace_ptr
window_ptr

◆ wlmtk_workspace_raise_window()

void wlmtk_workspace_raise_window	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Raises window_ptr: Will show it atop all other windows.

◆ wlmtk_workspace_set_desktop()

void wlmtk_workspace_set_desktop	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_desktop_t *	desktop_ptr
	)

Sets the anchor wlmtk_desktop_t of workspace_ptr.

Must only be called from wlmtk_desktop_t.

Parameters

workspace_ptr
desktop_ptr

◆ wlmtk_workspace_set_details()

void wlmtk_workspace_set_details	(	wlmtk_workspace_t *	workspace_ptr,
		int	index
	)

Sets or updates workspace details.

Parameters

workspace_ptr
index

◆ wlmtk_workspace_set_window_position()

void wlmtk_workspace_set_window_position	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr,
		int	x,
		int	y
	)

Sets the window's position.

Parameters

workspace_ptr
window_ptr
x
y

◆ wlmtk_workspace_unmap_window()

void wlmtk_workspace_unmap_window	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr
	)

Unmaps the window: Sets it as invisible and removes it from the container.

Parameters

workspace_ptr
window_ptr

◆ wlmtk_workspace_window_to_fullscreen()

void wlmtk_workspace_window_to_fullscreen	(	wlmtk_workspace_t *	workspace_ptr,
		wlmtk_window_t *	window_ptr,
		bool	fullscreen
	)

Promotes the window to the fullscreen layer (or back).

To be called by wlmtk_window_commit_fullscreen.

Parameters

workspace_ptr
window_ptr
fullscreen

◆ wlr_box_contains_box()

static bool wlr_box_contains_box	(	const struct wlr_box *	parent_box_ptr,
		const struct wlr_box *	child_box_ptr
	)

static

Whether smaller is fully contained in bigger.

Variable Documentation

◆ _wlmtk_workspace_placement_step

const int _wlmtk_workspace_placement_step = 24

static

For window placement: Pixel distance between each stacked position.

◆ _wlmtk_workspace_test_cases

const bs_test_case_t _wlmtk_workspace_test_cases[]

static

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 1, "map_unmap", test_map_unmap },
    { 1, "move", test_move },
    { 1, "unmap_during_move", test_unmap_during_move },
    { 1, "resize", test_resize },
    { 1, "enable", test_enable } ,
    { 1, "activate", test_activate },
    { 1, "activate_cycling", test_activate_cycling },
    { 1, "multi_output_extents", test_multi_output_extents },
    { 1, "multi_output_reposition", test_multi_output_reposition },
    { 1, "window_position", test_window_position },

}

Test cases

◆ _wlmtk_workspace_test_tile_style

const struct wlmtk_tile_style _wlmtk_workspace_test_tile_style

static

Initial value:

= {
    .size = 64
}

Tile style used in tests.

◆ pfsm_transitions

const wlmtk_fsm_transition_t pfsm_transitions[]

static

Initial value:

= {
    { PFSMS_PASSTHROUGH, PFSME_BEGIN_MOVE, PFSMS_MOVE, pfsm_move_begin },
    { PFSMS_MOVE, PFSME_MOTION, PFSMS_MOVE, pfsm_move_motion },
    { PFSMS_MOVE, PFSME_RELEASED, PFSMS_PASSTHROUGH, pfsm_reset },
    { PFSMS_MOVE, PFSME_RESET, PFSMS_PASSTHROUGH, pfsm_reset },
    { PFSMS_PASSTHROUGH, PFSME_BEGIN_RESIZE, PFSMS_RESIZE, pfsm_resize_begin },
    { PFSMS_RESIZE, PFSME_MOTION, PFSMS_RESIZE, pfsm_resize_motion },
    { PFSMS_RESIZE, PFSME_RELEASED, PFSMS_PASSTHROUGH, pfsm_reset },
    { PFSMS_RESIZE, PFSME_RESET, PFSMS_PASSTHROUGH, pfsm_reset },
    WLMTK_FSM_TRANSITION_SENTINEL,
}

Finite state machine definition for pointer events.

◆ wlmtk_workspace_test_set

const bs_test_set_t wlmtk_workspace_test_set

Initial value:

= BS_TEST_SET_CONTEXT(
    true, "workspace", _wlmtk_workspace_test_cases,
    _wlmtk_workspace_test_setup, _wlmtk_workspace_test_teardown)

Unit tests for the workspace.

◆ workspace_element_vmt

const wlmtk_element_vmt_t workspace_element_vmt

Initial value:

= {
    .destroy = _wlmtk_workspace_element_destroy,
    .get_dimensions = _wlmtk_workspace_element_get_dimensions,
    .pointer_button = _wlmtk_workspace_element_pointer_button,
}

Extensions to the workspace's super element's virtual methods.

Classes

Enumerations

Functions

Variables

Detailed Description

Enumeration Type Documentation

◆ pointer_state_event_t

◆ pointer_state_t

Function Documentation

◆ _wlmtk_window_reposition_window()

◆ _wlmtk_workspace_element_destroy()

◆ _wlmtk_workspace_element_get_dimensions()

◆ _wlmtk_workspace_element_pointer_button()

◆ _wlmtk_workspace_handle_element_pointer_leave()

◆ _wlmtk_workspace_handle_element_pointer_motion()

◆ _wlmtk_workspace_handle_output_layout_change()

◆ _wlmtk_workspace_place_window()

◆ _wlmtk_workspace_test_setup()

◆ _wlmtk_workspace_test_teardown()

◆ _wlmtk_workspace_test_unmap_and_destroy_window()

◆ _wlmtk_workspace_window_overlaps()

◆ pfsm_move_begin()

◆ pfsm_move_motion()

◆ pfsm_reset()

◆ pfsm_resize_begin()

◆ pfsm_resize_motion()

◆ test_activate()

◆ test_activate_cycling()

◆ test_create_destroy()

◆ test_enable()

◆ test_map_unmap()

◆ test_move()

◆ test_multi_output_extents()

◆ test_multi_output_reposition()

◆ test_resize()

◆ test_unmap_during_move()

◆ test_window_position()

◆ wlmtk_dlnode_from_workspace()

◆ wlmtk_workspace_activate_next_window()

◆ wlmtk_workspace_activate_previous_window()

◆ wlmtk_workspace_activate_window()

◆ wlmtk_workspace_begin_window_move()

◆ wlmtk_workspace_begin_window_resize()

◆ wlmtk_workspace_confine_within()

◆ wlmtk_workspace_create()

◆ wlmtk_workspace_destroy()

◆ wlmtk_workspace_element()

◆ wlmtk_workspace_enable()

◆ wlmtk_workspace_enabled()

◆ wlmtk_workspace_from_dlnode()

◆ wlmtk_workspace_get_activated_window()

◆ wlmtk_workspace_get_desktop()

◆ wlmtk_workspace_get_details()

◆ wlmtk_workspace_get_fullscreen_extents()

◆ wlmtk_workspace_get_layer()

◆ wlmtk_workspace_get_maximize_extents()

◆ wlmtk_workspace_get_windows_dllist()

◆ wlmtk_workspace_get_wlr_output_layout()

◆ wlmtk_workspace_map_window()

◆ wlmtk_workspace_raise_window()

◆ wlmtk_workspace_set_desktop()

◆ wlmtk_workspace_set_details()

◆ wlmtk_workspace_set_window_position()

◆ wlmtk_workspace_unmap_window()

◆ wlmtk_workspace_window_to_fullscreen()

◆ wlr_box_contains_box()

Variable Documentation

◆ _wlmtk_workspace_placement_step

◆ _wlmtk_workspace_test_cases

◆ _wlmtk_workspace_test_tile_style

◆ pfsm_transitions

◆ wlmtk_workspace_test_set

◆ workspace_element_vmt
