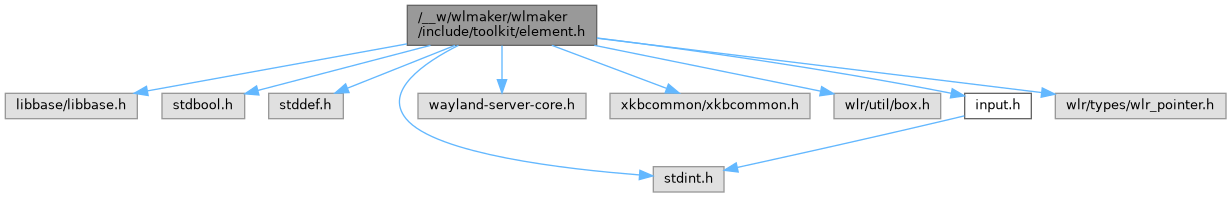

#include <libbase/libbase.h>#include <stdbool.h>#include <stddef.h>#include <stdint.h>#include <wayland-server-core.h>#include <xkbcommon/xkbcommon.h>#include <wlr/util/box.h>#include "input.h"#include <wlr/types/wlr_pointer.h>
Go to the source code of this file.
Classes | |
| struct | wlmtk_element_events_t |
| struct | _wlmtk_element_vmt_t |
| struct | _wlmtk_element_t |
| struct | wlmtk_fake_element_t |
Typedefs | |
| typedef struct _wlmtk_element_t | wlmtk_element_t |
| typedef struct _wlmtk_element_vmt_t | wlmtk_element_vmt_t |
| typedef struct _wlmtk_container_t | wlmtk_container_t |
Variables | |
| const bs_test_case_t | wlmtk_element_test_cases [] |
Detailed Description
- Copyright
- Copyright 2023 Google LLC
Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at
https://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
Typedef Documentation
◆ wlmtk_container_t
| typedef struct _wlmtk_container_t wlmtk_container_t |
Forward declaration: Container.
◆ wlmtk_element_t
| typedef struct _wlmtk_element_t wlmtk_element_t |
Forward declaration: Element.
◆ wlmtk_element_vmt_t
| typedef struct _wlmtk_element_vmt_t wlmtk_element_vmt_t |
Forward declaration: Element virtual method table.
Function Documentation
◆ wlmtk_dlnode_from_element()
| bs_dllist_node_t * wlmtk_dlnode_from_element | ( | wlmtk_element_t * | element_ptr | ) |
Gets the dlnode from the element.
◆ wlmtk_element_attach_to_scene_graph()
| void wlmtk_element_attach_to_scene_graph | ( | wlmtk_element_t * | element_ptr | ) |
Attaches or detaches the element to the parent's wlroots scene tree.
If the element has a parent, and that parent is itself attached to the wlroots scene tree, this will either re-parent an already existing node, or invoke wlmtk_element_vmt_t::create_scene_node to create and attach a new node to the paren'ts tree. Otherwise, it will clear any existing node.
The function is idempotent.
Private: Should only called by wlmtk_container_t methods, when there are changes to wlmtk_container_t::wlr_scene_tree.
- Parameters
-
element_ptr
◆ wlmtk_element_destroy()
|
inlinestatic |
Virtual method: Calls the dtor of the element's implementation.
The implementation is required to call wlmtk_element_fini().
- Parameters
-
element_ptr
◆ wlmtk_element_extend()
| wlmtk_element_vmt_t wlmtk_element_extend | ( | wlmtk_element_t * | element_ptr, |
| const wlmtk_element_vmt_t * | element_vmt_ptr | ||
| ) |
Extends the element's virtual methods.
- Parameters
-
element_ptr element_vmt_ptr
- Returns
- The previous virtual method table.
◆ wlmtk_element_fini()
| void wlmtk_element_fini | ( | wlmtk_element_t * | element_ptr | ) |
Cleans up the element.
- Parameters
-
element_ptr
◆ wlmtk_element_from_dlnode()
| wlmtk_element_t * wlmtk_element_from_dlnode | ( | bs_dllist_node_t * | dlnode_ptr | ) |
Gets the element from the dlnode.
◆ wlmtk_element_get_dimensions()
|
inlinestatic |
Gets the dimensions of the element in pixels, relative to the position.
- Parameters
-
element_ptr left_ptr Leftmost position. May be NULL. top_ptr Topmost position. May be NULL. right_ptr Rightmost position. Ma be NULL. bottom_ptr Bottommost position. May be NULL.
◆ wlmtk_element_get_dimensions_box()
|
inlinestatic |
Gets the element's dimensions in pixel as wlr_box, relative to the position.
- Parameters
-
element_ptr
- Returns
- A struct wlr_box that specifies the top-left corner of the element relative to it's position, and the element's total width and height.
◆ wlmtk_element_get_position()
| void wlmtk_element_get_position | ( | wlmtk_element_t * | element_ptr, |
| int * | x_ptr, | ||
| int * | y_ptr | ||
| ) |
Returns the position of the element.
- Parameters
-
element_ptr x_ptr Optional, may be NULL. y_ptr Optional, may be NULL.
◆ wlmtk_element_init()
| bool wlmtk_element_init | ( | wlmtk_element_t * | element_ptr | ) |
Initializes the element.
- Parameters
-
element_ptr
- Returns
- true on success.
◆ wlmtk_element_keyboard_blur()
|
inlinestatic |
◆ wlmtk_element_keyboard_event()
|
inlinestatic |
◆ wlmtk_element_keyboard_sym()
|
inlinestatic |
◆ wlmtk_element_pointer_axis()
| bool wlmtk_element_pointer_axis | ( | wlmtk_element_t * | element_ptr, |
| struct wlr_pointer_axis_event * | wlr_pointer_axis_event_ptr | ||
| ) |
Processes the axis event. Calls wlmtk_element_vmt_t::pointer_axis.
- Parameters
-
element_ptr wlr_pointer_axis_event_ptr
- Returns
- true if the axis event was consumed.
◆ wlmtk_element_pointer_blur()
| void wlmtk_element_pointer_blur | ( | wlmtk_element_t * | element_ptr | ) |
Informs the element that it does not (or no longer) have pointer focus.
Raises wlmtk_element_events_t::pointer_leave, if it had pointer focus, and calls wlmtk_element_pointer_blur on the parent (if available).
- Parameters
-
element_ptr
◆ wlmtk_element_pointer_button()
| bool wlmtk_element_pointer_button | ( | wlmtk_element_t * | element_ptr, |
| const wlmtk_button_event_t * | button_event_ptr | ||
| ) |
Processes the button event. Calls wlmtk_element_vmt_t::pointer_button.
- Parameters
-
element_ptr button_event_ptr
- Returns
- true if the button event was consumed.
◆ wlmtk_element_pointer_focus()
| bool wlmtk_element_pointer_focus | ( | wlmtk_element_t * | element_ptr, |
| wlmtk_pointer_motion_event_t * | motion_event_ptr | ||
| ) |
Sets pointer focus for the element.
If not focussed already: Request pointer focus from the parent through wlmtk_container_request_pointer_focus. If that succeeds, will raise wlmtk_element_events_t::pointer_enter.
- Parameters
-
element_ptr motion_event_ptr
- Returns
- true if the element obtained focus.
◆ wlmtk_element_pointer_grab_cancel()
| void wlmtk_element_pointer_grab_cancel | ( | wlmtk_element_t * | element_ptr | ) |
Cancels pointer grab. Calls wlmtk_element_vmt_t::pointer_grab_cancel.
- Parameters
-
element_ptr
◆ wlmtk_element_pointer_motion()
| bool wlmtk_element_pointer_motion | ( | wlmtk_element_t * | element_ptr, |
| wlmtk_pointer_motion_event_t * | pointer_motion_ptr | ||
| ) |
Moves the pointer to the new position.
Calls wlmtk_element_vmt_t::pointer_accepts_motion, if the element is visible. Triggers wlmtk_element_events_t::pointer_enter or wlmtk_element_events_t::pointer_leave if the motion is accepted.
- Returns
- true if the element is visible and the motion is within the element's "pointer focus area", ie. in the area it accepts pointer events.
◆ wlmtk_element_set_parent_container()
| void wlmtk_element_set_parent_container | ( | wlmtk_element_t * | element_ptr, |
| wlmtk_container_t * | parent_container_ptr | ||
| ) |
Sets the parent container for the element.
Will call wlmtk_element_attach_to_scene_graph to align the scene graph with the new (or deleted) parent.
Private: Should only be called by wlmtk_container_add_element, respectively wlmtk_container_remove_element ("friends").
- Parameters
-
element_ptr parent_container_ptr Pointer to the parent container, or NULL if the parent should be cleared.
◆ wlmtk_element_set_position()
| void wlmtk_element_set_position | ( | wlmtk_element_t * | element_ptr, |
| int | x, | ||
| int | y | ||
| ) |
Sets the position of the element.
- Parameters
-
element_ptr x y
◆ wlmtk_element_set_visible()
| void wlmtk_element_set_visible | ( | wlmtk_element_t * | element_ptr, |
| bool | visible | ||
| ) |
Sets the element's visibility.
- Parameters
-
element_ptr visible
◆ wlmtk_fake_element_create()
| wlmtk_fake_element_t * wlmtk_fake_element_create | ( | void | ) |
Ctor for the fake element, useful for tests.
- Returns
- A pointer to wlmtk_fake_element_t. Should be destroyed via wlmtk_element_destroy, by passing the pointer to wlmtk_fake_element_t::element as argument.
◆ wlmtk_fake_element_grab_keyboard()
| void wlmtk_fake_element_grab_keyboard | ( | wlmtk_fake_element_t * | fake_element_ptr | ) |
Sets wlmtk_fake_element_t::has_keyboard_focus and calls wlmtk_container_set_keyboard_focus_element for the parent (if set).
- Parameters
-
fake_element_ptr
Variable Documentation
◆ wlmtk_element_test_cases
|
extern |
Unit tests for the element.
