container.h File Reference
#include <stdbool.h>
#include <wayland-server-core.h>
#include "libbase/libbase.h"
#include "element.h"
#include "input.h"

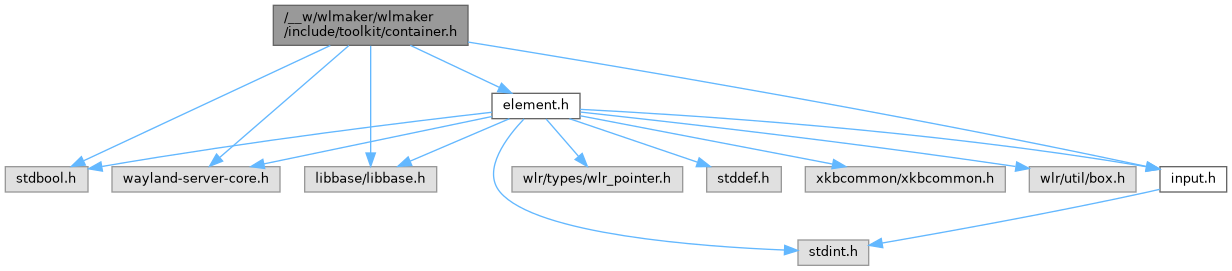

Include dependency graph for container.h:

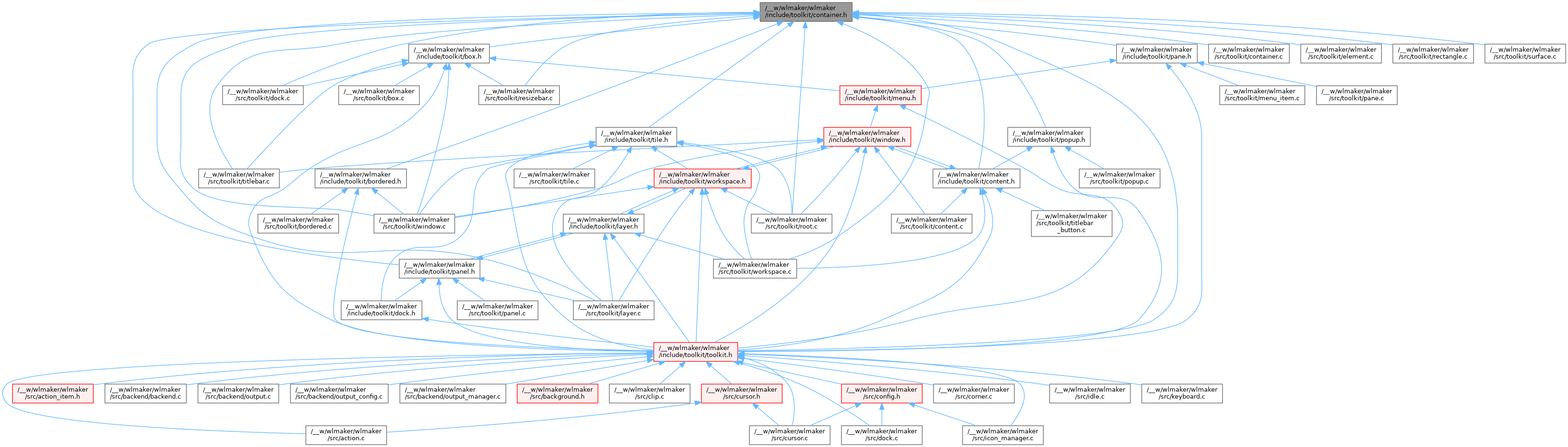

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  _wlmtk_container_vmt_t

struct  _wlmtk_container_t


Typedefs

typedef struct _wlmtk_container_t wlmtk_container_t

typedef struct _wlmtk_container_vmt_t wlmtk_container_vmt_t


Functions

bool wlmtk_container_init (wlmtk_container_t *container_ptr)

wlmtk_container_vmt_t wlmtk_container_extend (wlmtk_container_t *container_ptr, const wlmtk_container_vmt_t *container_vmt_ptr)

bool wlmtk_container_init_attached (wlmtk_container_t *container_ptr, struct wlr_scene_tree *root_wlr_scene_tree_ptr)

void wlmtk_container_fini (wlmtk_container_t *container_ptr)

void wlmtk_container_add_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)

void wlmtk_container_add_element_atop (wlmtk_container_t *container_ptr, wlmtk_element_t *reference_element_ptr, wlmtk_element_t *element_ptr)

void wlmtk_container_remove_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)

void wlmtk_container_raise_element_to_top (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)

bool wlmtk_container_request_pointer_focus (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)

void wlmtk_container_pointer_grab (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)

void wlmtk_container_pointer_grab_release (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)

void wlmtk_container_set_keyboard_focus_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr, bool enabled)

void wlmtk_container_update_layout_and_pointer_focus (wlmtk_container_t *container_ptr)

struct wlr_scene_tree * wlmtk_container_wlr_scene_tree (wlmtk_container_t *container_ptr)

wlmtk_container_twlmtk_container_create_fake_parent (void)

void wlmtk_container_destroy_fake_parent (wlmtk_container_t *container_ptr)


Variables

const bs_test_case_t wlmtk_container_test_cases []


Detailed Description

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

◆ wlmtk_container_t

Forward declaration: Container.

◆ wlmtk_container_vmt_t

Forward declaration: Container virtual method table.

Function Documentation

◆ wlmtk_container_add_element()

void wlmtk_container_add_element ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr
)

Adds element_ptr to the container.

Requires that element_ptr is not added to a container yet. The element will be added at the top of the container.

Parameters
container_ptr
element_ptr

◆ wlmtk_container_add_element_atop()

void wlmtk_container_add_element_atop ( wlmtk_container_t container_ptr,
wlmtk_element_t reference_element_ptr,
wlmtk_element_t element_ptr
)

Adds element_ptr to the container atop the reference's position.

If reference_element_ptr is NULL, the element will be added at the back.

Parameters
container_ptr
reference_element_ptrMust be an element of this container.
element_ptr

◆ wlmtk_container_create_fake_parent()

wlmtk_container_t * wlmtk_container_create_fake_parent ( void  )

Constructor for a fake container with a scene tree.

◆ wlmtk_container_destroy_fake_parent()

void wlmtk_container_destroy_fake_parent ( wlmtk_container_t container_ptr)

Destructor for that fake container.

◆ wlmtk_container_extend()

wlmtk_container_vmt_t wlmtk_container_extend ( wlmtk_container_t container_ptr,
const wlmtk_container_vmt_t container_vmt_ptr
)

Extends the container's virtual methods.

Parameters
container_ptr
container_vmt_ptr
Returns
The previous virtual method table.

◆ wlmtk_container_fini()

void wlmtk_container_fini ( wlmtk_container_t container_ptr)

Un-initializes the container.

Any element still in elements will be destroyed.

Parameters
container_ptr

◆ wlmtk_container_init()

bool wlmtk_container_init ( wlmtk_container_t container_ptr)

Initializes the container with the provided virtual method table.

Parameters
container_ptr
Returns
true on success.

◆ wlmtk_container_init_attached()

bool wlmtk_container_init_attached ( wlmtk_container_t container_ptr,
struct wlr_scene_tree *  root_wlr_scene_tree_ptr
)

Initializes the container, and attach to WLR sene graph.

Parameters
container_ptr
root_wlr_scene_tree_ptr
Returns
true on success.

◆ wlmtk_container_pointer_grab()

void wlmtk_container_pointer_grab ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr
)

Requests a pointer grab from container_ptr for element_ptr.

Will cancel any existing grab held by elements other than element_ptr, and propagates the grab to the parent container. When a pointer grab is held, pointer events will be routed exclusively to the element holding the pointer grab.

Parameters
container_ptr
element_ptrMust be a child of this container.

◆ wlmtk_container_pointer_grab_release()

void wlmtk_container_pointer_grab_release ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr
)

Releases a pointer grab in container_ptr held by element_ptr.

If the grab is held by an element other than element_ptr, nothing is done. Otherwise, the pointer grab is released, and the release is propagated to the parent container.

Parameters
container_ptr
element_ptrMust be a child of this container.

◆ wlmtk_container_raise_element_to_top()

void wlmtk_container_raise_element_to_top ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr
)

Places element_ptr at the top (head) of the container.

Expects that container_ptr is element_ptr's parent container.

Parameters
container_ptr
element_ptr

◆ wlmtk_container_remove_element()

void wlmtk_container_remove_element ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr
)

Removes element_ptr from the container.

Expects that container_ptr is element_ptr's parent container. In case element_ptr holds a pointer grab, wlmtk_element_pointer_grab_cancel will be called.

Parameters
container_ptr
element_ptr

◆ wlmtk_container_request_pointer_focus()

bool wlmtk_container_request_pointer_focus ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr,
wlmtk_pointer_motion_event_t motion_event_ptr
)

Requests that element_ptr be given pointer focus from container_ptr.

Parameters
container_ptr
element_ptrMust be in wlmtk_container_t::elements.
motion_event_ptrThe motion event (in particular: pointer) that led to request pointer focus. FIXME -> Must change to pointer!
Returns
false if the request fails.

◆ wlmtk_container_set_keyboard_focus_element()

void wlmtk_container_set_keyboard_focus_element ( wlmtk_container_t container_ptr,
wlmtk_element_t element_ptr,
bool  enabled
)

Sets or disables keyboard focus for element_ptr for the container.

If enabled, calls wlmtk_element_keyboard_blur for the element currently having keyboard focus, and updates wlmtk_container_t::keyboard_focus_element_ptr to element_ptr. Otherwise, evaluates whether the focus is currently held by element_ptr, and (if yes) clears this container's focus. Propagates the event to the container's parent.

Parameters
container_ptr
element_ptr
enabled

◆ wlmtk_container_update_layout_and_pointer_focus()

void wlmtk_container_update_layout_and_pointer_focus ( wlmtk_container_t container_ptr)

Updates the layout of the container, and recomputes pointer focus as needed.

Must be called if an element is added or removed, or if any of the child elements changes visibility or dimensions. Propagates to the parent container(s).

If needed: Trigger a poitner focus computation.

Parameters
container_ptr

◆ wlmtk_container_wlr_scene_tree()

struct wlr_scene_tree * wlmtk_container_wlr_scene_tree ( wlmtk_container_t container_ptr)

Returns the wlroots scene graph tree for this node.

Private: Should be called only by wlmtk_element_t.

Parameters
container_ptr
Returns
The scene tree, or NULL if not attached to a scene graph.

Variable Documentation

◆ wlmtk_container_test_cases

const bs_test_case_t wlmtk_container_test_cases[]
extern

Unit tests for the container.
