root.h File Reference

#include <libbase/libbase.h>
#include <stdbool.h>
#include <stdint.h>
#include <wayland-server-core.h>
#include <wlr/types/wlr_pointer.h>
#include "element.h"
#include "input.h"

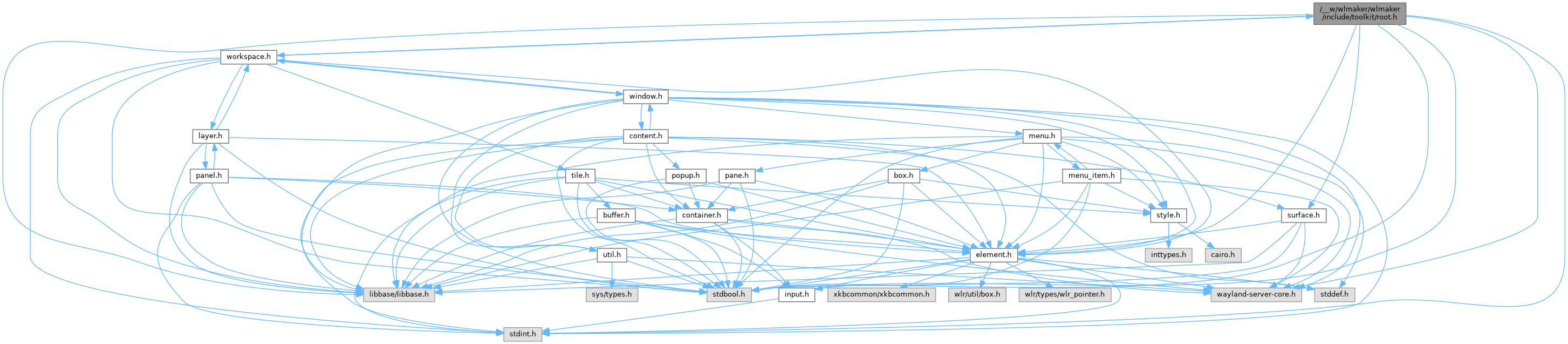

Include dependency graph for root.h:

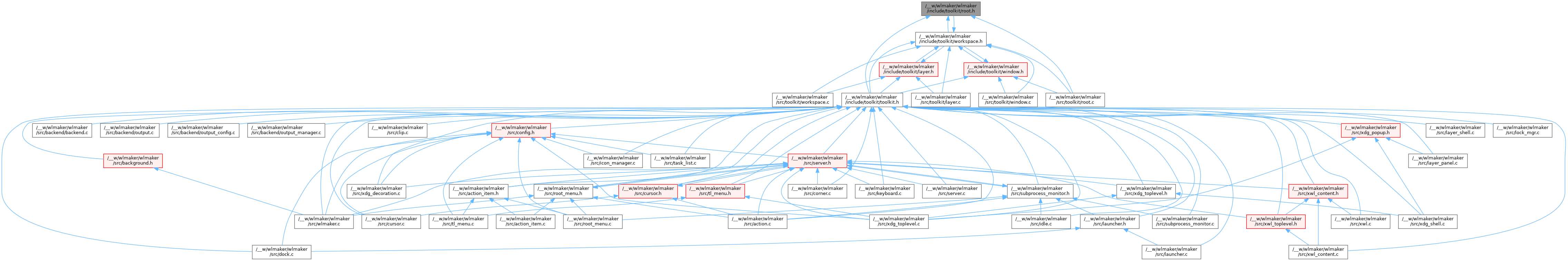

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	wlmtk_root_events_t

Typedefs
typedef struct _wlmtk_root_t	wlmtk_root_t

Functions
wlmtk_root_t *	wlmtk_root_create (wlmtk_element_t *element_ptr, struct wlr_output_layout *wlr_output_layout_ptr)
void	wlmtk_root_destroy (wlmtk_root_t *root_ptr)
wlmtk_root_events_t *	wlmtk_root_events (wlmtk_root_t *root_ptr)
wlmtk_element_t *	wlmtk_root_element (wlmtk_root_t *root_ptr)
bool	wlmtk_root_pointer_motion (wlmtk_root_t *root_ptr, double x, double y, uint32_t time_msec, wlmtk_pointer_t *pointer_ptr)
bool	wlmtk_root_pointer_button (wlmtk_root_t *root_ptr, const struct wlr_pointer_button_event *event_ptr, uint32_t modifiers)
bool	wlmtk_root_pointer_axis (wlmtk_root_t *root_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)

Variables
const bs_test_set_t	wlmtk_root_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmtk_root_t

typedef struct _wlmtk_root_t wlmtk_root_t

Forward declaration: Root element wrapper.

Function Documentation

wlmtk_root_create()

wlmtk_root_t * wlmtk_root_create	(	wlmtk_element_t *	element_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr
	)

Creates the root element wrapper.

Parameters

element_ptr	The wrapped element.
wlr_output_layout_ptr	wlroots output layout to track output frames on.

Returns

Handle of the root wrapper or NULL on error.

wlmtk_root_destroy()

void wlmtk_root_destroy

(

wlmtk_root_t *

root_ptr

)

Destroys the root wrapper.

Parameters

root_ptr

Root wrapper handle.

wlmtk_root_element()

wlmtk_element_t * wlmtk_root_element

(

wlmtk_root_t *

root_ptr

)

Gets the wrapped element.

Parameters

root_ptr

Root wrapper handle.

Returns

Pointer to the wrapped wlmtk_element_t.

wlmtk_root_events()

wlmtk_root_events_t * wlmtk_root_events

(

wlmtk_root_t *

root_ptr

)

Gets the set of events available in root.

Parameters

root_ptr

Root wrapper handle.

Returns

Pointer to wlmtk_root_events_t.

wlmtk_root_pointer_axis()

bool wlmtk_root_pointer_axis	(	wlmtk_root_t *	root_ptr,
		struct wlr_pointer_axis_event *	wlr_pointer_axis_event_ptr
	)

Handles a pointer axis event.

Parameters

root_ptr	Root wrapper handle.
wlr_pointer_axis_event_ptr	wlroots axis event pointer.

Returns

Whether the axis event was consumed.

wlmtk_root_pointer_button()

bool wlmtk_root_pointer_button	(	wlmtk_root_t *	root_ptr,
		const struct wlr_pointer_button_event *	event_ptr,
		uint32_t	modifiers
	)

Handles a button event: Translates to button down/up/click/dblclick events.

Each button activity (button pressed or released) will directly trigger a corresponding BUTTON_DOWN or BUTTON_UP event. Depending on timing and motion, a "released" event may also triccer a CLICK, DOUBLE_CLICK or DRAG event. These events will be forwarded to the event currently having pointer focus.

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Implement DOUBLE_CLICK and DRAG events, and make it well tested.

Parameters

root_ptr	Root wrapper handle.
event_ptr	Wayland button event pointer.
modifiers	Keyboard modifiers state.

Returns

Whether the button event was consumed.

wlmtk_root_pointer_motion()

bool wlmtk_root_pointer_motion	(	wlmtk_root_t *	root_ptr,
		double	x,
		double	y,
		uint32_t	time_msec,
		wlmtk_pointer_t *	pointer_ptr
	)

Handles a pointer motion event.

Parameters

root_ptr	Root wrapper handle.
x	X coordinate of the motion event.
y	Y coordinate of the motion event.
time_msec	Timestamp of the motion event.
pointer_ptr	Pointer state reference.

Returns

Whether there was an element under the pointer.

Variable Documentation

wlmtk_root_test_set

const bs_test_set_t wlmtk_root_test_set

extern

Unit test cases.
