layer.h File Reference

#include <stdbool.h>
#include <libbase/libbase.h>
#include "element.h"
#include "panel.h"
#include "workspace.h"

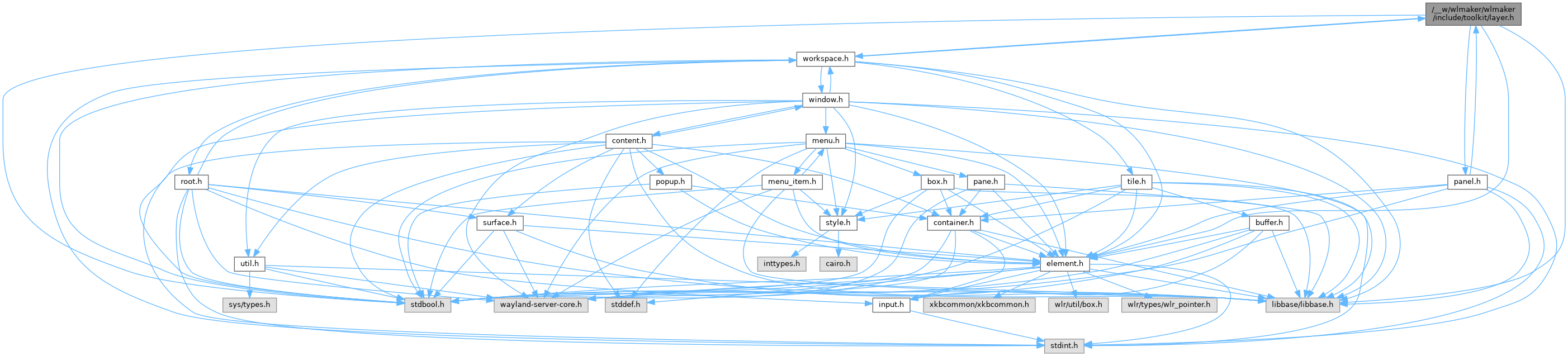

Include dependency graph for layer.h:

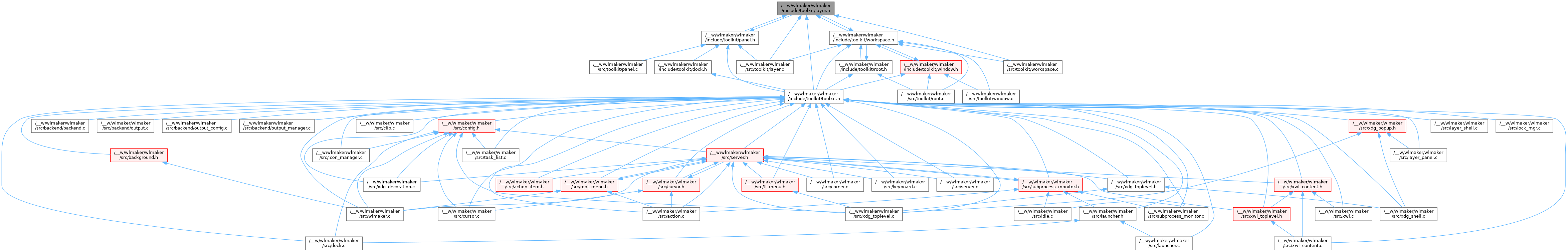

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct _wlmtk_layer_t	wlmtk_layer_t
typedef struct _wlmtk_layer_output_t	wlmtk_layer_output_t

Functions
wlmtk_layer_t *	wlmtk_layer_create (struct wlr_output_layout *wlr_output_layout_ptr)
void	wlmtk_layer_destroy (wlmtk_layer_t *layer_ptr)
wlmtk_element_t *	wlmtk_layer_element (wlmtk_layer_t *layer_ptr)
bool	wlmtk_layer_add_panel (wlmtk_layer_t *layer_ptr, wlmtk_panel_t *panel_ptr, struct wlr_output *wlr_output_ptr)
void	wlmtk_layer_remove_panel (wlmtk_layer_t *layer_ptr, wlmtk_panel_t *panel_ptr)
void	wlmtk_layer_reconfigure (wlmtk_layer_t *layer_ptr)
void	wlmtk_layer_output_reconfigure (wlmtk_layer_output_t *layer_output_ptr)
void	wlmtk_layer_set_workspace (wlmtk_layer_t *layer_ptr, wlmtk_workspace_t *workspace_ptr)

Variables
const bs_test_case_t	wlmtk_layer_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmtk_layer_output_t

typedef struct _wlmtk_layer_output_t wlmtk_layer_output_t

Forward declaration: Layer state.

wlmtk_layer_t

typedef struct _wlmtk_layer_t wlmtk_layer_t

Forward declaration: Layer state.

Function Documentation

wlmtk_layer_add_panel()

bool wlmtk_layer_add_panel	(	wlmtk_layer_t *	layer_ptr,
		wlmtk_panel_t *	panel_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Adds the panel to the output within the specified layer. This will trigger an update to the layer's layout, and a call to request_size of each panel of that output.

Parameters

layer_ptr
panel_ptr
wlr_output_ptr

wlmtk_layer_create()

wlmtk_layer_t * wlmtk_layer_create

(

struct wlr_output_layout *

wlr_output_layout_ptr

)

Creates a layer. Layers contain panels, such as layer shells.

Parameters

wlr_output_layout_ptr

The output layout.

Returns

Pointer to the layer handle or NULL on error.

wlmtk_layer_destroy()

void wlmtk_layer_destroy

(

wlmtk_layer_t *

layer_ptr

)

Destroys the layer.

Parameters

layer_ptr

wlmtk_layer_element()

wlmtk_element_t * wlmtk_layer_element

(

wlmtk_layer_t *

layer_ptr

)

Returns

Pointer to super wlmtk_element_t of the layer.

wlmtk_layer_output_reconfigure()

void wlmtk_layer_output_reconfigure

(

wlmtk_layer_output_t *

layer_output_ptr

)

Calls wlmtk_panel_compute_dimensions for each contained panel.

The Wayland protocol spells it is 'undefined' how panels (layer shells) are stacked and configured within a layer. For wlmaker, we'll configure the panels in sequence as they were added (found in the container, back to front).

Parameters

layer_output_ptr

wlmtk_layer_reconfigure()

void wlmtk_layer_reconfigure

(

wlmtk_layer_t *

layer_ptr

)

Calls wlmtk_panel_compute_dimensions for each contained panel.

The Wayland protocol spells it is 'undefined' how panels (layer shells) are stacked and configured within a layer. For wlmaker, we'll configure the panels in sequence as they were added (found in the container, back to front).

Parameters

layer_ptr

wlmtk_layer_remove_panel()

void wlmtk_layer_remove_panel	(	wlmtk_layer_t *	layer_ptr,
		wlmtk_panel_t *	panel_ptr
	)

Removes the panel from the layer.

Parameters

layer_ptr
panel_ptr

wlmtk_layer_set_workspace()

void wlmtk_layer_set_workspace	(	wlmtk_layer_t *	layer_ptr,
		wlmtk_workspace_t *	workspace_ptr
	)

Sets the parent workspace for the layer.

Should only be called from wlmtk_workspace_t methods.

Parameters

layer_ptr
workspace_ptr	NULL to clear the workspace reference.

Variable Documentation

wlmtk_layer_test_cases

const bs_test_case_t wlmtk_layer_test_cases[]

extern

Layer unit test.
