dock.c File Reference

#include "dock.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdlib.h>
#include "box.h"
#include "container.h"

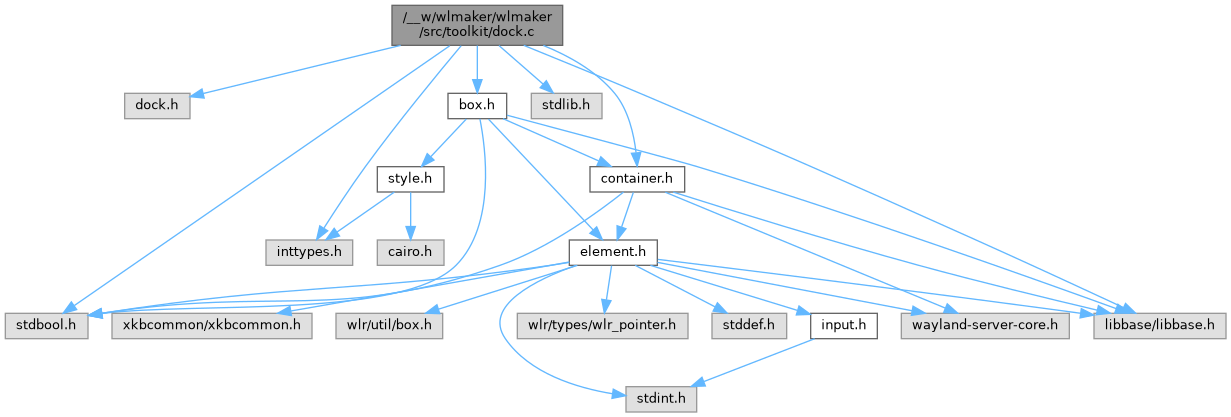

Include dependency graph for dock.c:

Classes
struct	_wlmtk_dock_t

Functions
static uint32_t	_wlmtk_dock_panel_request_size (wlmtk_panel_t *panel_ptr, int width, int height)
static void	_wlmtk_dock_element_layout (wlmtk_element_t *element_ptr)
static wlmtk_box_orientation_t	_wlmtk_dock_orientation (wlmtk_dock_t *dock_ptr)
static bool	_wlmtk_dock_positioning (wlmtk_dock_t *dock_ptr, wlmtk_panel_positioning_t *panel_positioning_ptr)
static bool	_wlmtk_dock_tile_set_style (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmtk_dock_tile_destroy (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
wlmtk_dock_t *	wlmtk_dock_create (const wlmtk_dock_positioning_t *dock_positioning_ptr, const struct wlmtk_dock_style *style_ptr)
void	wlmtk_dock_destroy (wlmtk_dock_t *dock_ptr)
bool	wlmtk_dock_set_style (wlmtk_dock_t *dock_ptr, const struct wlmtk_dock_style *style_ptr, const struct wlmtk_tile_style *tile_style_ptr)
void	wlmtk_dock_add_tile (wlmtk_dock_t *dock_ptr, wlmtk_tile_t *tile_ptr)
void	wlmtk_dock_remove_tile (wlmtk_dock_t *dock_ptr, wlmtk_tile_t *tile_ptr)
wlmtk_panel_t *	wlmtk_dock_panel (wlmtk_dock_t *dock_ptr)
wlmtk_element_t *	wlmtk_dock_element (wlmtk_dock_t *dock_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)

Variables
const bspl_desc_t	wlmtk_dock_style_desc []
static const wlmtk_panel_vmt_t	_wlmtk_dock_panel_vmt
static const wlmtk_element_vmt_t	_wlmtk_dock_element_vmt
static const bs_test_case_t	_wlmtk_dock_test_cases []
const bs_test_set_t	wlmtk_dock_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_dock_element_layout()

void _wlmtk_dock_element_layout ( wlmtk_element_t *  element_ptr )

static

Redraw the dock. We also (re)request size, ie. the positioning.

_wlmtk_dock_orientation()

wlmtk_box_orientation_t _wlmtk_dock_orientation ( wlmtk_dock_t *  dock_ptr )

static

Derives the box' orientation for the dock.

_wlmtk_dock_panel_request_size()

uint32_t _wlmtk_dock_panel_request_size ( wlmtk_panel_t *  panel_ptr, int  width, int  height  )

static

Recomputes the dock's size – and also commits it.

Parameters

panel_ptr
width
height

Returns

0

_wlmtk_dock_positioning()

bool _wlmtk_dock_positioning ( wlmtk_dock_t *  dock_ptr, wlmtk_panel_positioning_t *  panel_positioning_ptr  )

static

Fills the panel positioning parameters from the dock's.

_wlmtk_dock_tile_destroy()

void _wlmtk_dock_tile_destroy ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Iterator to bs_dllist_for_each(): Removes & destroys the tile at node.

_wlmtk_dock_tile_set_style()

bool _wlmtk_dock_tile_set_style ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Iterator to bs_dllist_all(): Sets style for a tile in the iterator.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Exercises ctor and dtor.

wlmtk_dock_add_tile()

void wlmtk_dock_add_tile	(	wlmtk_dock_t *	dock_ptr,
		wlmtk_tile_t *	tile_ptr
	)

Adds the tile to the dock.

Parameters

dock_ptr
tile_ptr

wlmtk_dock_create()

wlmtk_dock_t * wlmtk_dock_create	(	const wlmtk_dock_positioning_t *	dock_positioning_ptr,
		const struct wlmtk_dock_style *	style_ptr
	)

Creates a dock. A dock contains icons, launchers and the likes.

The dock is an implementation of a wlmtk_panel_t.

Parameters

dock_positioning_ptr
style_ptr

Returns

The dock handle, or NULL on error. Must be destroyed calling wlmtk_dock_destroy.

wlmtk_dock_destroy()

void wlmtk_dock_destroy

(

wlmtk_dock_t *

dock_ptr

)

Destroys the dock.

Parameters

dock_ptr

wlmtk_dock_element()

wlmtk_element_t * wlmtk_dock_element

(

wlmtk_dock_t *

dock_ptr

)

Returns

Pointer to the superclass wlmtk_element_t of dock_ptr.

wlmtk_dock_panel()

wlmtk_panel_t * wlmtk_dock_panel

(

wlmtk_dock_t *

dock_ptr

)

Returns

Pointer to the superclass wlmtk_panel_t of dock_ptr.

wlmtk_dock_remove_tile()

void wlmtk_dock_remove_tile	(	wlmtk_dock_t *	dock_ptr,
		wlmtk_tile_t *	tile_ptr
	)

Removes the tile from the dock.

Parameters

dock_ptr
tile_ptr

wlmtk_dock_set_style()

bool wlmtk_dock_set_style	(	wlmtk_dock_t *	dock_ptr,
		const struct wlmtk_dock_style *	style_ptr,
		const struct wlmtk_tile_style *	tile_style_ptr
	)

Sets the style for the dock, including all contained tiles.

Parameters

dock_ptr
style_ptr
tile_style_ptr

Returns

true on success.

Variable Documentation

_wlmtk_dock_element_vmt

const wlmtk_element_vmt_t _wlmtk_dock_element_vmt

static

Initial value:

= {
    .layout = _wlmtk_dock_element_layout
}

Virtual method table of the panel's element.

_wlmtk_dock_panel_vmt

const wlmtk_panel_vmt_t _wlmtk_dock_panel_vmt

static

Initial value:

= {
    .request_size = _wlmtk_dock_panel_request_size
}

Virtual method table of the panel.

_wlmtk_dock_test_cases

const bs_test_case_t _wlmtk_dock_test_cases[]

static

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },

}

Test cases

wlmtk_dock_style_desc

const bspl_desc_t wlmtk_dock_style_desc[]

Initial value:

= {
    BSPL_DESC_DICT(
        "Margin", true, struct wlmtk_dock_style, margin, margin,
        wlmtk_style_margin_desc),

}

Plist decoding descriptor of the dock's style.

wlmtk_dock_test_set

const bs_test_set_t wlmtk_dock_test_set

Initial value:

= BS_TEST_SET(
    true, "dock", _wlmtk_dock_test_cases)

Unit tests for wlmtk_dock_t.
