tile.h File Reference

#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdint.h>
#include "buffer.h"
#include "container.h"
#include "element.h"
#include "style.h"

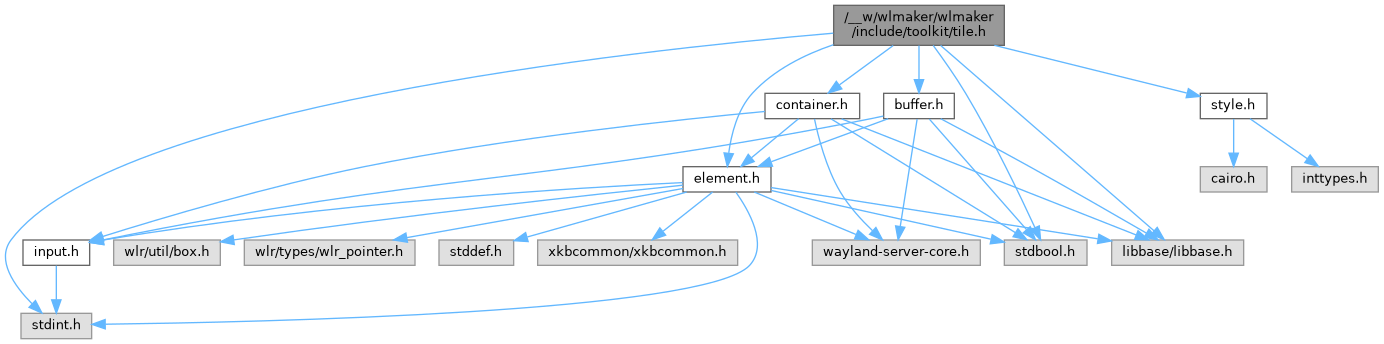

Include dependency graph for tile.h:

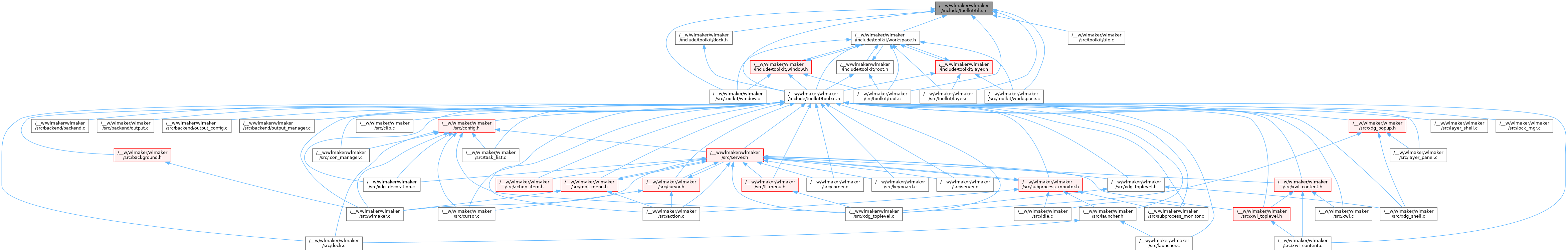

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	wlmtk_tile_style
struct	_wlmtk_tile_vmt_t
struct	_wlmtk_tile_t

Typedefs
typedef struct _wlmtk_tile_t	wlmtk_tile_t
typedef struct _wlmtk_tile_vmt_t	wlmtk_tile_vmt_t

Functions
bool	wlmtk_tile_init (wlmtk_tile_t *tile_ptr, const struct wlmtk_tile_style *style_ptr)
wlmtk_tile_vmt_t	wlmtk_tile_extend (wlmtk_tile_t *tile_ptr, const wlmtk_tile_vmt_t *tile_vmt_ptr)
void	wlmtk_tile_fini (wlmtk_tile_t *tile_ptr)
bool	wlmtk_tile_set_style (wlmtk_tile_t *tile_ptr, const struct wlmtk_tile_style *style_ptr)
bool	wlmtk_tile_set_background_buffer (wlmtk_tile_t *tile_ptr, struct wlr_buffer *wlr_buffer_ptr)
void	wlmtk_tile_set_content (wlmtk_tile_t *tile_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_tile_set_overlay (wlmtk_tile_t *tile_ptr, wlmtk_element_t *element_ptr)
wlmtk_element_t *	wlmtk_tile_element (wlmtk_tile_t *tile_ptr)
wlmtk_tile_t *	wlmtk_tile_from_dlnode (bs_dllist_node_t *dlnode_ptr)
bs_dllist_node_t *	wlmtk_dlnode_from_tile (wlmtk_tile_t *tile_ptr)

Variables
const bspl_desc_t	wlmtk_tile_style_desc []
const bs_test_set_t	wlmtk_tile_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmtk_tile_t

typedef struct _wlmtk_tile_t wlmtk_tile_t

Forward declaration: State of a tile.

wlmtk_tile_vmt_t

typedef struct _wlmtk_tile_vmt_t wlmtk_tile_vmt_t

Forward declaration: Tile virtual method table.

Function Documentation

wlmtk_dlnode_from_tile()

bs_dllist_node_t * wlmtk_dlnode_from_tile

(

wlmtk_tile_t *

tile_ptr

)

Returns

wlmtk_tile_t::dlnode from tile_ptr.

wlmtk_tile_element()

wlmtk_element_t * wlmtk_tile_element

(

wlmtk_tile_t *

tile_ptr

)

Returns

the superclass' wlmtk_element_t of tile_ptr.

wlmtk_tile_extend()

wlmtk_tile_vmt_t wlmtk_tile_extend	(	wlmtk_tile_t *	tile_ptr,
		const wlmtk_tile_vmt_t *	tile_vmt_ptr
	)

Extends the tile's virtual methods.

Parameters

tile_ptr
tile_vmt_ptr

Returns

The previous virtual method table.

wlmtk_tile_fini()

void wlmtk_tile_fini

(

wlmtk_tile_t *

tile_ptr

)

Un-initializes the tile.

Parameters

tile_ptr

wlmtk_tile_from_dlnode()

wlmtk_tile_t * wlmtk_tile_from_dlnode

(

bs_dllist_node_t *

dlnode_ptr

)

Returns

The wlmtk_tile_t for dlnode_ptr.

wlmtk_tile_init()

bool wlmtk_tile_init	(	wlmtk_tile_t *	tile_ptr,
		const struct wlmtk_tile_style *	style_ptr
	)

Initializes the tile.

Parameters

tile_ptr
style_ptr

Returns

true on success.

wlmtk_tile_set_background_buffer()

bool wlmtk_tile_set_background_buffer	(	wlmtk_tile_t *	tile_ptr,
		struct wlr_buffer *	wlr_buffer_ptr
	)

Sets (overwrites) the default tile's background buffer.

This permits specific tiles, eg. a Dock Clip to include active elements in the background, or change the bezel or texture.

Parameters

tile_ptr
wlr_buffer_ptr	Points to a struct wlr_buffer. The tile will add a buffer lock, so the caller may safely drop or unlock the buffer. The buffer must match the tile's size.

Returns

false if the buffer did not match the tile size.

wlmtk_tile_set_content()

void wlmtk_tile_set_content	(	wlmtk_tile_t *	tile_ptr,
		wlmtk_element_t *	element_ptr
	)

Sets element_ptr as the content of tile_ptr.

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Flesh out the behaviour – permit only 1 content? Does the tile claim ownerwhip? How to reset the content?

Parameters

tile_ptr
element_ptr

wlmtk_tile_set_overlay()

void wlmtk_tile_set_overlay	(	wlmtk_tile_t *	tile_ptr,
		wlmtk_element_t *	element_ptr
	)

Sets element_ptr as the overlay of tile_ptr.

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Flesh out the behaviour – permit only 1 overlay? Does the tile claim ownerwhip? How to reset the overlay?

Parameters

tile_ptr
element_ptr

wlmtk_tile_set_style()

bool wlmtk_tile_set_style	(	wlmtk_tile_t *	tile_ptr,
		const struct wlmtk_tile_style *	style_ptr
	)

Updates the style for the tile.

Parameters

tile_ptr
style_ptr

Returns

true on success.

Variable Documentation

wlmtk_tile_style_desc

const bspl_desc_t wlmtk_tile_style_desc[]

extern

Plist decoding descriptor of a tile style.

wlmtk_tile_test_set

const bs_test_set_t wlmtk_tile_test_set

extern

Unit test cases for wlmtk_tile_t.
