dock.c File Reference

#include "dock.h"
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-util.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/util/edges.h>
#include "backend/backend.h"
#include "backend/output_config.h"
#include "config.h"
#include "default_state.h"
#include "launcher.h"
#include "toolkit/toolkit.h"

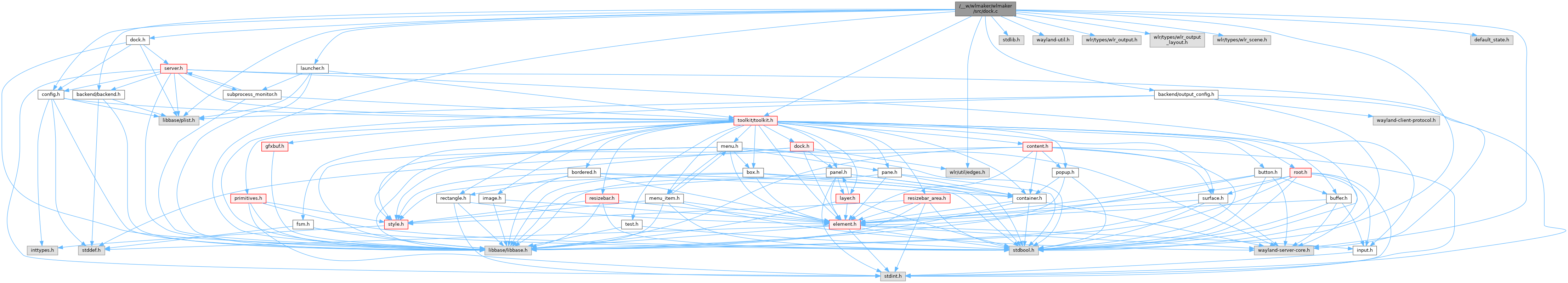

Include dependency graph for dock.c:

Classes
struct	_wlmaker_dock_t
struct	parse_args

Functions
static bool	_wlmaker_dock_decode_launchers (bspl_object_t *object_ptr, void *dest_ptr)
static void	_wlmaker_dock_handle_workspace_changed (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_dock_handle_output_layout_change (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_dock_t *	wlmaker_dock_create (wlmaker_server_t *server_ptr, bspl_dict_t *state_dict_ptr, const wlmaker_config_style_t *style_ptr)
void	wlmaker_dock_destroy (wlmaker_dock_t *dock_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)

Variables
static const bspl_enum_desc_t	_wlmaker_dock_edges []
const bspl_desc_t	_wlmaker_dock_desc []
const bs_test_case_t	wlmaker_dock_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_dock_decode_launchers()

bool _wlmaker_dock_decode_launchers ( bspl_object_t *  object_ptr, void *  dest_ptr  )

static

Decoder for the "Launchers" array. Currently just stores a reference.

_wlmaker_dock_handle_output_layout_change()

void _wlmaker_dock_handle_output_layout_change ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles when output layout changes; Re-computes the output to attach.

_wlmaker_dock_handle_workspace_changed()

void _wlmaker_dock_handle_workspace_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Re-attaches the dock to the new "current" workspace.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Tests ctor and dtor; to help fix leaks.

wlmaker_dock_create()

wlmaker_dock_t * wlmaker_dock_create	(	wlmaker_server_t *	server_ptr,
		bspl_dict_t *	state_dict_ptr,
		const wlmaker_config_style_t *	style_ptr
	)

Creates the Dock handle. Needs the server to be up with workspaces running.

Parameters

server_ptr
state_dict_ptr
style_ptr

Returns

Pointer to the Dock handle, or NULL on error.

wlmaker_dock_destroy()

void wlmaker_dock_destroy

(

wlmaker_dock_t *

dock_ptr

)

Destroys the Dock handle.

Parameters

dock_ptr

Variable Documentation

_wlmaker_dock_desc

const bspl_desc_t _wlmaker_dock_desc[]

Initial value:

= {
    BSPL_DESC_ENUM("Edge", true, parse_args,
                   positioning.edge, positioning.edge,
                   WLR_EDGE_NONE, _wlmaker_dock_edges),
    BSPL_DESC_ENUM("Anchor", true, parse_args,
                   positioning.anchor, positioning.anchor,
                   WLR_EDGE_NONE, _wlmaker_dock_edges),
    BSPL_DESC_CUSTOM("Launchers", true, parse_args, launchers_array_ptr,
                     launchers_array_ptr,
                     _wlmaker_dock_decode_launchers,
                     NULL,
                     NULL),
    BSPL_DESC_SENTINEL(),
}

Descriptor for the dock's plist.

_wlmaker_dock_edges

const bspl_enum_desc_t _wlmaker_dock_edges[]

static

Initial value:

= {
    BSPL_ENUM("TOP", WLR_EDGE_TOP),
    BSPL_ENUM("BOTTOM", WLR_EDGE_BOTTOM),
    BSPL_ENUM("LEFT", WLR_EDGE_LEFT),
    BSPL_ENUM("RIGHT", WLR_EDGE_RIGHT),
    BSPL_ENUM_SENTINEL(),
}

Enum descriptor for enum wlr_edges.

wlmaker_dock_test_cases

const bs_test_case_t wlmaker_dock_test_cases[]

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 0, NULL, NULL }
}

Unit test cases.
