server.h File Reference

#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdint.h>
#include <wayland-server-core.h>
#include <xkbcommon/xkbcommon.h>
#include <wlr/backend.h>
#include <wlr/types/wlr_data_device.h>
#include <wlr/types/wlr_seat.h>
#include "backend/backend.h"
#include "config.h"
#include "corner.h"
#include "cursor.h"
#include "icon_manager.h"
#include "idle.h"
#include "layer_shell.h"
#include "lock_mgr.h"
#include "root_menu.h"
#include "subprocess_monitor.h"
#include "toolkit/toolkit.h"
#include "xdg_decoration.h"
#include "xdg_shell.h"
#include "xwl.h"

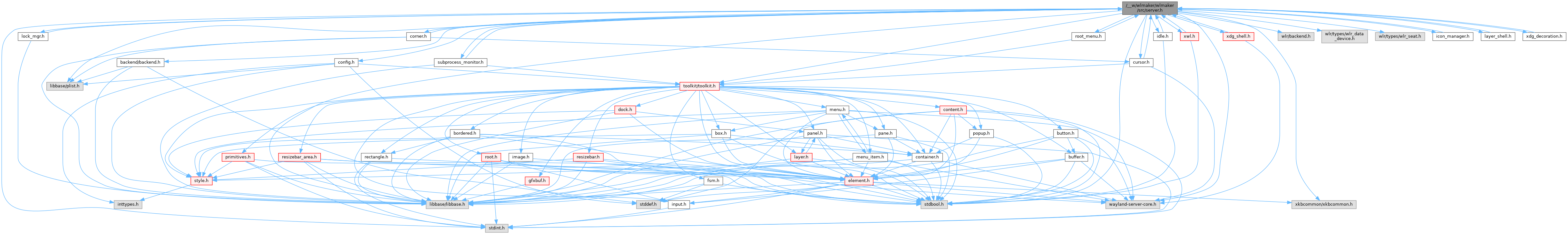

Include dependency graph for server.h:

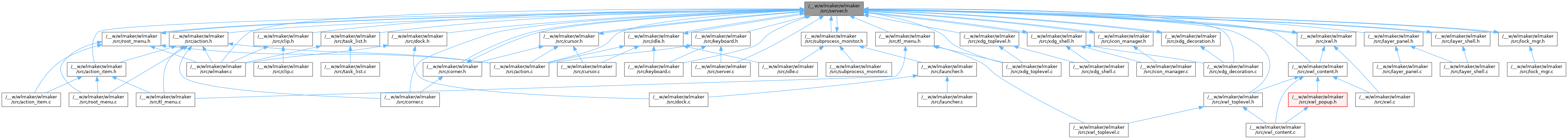

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	wlmaker_server_options_t
struct	_wlmaker_server_t
struct	_wlmaker_key_combo_t

Typedefs
typedef struct _wlmaker_server_t	wlmaker_server_t
typedef struct _wlmaker_key_combo_t	wlmaker_key_combo_t
typedef struct _wlmaker_key_binding_t	wlmaker_key_binding_t
typedef bool(*	wlmaker_keybinding_callback_t) (const wlmaker_key_combo_t *kc)

Functions
wlmaker_server_t *	wlmaker_server_create (bspl_dict_t *config_dict_ptr, const wlmaker_server_options_t *options_ptr)
void	wlmaker_server_destroy (wlmaker_server_t *server_ptr)
wlmaker_key_binding_t *	wlmaker_server_bind_key (wlmaker_server_t *server_ptr, const wlmaker_key_combo_t *key_combo_ptr, wlmaker_keybinding_callback_t callback)
void	wlmaker_server_unbind_key (wlmaker_server_t *server_ptr, wlmaker_key_binding_t *key_binding_ptr)
bool	wlmaker_keyboard_process_bindings (wlmaker_server_t *server_ptr, xkb_keysym_t keysym, uint32_t modifiers)
void	wlmaker_server_activate_task_list (wlmaker_server_t *server_ptr)
void	wlmaker_server_deactivate_task_list (wlmaker_server_t *server_ptr)
struct wlr_output *	wlmaker_server_get_output_at_cursor (wlmaker_server_t *server_ptr)

Variables
const uint32_t	wlmaker_modifier_default_mask
const bs_test_case_t	wlmaker_server_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmaker_key_binding_t

typedef struct _wlmaker_key_binding_t wlmaker_key_binding_t

Handle for a key binding.

wlmaker_key_combo_t

typedef struct _wlmaker_key_combo_t wlmaker_key_combo_t

A key combination.

wlmaker_keybinding_callback_t

typedef bool(* wlmaker_keybinding_callback_t) (const wlmaker_key_combo_t *kc)

Callback for a key binding.

Parameters

kc	The key combo that triggered the callback.

Returns

true if the key can be considered "consumed".

wlmaker_server_t

typedef struct _wlmaker_server_t wlmaker_server_t

A handle for a wlmaker server.

Function Documentation

wlmaker_keyboard_process_bindings()

bool wlmaker_keyboard_process_bindings	(	wlmaker_server_t *	server_ptr,
		xkb_keysym_t	keysym,
		uint32_t	modifiers
	)

Processes key bindings: Call back if a matching binding is found.

Parameters

server_ptr
keysym
modifiers

Returns

true if a binding was found AND the callback returned true.

wlmaker_server_activate_task_list()

void wlmaker_server_activate_task_list

(

wlmaker_server_t *

server_ptr

)

Activates the task list.

Parameters

server_ptr

wlmaker_server_bind_key()

wlmaker_key_binding_t * wlmaker_server_bind_key	(	wlmaker_server_t *	server_ptr,
		const wlmaker_key_combo_t *	key_combo_ptr,
		wlmaker_keybinding_callback_t	callback
	)

Binds a particular key to a callback.

Parameters

server_ptr
key_combo_ptr
callback

Returns

The key binding handle or NULL on error.

wlmaker_server_create()

wlmaker_server_t * wlmaker_server_create	(	bspl_dict_t *	config_dict_ptr,
		const wlmaker_server_options_t *	options_ptr
	)

Creates the server and initializes all needed sub-modules.

Parameters

config_dict_ptr	Configuration, as dictionary object. The server will keep a reference on it until destroyed.
options_ptr	Options for the server. The server expects the pointed area to outlive the server.

Returns

The server handle or NULL on failure. The handle must be freed by calling wlmaker_server_destroy().

wlmaker_server_deactivate_task_list()

void wlmaker_server_deactivate_task_list

(

wlmaker_server_t *

server_ptr

)

De-activates the task list.

Parameters

server_ptr

wlmaker_server_destroy()

void wlmaker_server_destroy

(

wlmaker_server_t *

server_ptr

)

Destroys the server handle, as created by wlmaker_server_create().

Parameters

server_ptr

wlmaker_server_get_output_at_cursor()

struct wlr_output * wlmaker_server_get_output_at_cursor

(

wlmaker_server_t *

server_ptr

)

Looks up which output serves the current cursor coordinates and returns that.

Parameters

server_ptr

Returns

Pointer to the output at the seat's cursor position.

wlmaker_server_unbind_key()

void wlmaker_server_unbind_key	(	wlmaker_server_t *	server_ptr,
		wlmaker_key_binding_t *	key_binding_ptr
	)

Releases a key binding.

See also

wlmaker_bind_key.

Parameters

server_ptr
key_binding_ptr

Variable Documentation

wlmaker_modifier_default_mask

const uint32_t wlmaker_modifier_default_mask

extern

All modifiers to use by default.

wlmaker_server_test_cases

const bs_test_case_t wlmaker_server_test_cases[]

extern

Unit test cases.

Test cases for the server.
