box.h File Reference

#include <stdbool.h>
#include "libbase/libbase.h"
#include "container.h"
#include "element.h"
#include "style.h"

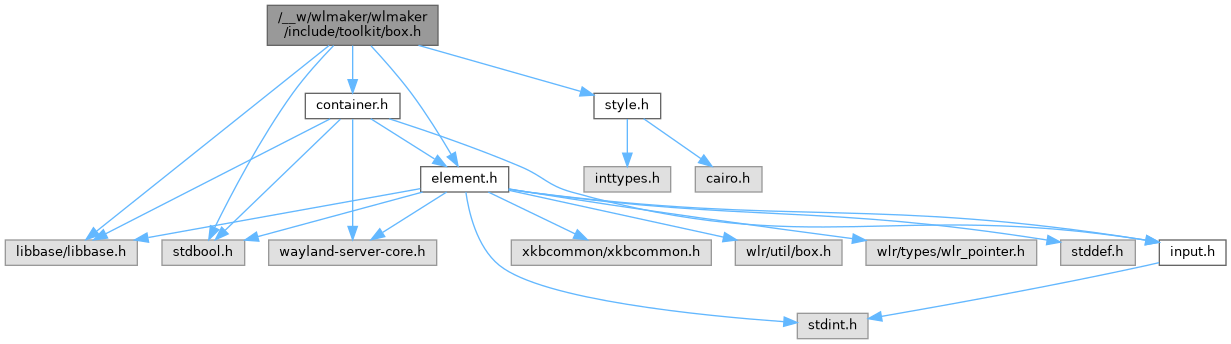

Include dependency graph for box.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	_wlmtk_box_t

Typedefs
typedef struct _wlmtk_box_t	wlmtk_box_t

Enumerations
enum	wlmtk_box_orientation_t { WLMTK_BOX_HORIZONTAL , WLMTK_BOX_VERTICAL }

Functions
bool	wlmtk_box_init (wlmtk_box_t *box_ptr, wlmtk_box_orientation_t orientation, const wlmtk_margin_style_t *style_ptr)
void	wlmtk_box_fini (wlmtk_box_t *box_ptr)
void	wlmtk_box_add_element_front (wlmtk_box_t *box_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_box_add_element_back (wlmtk_box_t *box_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_box_remove_element (wlmtk_box_t *box_ptr, wlmtk_element_t *element_ptr)
wlmtk_element_t *	wlmtk_box_element (wlmtk_box_t *box_ptr)

Variables
const bs_test_case_t	wlmtk_box_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmtk_box_t

typedef struct _wlmtk_box_t wlmtk_box_t

Forward declaration: Box.

Enumeration Type Documentation

wlmtk_box_orientation_t

enum wlmtk_box_orientation_t

Orientation of the box.

Enumerator
WLMTK_BOX_HORIZONTAL	Horizontal box layout. The container's "front" is on the left.
WLMTK_BOX_VERTICAL	Vertical box layout. The container's "front" is the top.

Function Documentation

wlmtk_box_add_element_back()

void wlmtk_box_add_element_back	(	wlmtk_box_t *	box_ptr,
		wlmtk_element_t *	element_ptr
	)

Adds element_ptr to the back of the box.

Parameters

box_ptr
element_ptr

wlmtk_box_add_element_front()

void wlmtk_box_add_element_front	(	wlmtk_box_t *	box_ptr,
		wlmtk_element_t *	element_ptr
	)

Adds element_ptr to the front of the box.

Parameters

box_ptr
element_ptr

wlmtk_box_element()

wlmtk_element_t * wlmtk_box_element

(

wlmtk_box_t *

box_ptr

)

Returns

Pointer to the superclass' wlmtk_element_t of box_ptr.

wlmtk_box_fini()

void wlmtk_box_fini

(

wlmtk_box_t *

box_ptr

)

Un-initializes the box.

Parameters

box_ptr

wlmtk_box_init()

bool wlmtk_box_init	(	wlmtk_box_t *	box_ptr,
		wlmtk_box_orientation_t	orientation,
		const wlmtk_margin_style_t *	style_ptr
	)

Initializes the box with the provided virtual method table.

Parameters

box_ptr
orientation
style_ptr

Returns

true on success.

wlmtk_box_remove_element()

void wlmtk_box_remove_element	(	wlmtk_box_t *	box_ptr,
		wlmtk_element_t *	element_ptr
	)

Removes element_ptr from the box.

Requires that element_ptr is an element of the box.

Parameters

box_ptr
element_ptr

Variable Documentation

wlmtk_box_test_cases

const bs_test_case_t wlmtk_box_test_cases[]

extern

Unit tests.
