lock_mgr.c File Reference

#include "lock_mgr.h"
#include <libbase/libbase.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-server-protocol.h>
#include <wayland-util.h>
#include <wlr/types/wlr_compositor.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/types/wlr_session_lock_v1.h>
#include <wlr/util/box.h>
#include "toolkit/toolkit.h"

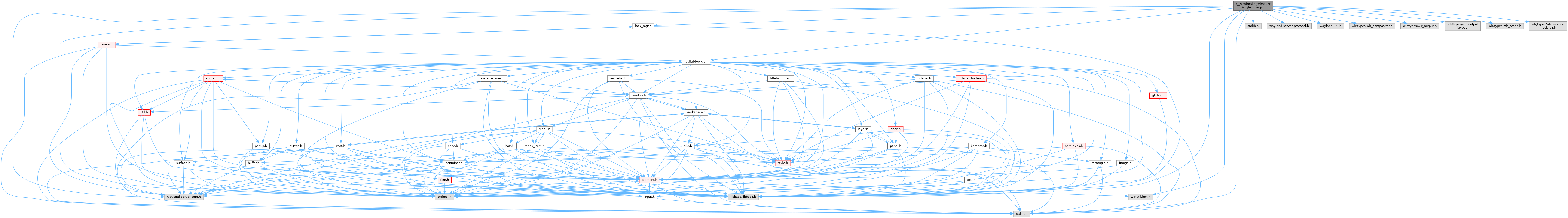

Include dependency graph for lock_mgr.c:

Classes
struct	_wlmaker_lock_mgr_t
struct	_wlmaker_lock_t
struct	_wlmaker_lock_surface_t
struct	wlmaker_lock_update_output_arg_t

Typedefs
typedef uint32_t(*	_wlmaker_lock_surface_configure_t) (struct wlr_session_lock_surface_v1 *lock_surface, uint32_t width, uint32_t height)
typedef void(*	_wlmaker_lock_send_locked_t) (struct wlr_session_lock_v1 *lock)
typedef struct _wlmaker_lock_t	wlmaker_lock_t
typedef struct _wlmaker_lock_surface_t	wlmaker_lock_surface_t

Functions
static void	_wlmaker_lock_mgr_handle_new_lock (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_lock_mgr_handle_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static wlmaker_lock_t *	_wlmaker_lock_create (struct wlr_session_lock_v1 *wlr_session_lock_v1_ptr, struct wlr_output_layout *wlr_output_layout_ptr, struct wlr_seat *wlr_seat_ptr, wlmtk_root_t *root_ptr, _wlmaker_lock_surface_configure_t injected_surface_configure, _wlmaker_lock_send_locked_t injected_send_locked)
static void	_wlmaker_lock_destroy (wlmaker_lock_t *lock_ptr)
static wlmtk_element_t *	_wlmaker_lock_element (wlmaker_lock_t *lock_ptr)
static void	_wlmaker_lock_register_lock_surface (wlmaker_lock_t *lock_ptr, wlmaker_lock_surface_t *lock_surface_ptr)
static void	_wlmaker_lock_handle_new_surface (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_lock_handle_unlock (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_lock_handle_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_lock_handle_output_layout_change (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmaker_lock_update_output (struct wl_list *link_ptr, void *ud_ptr)
static wlmaker_lock_surface_t *	_wlmaker_lock_surface_create (struct wlr_session_lock_surface_v1 *wlr_session_lock_surface_v1_ptr, wlmaker_lock_t *lock_ptr)
static void	_wlmaker_lock_surface_destroy (wlmaker_lock_surface_t *lock_surface_ptr)
static void	_wlmaker_lock_surface_handle_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_lock_surface_handle_surface_commit (struct wl_listener *listener_ptr, void *data_ptr)
static int	_wlmaker_lock_surface_avlnode_cmp (const bs_avltree_node_t *node_ptr, const void *key_ptr)
static void	_wlmaker_lock_surface_avlnode_destroy (bs_avltree_node_t *node_ptr)
wlmaker_lock_mgr_t *	wlmaker_lock_mgr_create (wlmaker_server_t *server_ptr)
void	wlmaker_lock_mgr_destroy (wlmaker_lock_mgr_t *lock_mgr_ptr)
static void	test_lock_unlock (bs_test_t *test_ptr)
static void	test_lock_crash (bs_test_t *test_ptr)
static void	test_lock_multi_output (bs_test_t *test_ptr)
static uint32_t	_mock_wlr_session_lock_surface_v1_configure (struct wlr_session_lock_surface_v1 *lock_surface, uint32_t width, uint32_t height)
static void	_mock_wlr_session_lock_v1_send_locked (struct wlr_session_lock_v1 *lock)
static void	_init_test_session_lock (struct wlr_session_lock_v1 *wlr_session_lock_v1_ptr)
static void	_init_test_surface (struct wlr_surface *wlr_surface_ptr)

Variables
const bs_test_case_t	wlmaker_lock_mgr_test_cases []
static uint32_t	_mock_configure_serial
static uint32_t	_mock_configure_width
static uint32_t	_mock_configure_height
static struct wlr_session_lock_surface_v1 *	_mock_configure_lock_surface
static struct wlr_session_lock_v1 *	_mock_send_locked_lock

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

_wlmaker_lock_send_locked_t

typedef void(* _wlmaker_lock_send_locked_t) (struct wlr_session_lock_v1 *lock)

Type of wlr_session_lock_v1_send_locked().

_wlmaker_lock_surface_configure_t

typedef uint32_t(* _wlmaker_lock_surface_configure_t) (struct wlr_session_lock_surface_v1 *lock_surface, uint32_t width, uint32_t height)

Type of wlr_session_lock_surface_v1_configure().

wlmaker_lock_surface_t

typedef struct _wlmaker_lock_surface_t wlmaker_lock_surface_t

Forward declaration: Lock surface.

wlmaker_lock_t

typedef struct _wlmaker_lock_t wlmaker_lock_t

Forward declaration: Lock.

Function Documentation

_init_test_session_lock()

void _init_test_session_lock ( struct wlr_session_lock_v1 *  wlr_session_lock_v1_ptr )

static

Initializes the minimum required attributes of the session lock.

_init_test_surface()

void _init_test_surface ( struct wlr_surface *  wlr_surface_ptr )

static

Initializes the minimum required attributes of the wlr_surface.

_mock_wlr_session_lock_surface_v1_configure()

uint32_t _mock_wlr_session_lock_surface_v1_configure ( struct wlr_session_lock_surface_v1 *  lock_surface, uint32_t  width, uint32_t  height  )

static

Mock for configure().

_mock_wlr_session_lock_v1_send_locked()

void _mock_wlr_session_lock_v1_send_locked ( struct wlr_session_lock_v1 *  lock )

static

Mock for send_locked().

_wlmaker_lock_create()

wlmaker_lock_t * _wlmaker_lock_create ( struct wlr_session_lock_v1 *  wlr_session_lock_v1_ptr, struct wlr_output_layout *  wlr_output_layout_ptr, struct wlr_seat *  wlr_seat_ptr, wlmtk_root_t *  root_ptr, _wlmaker_lock_surface_configure_t  injected_surface_configure, _wlmaker_lock_send_locked_t  injected_send_locked  )

static

Creates a session lock handle.

Parameters

wlr_session_lock_v1_ptr
wlr_output_layout_ptr
wlr_seat_ptr
root_ptr
injected_surface_configure
injected_send_locked

Returns

The lock handle or NULL on error.

_wlmaker_lock_destroy()

void _wlmaker_lock_destroy ( wlmaker_lock_t *  lock_ptr )

static

Destroys the session lock handle.

Parameters

lock_ptr

_wlmaker_lock_element()

wlmtk_element_t * _wlmaker_lock_element ( wlmaker_lock_t *  lock_ptr )

static

Returns

Pointer to wlmtk_element_t of wlmaker_lock_t::container.

_wlmaker_lock_handle_destroy()

void _wlmaker_lock_handle_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of wlr_session_lock_v1: Destroy the lock.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_handle_new_surface()

void _wlmaker_lock_handle_new_surface ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_surface signal of wlr_session_lock_v1: Creates the associated surface and enables it on the screenlock container.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_handle_output_layout_change()

void _wlmaker_lock_handle_output_layout_change ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles the change event of wlr_output_layout::events.

Walks through outputs of wlmaker_lock_t::wlr_output_layout_ptr, and updates wlmaker_lock_t::lock_surface_tree_ptr accordingly.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_handle_unlock()

void _wlmaker_lock_handle_unlock ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the unlock signal of wlr_session_lock_v1: Marks the session as unlocked.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_mgr_handle_destroy()

void _wlmaker_lock_mgr_handle_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of wlr_session_lock_manager_v1: Cleans up associated resources.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_mgr_handle_new_lock()

void _wlmaker_lock_mgr_handle_new_lock ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_lock signal of wlr_session_lock_manager_v1: creates the corresponding lock.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_register_lock_surface()

void _wlmaker_lock_register_lock_surface ( wlmaker_lock_t *  lock_ptr, wlmaker_lock_surface_t *  lock_surface_ptr  )

static

Registers the provided surface as a lock surface for it's output, unless it had already been registered. Locks the session, once lock surfaces for all surfaces have been registered.

Parameters

lock_ptr
lock_surface_ptr

_wlmaker_lock_surface_avlnode_cmp()

int _wlmaker_lock_surface_avlnode_cmp ( const bs_avltree_node_t *  avlnode_ptr, const void *  key_ptr  )

static

Comparator for wlmaker_lock_t::lock_surface_tree_ptr by output.

_wlmaker_lock_surface_avlnode_destroy()

void _wlmaker_lock_surface_avlnode_destroy ( bs_avltree_node_t *  avlnode_ptr )

static

Dtor for wlmaker_lock_t::lock_surface_tree_ptr nodes.

_wlmaker_lock_surface_create()

wlmaker_lock_surface_t * _wlmaker_lock_surface_create ( struct wlr_session_lock_surface_v1 *  wlr_session_lock_surface_v1_ptr, wlmaker_lock_t *  lock_ptr  )

static

Creates a lock surface.

Parameters

wlr_session_lock_surface_v1_ptr
lock_ptr

Returns

The lock surface or NULL on error.

_wlmaker_lock_surface_destroy()

void _wlmaker_lock_surface_destroy ( wlmaker_lock_surface_t *  lock_surface_ptr )

static

Destroys the lock surface.

Parameters

lock_surface_ptr

_wlmaker_lock_surface_handle_destroy()

void _wlmaker_lock_surface_handle_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of wlr_session_lock_surface_v1: Destroy the surface.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_surface_handle_surface_commit()

void _wlmaker_lock_surface_handle_surface_commit ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the commit signal of wlr_session_lock_surface_v1::surface.

Checks whether the serial is at-or-above the 'configure' serial, and reports the surface and output as locked. Once all surfaces are locked, a 'send_locked' event will be sent.

Parameters

listener_ptr
data_ptr

_wlmaker_lock_update_output()

bool _wlmaker_lock_update_output ( struct wl_list *  link_ptr, void *  ud_ptr  )

static

Updates the lock surfaces for an output: If there is a surface for the output, moves it into the new surface tree, and sends a configure() event with new dimensions. Otherwise, a no-op.

Parameters

link_ptr
ud_ptr	A wlmaker_lock_update_output_arg_t.

Returns

true if the operation succeeded. It may fail if there's multiple surface per output; although that would be indicative of data corruption.

test_lock_crash()

void test_lock_crash ( bs_test_t *  test_ptr )

static

Tests locking, and then the session lock going away: Must remain locked.

test_lock_multi_output()

void test_lock_multi_output ( bs_test_t *  test_ptr )

static

Tests locking with multiple outputs. Lock only when all outputs covered.

test_lock_unlock()

void test_lock_unlock ( bs_test_t *  test_ptr )

static

Tests locking & unlocking, proper sequence, single output.

wlmaker_lock_mgr_create()

wlmaker_lock_mgr_t * wlmaker_lock_mgr_create

(

wlmaker_server_t *

server_ptr

)

Creates the session lock manager.

Parameters

server_ptr

Returns

The session lock manager handler or NULL on error.

wlmaker_lock_mgr_destroy()

void wlmaker_lock_mgr_destroy

(

wlmaker_lock_mgr_t *

lock_mgr_ptr

)

Destroys the session lock manager.

Parameters

lock_mgr_ptr

Variable Documentation

_mock_configure_height

uint32_t _mock_configure_height

static

Arg of last call to _mock_wlr_session_lock_surface_v1_configure.

_mock_configure_lock_surface

struct wlr_session_lock_surface_v1* _mock_configure_lock_surface

static

Arg of last call to _mock_wlr_session_lock_surface_v1_configure.

_mock_configure_serial

uint32_t _mock_configure_serial

static

Return value for _mock_wlr_session_lock_surface_v1_configure.

_mock_configure_width

uint32_t _mock_configure_width

static

Arg of last call to _mock_wlr_session_lock_surface_v1_configure.

_mock_send_locked_lock

struct wlr_session_lock_v1* _mock_send_locked_lock

static

Arg of last call to _mock_wlr_session_lock_v1_send_locked.

wlmaker_lock_mgr_test_cases

const bs_test_case_t wlmaker_lock_mgr_test_cases[]

Initial value:

= {
    { 1, "lock_unlock", test_lock_unlock },
    { 1, "lock_crash", test_lock_crash },
    { 1, "lock_multi_output", test_lock_multi_output },
    { 0, NULL, NULL }
}

Unit test cases for wlmaker_lock_mgr_t.
