task_list.c File Reference

#include "task_list.h"
#include <cairo.h>
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <limits.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <sys/types.h>
#include <wayland-server-core.h>
#include <wlr/util/edges.h>
#include <wlr/interfaces/wlr_buffer.h>
#include "config.h"
#include "server.h"
#include "toolkit/toolkit.h"

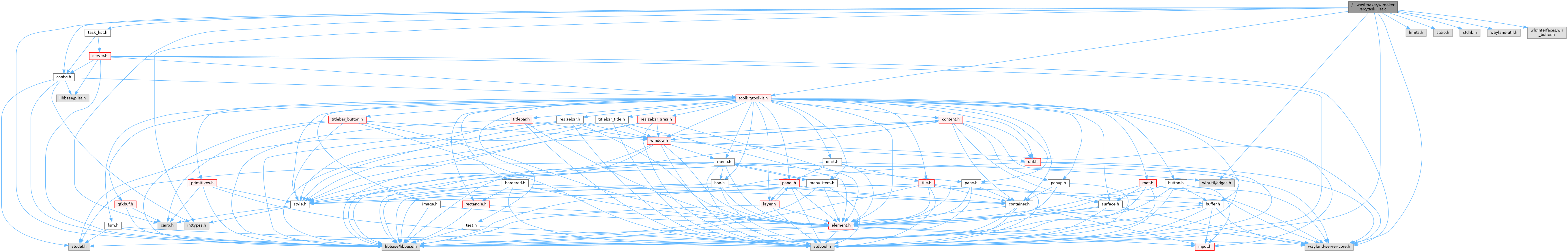

Include dependency graph for task_list.c:

Classes
struct	_wlmaker_task_list_t

Macros
#define	_POSIX_C_SOURCE   1
	for PATH_MAX.
#define	WLR_USE_UNSTABLE
	Include unstable interfaces of wlroots.

Functions
static bool	_wlmaker_task_list_refresh (wlmaker_task_list_t *task_list_ptr, const struct wlmaker_task_list_style *style_ptr)
static struct wlr_buffer *	create_wlr_buffer (wlmtk_workspace_t *workspace_ptr, const struct wlmaker_task_list_style *style_ptr)
static void	_wlmaker_task_list_draw_into_cairo (cairo_t *cairo_ptr, const struct wlmaker_task_list_style *style_ptr, wlmtk_workspace_t *workspace_ptr)
static void	_wlmaker_task_list_draw_window_into_cairo (cairo_t *cairo_ptr, const wlmtk_style_font_t *font_style_ptr, uint32_t color, wlmtk_window_t *window_ptr, bool active, int pos_y)
static const char *	_wlmaker_task_list_window_name (wlmtk_window_t *window_ptr)
static uint32_t	_wlmaker_task_list_request_size (wlmtk_panel_t *panel_ptr, int width, int height)
static void	_wlmaker_task_list_handle_task_list_enabled (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_task_list_handle_task_list_disabled (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_task_list_handle_theme_changed (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_task_list_handle_window_mapped (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_task_list_handle_window_unmapped (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_task_list_t *	wlmaker_task_list_create (wlmaker_server_t *server_ptr, const struct wlmaker_task_list_style *style_ptr)
void	wlmaker_task_list_destroy (wlmaker_task_list_t *task_list_ptr)

Variables
const bspl_desc_t	wlmaker_task_list_style_desc []
static const wlmtk_panel_positioning_t	_wlmaker_task_list_positioning
static const wlmtk_panel_vmt_t	_wlmaker_task_list_vmt

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_task_list_draw_into_cairo()

void _wlmaker_task_list_draw_into_cairo ( cairo_t *  cairo_ptr, const struct wlmaker_task_list_style *  style_ptr, wlmtk_workspace_t *  workspace_ptr  )

static

Draws all tasks of workspace_ptr into cairo_ptr.

Parameters

cairo_ptr
style_ptr
workspace_ptr

_wlmaker_task_list_draw_window_into_cairo()

void _wlmaker_task_list_draw_window_into_cairo ( cairo_t *  cairo_ptr, const wlmtk_style_font_t *  font_style_ptr, uint32_t  color, wlmtk_window_t *  window_ptr, bool  active, int  pos_y  )

static

Draws one window (task) into cairo_ptr.

Parameters

cairo_ptr
font_style_ptr
color
window_ptr
active	Whether this window is currently active.
pos_y	Y position within the cairo_ptr.

_wlmaker_task_list_handle_task_list_disabled()

void _wlmaker_task_list_handle_task_list_disabled ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the task_list_disabled_listener: Hides the list.

Parameters

listener_ptr
data_ptr

_wlmaker_task_list_handle_task_list_enabled()

void _wlmaker_task_list_handle_task_list_enabled ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the task_list_enabled_listener.

Enables the task listener: Creates the task list for the currently-active workspace and enables the task list on that workspace.

Parameters

listener_ptr
data_ptr

_wlmaker_task_list_handle_theme_changed()

void _wlmaker_task_list_handle_theme_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the theme_changed_listener: Updates the style

Parameters

listener_ptr
data_ptr

_wlmaker_task_list_handle_window_mapped()

void _wlmaker_task_list_handle_window_mapped ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the window_mapped_listener: Refreshes the list (if enabled).

Parameters

listener_ptr
data_ptr

_wlmaker_task_list_handle_window_unmapped()

void _wlmaker_task_list_handle_window_unmapped ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the window_unmapped_listener: Refreshes the list (if enabled).

Parameters

listener_ptr
data_ptr

_wlmaker_task_list_refresh()

bool _wlmaker_task_list_refresh ( wlmaker_task_list_t *  task_list_ptr, const struct wlmaker_task_list_style *  style_ptr  )

static

Refreshes the task list. Should be done whenever a list is mapped/unmapped.

Parameters

task_list_ptr
style_ptr

Returns

true on success.

_wlmaker_task_list_request_size()

uint32_t _wlmaker_task_list_request_size ( wlmtk_panel_t *  panel_ptr, int  width, int  height  )

static

Implements wlmtk_panel_vmt_t::request_size.

Parameters

panel_ptr
width
height

Returns

0 always.

_wlmaker_task_list_window_name()

const char * _wlmaker_task_list_window_name ( wlmtk_window_t *  window_ptr )

static

Constructs a comprehensive name for the window.

Parameters

window_ptr

Returns

Pointer to the constructed name. This is a static buffer that does not require to be free'd, but will be re-used upon next call to window_name.

create_wlr_buffer()

struct wlr_buffer * create_wlr_buffer ( wlmtk_workspace_t *  workspace_ptr, const struct wlmaker_task_list_style *  style_ptr  )

static

Creates a struct wlr_buffer with windows of workspace_ptr drawn into.

Parameters

workspace_ptr
style_ptr

Returns

A pointer to the struct wlr_buffer with the list of windows (tasks), or NULL on error.

wlmaker_task_list_create()

wlmaker_task_list_t * wlmaker_task_list_create	(	wlmaker_server_t *	server_ptr,
		const struct wlmaker_task_list_style *	style_ptr
	)

Creates a task list for the server.

Will allocate the task list handle, and register signal handlers so the task list reacts to task_list_enabled_event and task_list_disabled_event of the wlmaker_server_t.

Parameters

server_ptr
style_ptr

Returns

The task list handle or NULL on error. Must be released by calling wlmaker_task_list_destroy.

wlmaker_task_list_destroy()

void wlmaker_task_list_destroy

(

wlmaker_task_list_t *

task_list_ptr

)

Destroys the task list, as created by wlmaker_task_list_create.

Parameters

task_list_ptr

Variable Documentation

_wlmaker_task_list_positioning

const wlmtk_panel_positioning_t _wlmaker_task_list_positioning

static

Initial value:

= {
    .desired_width = 400,
    .desired_height = 200,
    .anchor = WLR_EDGE_BOTTOM | WLR_EDGE_TOP | WLR_EDGE_LEFT | WLR_EDGE_RIGHT
}

Task list positioning: Fixed dimensions, at center of layer.

_wlmaker_task_list_vmt

const wlmtk_panel_vmt_t _wlmaker_task_list_vmt

static

Initial value:

= {
    .request_size = _wlmaker_task_list_request_size
}

Virtual method table for the task list.

wlmaker_task_list_style_desc

const bspl_desc_t wlmaker_task_list_style_desc[]

Initial value:

= {
    BSPL_DESC_CUSTOM(
        "Fill", true, struct wlmaker_task_list_style, fill, fill,
        wlmtk_style_decode_fill, NULL, NULL, NULL),
    BSPL_DESC_DICT(
        "Font", true, struct wlmaker_task_list_style, font, font,
        wlmtk_style_font_desc),
    BSPL_DESC_ARGB32(
        "TextColor", true, struct wlmaker_task_list_style,
        text_color, text_color, 0),

}

Descriptor for decoding the "TaskList" dictionary.
