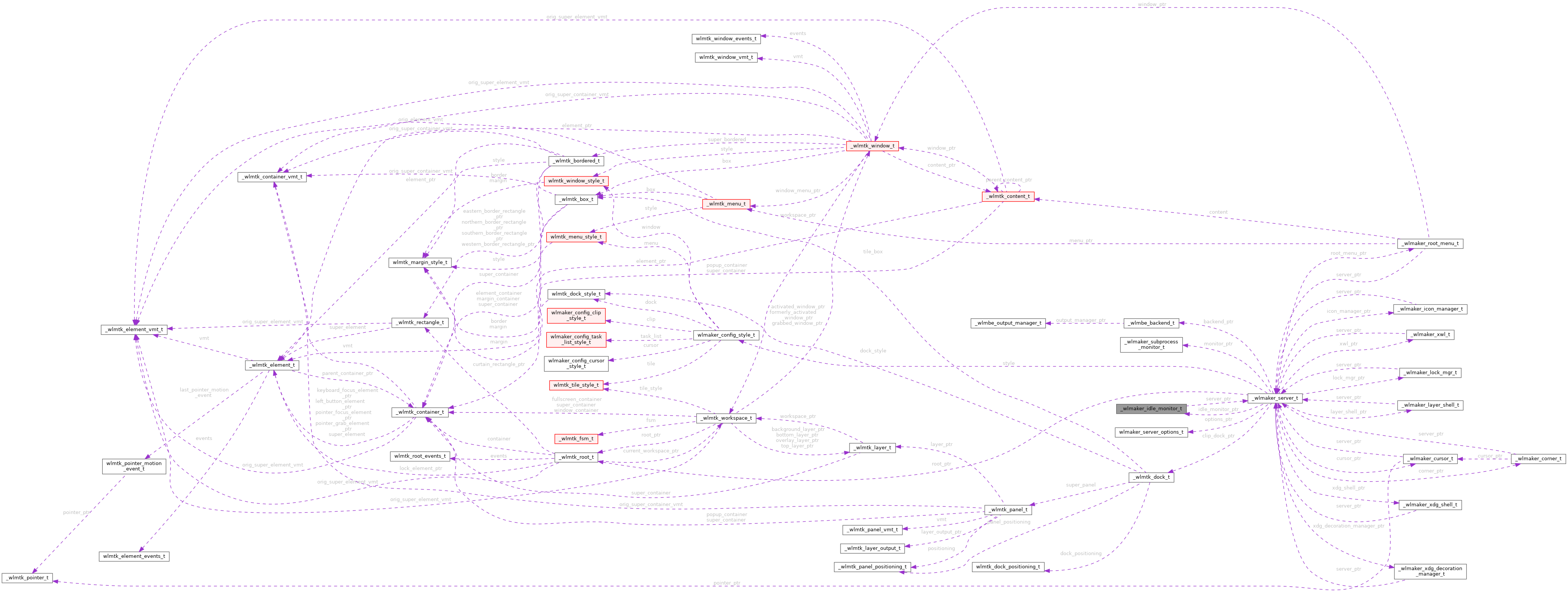

Collaboration diagram for _wlmaker_idle_monitor_t:

[legend]

Public Attributes
wlmaker_server_t *	server_ptr

bspl_dict_t *	lock_config_dict_ptr

struct wl_event_loop *	wl_event_loop_ptr

struct wl_event_source *	timer_event_source_ptr

bool	timer_expired

struct wl_listener	new_inhibitor_listener

bs_dllist_t	idle_inhibitors

int	inhibits

struct wl_listener	unlock_listener

struct wlr_idle_inhibit_manager_v1 *	wlr_idle_inhibit_manager_v1_ptr

bool	locked

Detailed Description

State of the idle monitor.

Member Data Documentation

◆ idle_inhibitors

bs_dllist_t _wlmaker_idle_monitor_t::idle_inhibitors

Lists registered inhibitors: wlmaker_idle_inhibitor_t::dlnode.

◆ inhibits

int _wlmaker_idle_monitor_t::inhibits

Counter for inhibits. Timer-triggered locks are taking effect only when inhibits == 0.

◆ lock_config_dict_ptr

bspl_dict_t* _wlmaker_idle_monitor_t::lock_config_dict_ptr

Dictionnary holding the 'ScreenLock' configuration.

◆ locked

bool _wlmaker_idle_monitor_t::locked

Whether the idle monitor is locked. Prevents timer registry.

◆ new_inhibitor_listener

struct wl_listener _wlmaker_idle_monitor_t::new_inhibitor_listener

Listener for new_inhibitor of wlr_idle_inhibit_manager_v1`.

◆ server_ptr

wlmaker_server_t* _wlmaker_idle_monitor_t::server_ptr

Back-link to the server.

◆ timer_event_source_ptr

struct wl_event_source* _wlmaker_idle_monitor_t::timer_event_source_ptr

The timer's event source.

◆ timer_expired

bool _wlmaker_idle_monitor_t::timer_expired

Whether the timer expired. Reset in wlmaker_idle_monitor_reset.

◆ unlock_listener

struct wl_listener _wlmaker_idle_monitor_t::unlock_listener

Listener for wlmtk_root_events_t::unlock_event.

◆ wl_event_loop_ptr

struct wl_event_loop* _wlmaker_idle_monitor_t::wl_event_loop_ptr

Reference to the event loop.

◆ wlr_idle_inhibit_manager_v1_ptr

struct wlr_idle_inhibit_manager_v1* _wlmaker_idle_monitor_t::wlr_idle_inhibit_manager_v1_ptr

The wlroots idle inhibit manager.

The documentation for this struct was generated from the following file:

/__w/wlmaker/wlmaker/src/idle.c
