idle.c File Reference

#include "idle.h"
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdint.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-server-protocol.h>
#include <wayland-util.h>
#include <wlr/types/wlr_idle_inhibit_v1.h>
#include "subprocess_monitor.h"
#include "toolkit/toolkit.h"

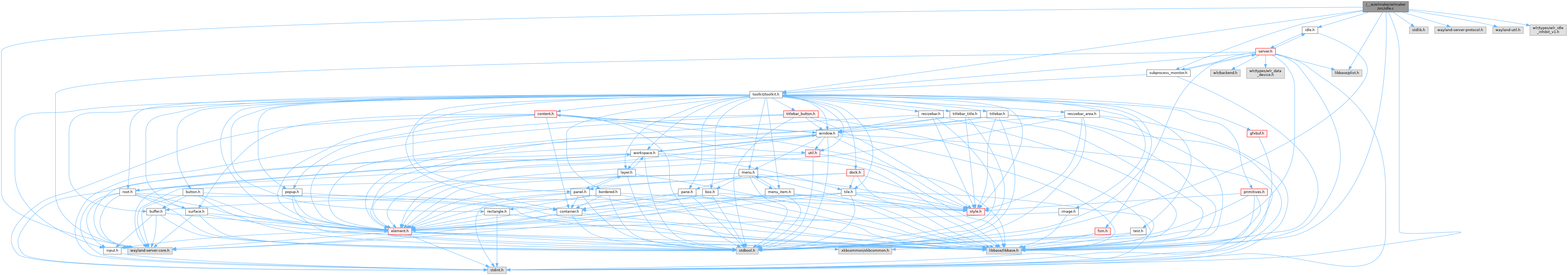

Include dependency graph for idle.c:

Classes
struct	_wlmaker_idle_monitor_t
struct	_wlmaker_idle_inhibitor_t

Typedefs
typedef struct _wlmaker_idle_inhibitor_t	wlmaker_idle_inhibitor_t

Functions
static void	_wlmaker_idle_monitor_consider_locking (wlmaker_idle_monitor_t *idle_monitor_ptr)
static int	_wlmaker_idle_monitor_timer (void *data_ptr)
static int	_wlmaker_idle_msec (wlmaker_idle_monitor_t *idle_monitor_ptr)
static bool	_wlmaker_idle_monitor_add_inhibitor (wlmaker_idle_monitor_t *idle_monitor_ptr, struct wlr_idle_inhibitor_v1 *wlr_idle_inhibitor_v1_ptr)
static void	_wlmaker_idle_monitor_handle_destroy_inhibitor (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_idle_monitor_handle_new_inhibitor (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_idle_monitor_handle_unlock (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_idle_monitor_t *	wlmaker_idle_monitor_create (wlmaker_server_t *server_ptr)
void	wlmaker_idle_monitor_destroy (wlmaker_idle_monitor_t *idle_monitor_ptr)
void	wlmaker_idle_monitor_reset (wlmaker_idle_monitor_t *idle_monitor_ptr)
bool	wlmaker_idle_monitor_lock (wlmaker_idle_monitor_t *idle_monitor_ptr)
void	wlmaker_idle_monitor_inhibit (wlmaker_idle_monitor_t *idle_monitor_ptr)
void	wlmaker_idle_monitor_uninhibit (wlmaker_idle_monitor_t *idle_monitor_ptr)

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmaker_idle_inhibitor_t

typedef struct _wlmaker_idle_inhibitor_t wlmaker_idle_inhibitor_t

Forward declaration: Handle of an idle inhibitor.

Function Documentation

_wlmaker_idle_monitor_add_inhibitor()

bool _wlmaker_idle_monitor_add_inhibitor ( wlmaker_idle_monitor_t *  idle_monitor_ptr, struct wlr_idle_inhibitor_v1 *  wlr_idle_inhibitor_v1_ptr  )

static

Creates and adds a new inhibitor to the monitor.

Parameters

idle_monitor_ptr
wlr_idle_inhibitor_v1_ptr

Returns

true on success.

_wlmaker_idle_monitor_consider_locking()

void _wlmaker_idle_monitor_consider_locking ( wlmaker_idle_monitor_t *  idle_monitor_ptr )

static

Executes a lock, if not inhibited & timer has indeed expired.

_wlmaker_idle_monitor_handle_destroy_inhibitor()

void _wlmaker_idle_monitor_handle_destroy_inhibitor ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of the inhibitor. Destroys it.

Parameters

listener_ptr
data_ptr	Unused.

_wlmaker_idle_monitor_handle_new_inhibitor()

static void _wlmaker_idle_monitor_handle_new_inhibitor ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_inhibitor signal of the inhibit manager: Registers the inhibitor.

Parameters

listener_ptr
data_ptr	Pointer to struct wlr_idle_inhibitor_v1.

_wlmaker_idle_monitor_handle_unlock()

void _wlmaker_idle_monitor_handle_unlock ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for wlmtk_root_events_t::unlock_event. Re-arms the timer.

Parameters

listener_ptr
data_ptr	unused.

_wlmaker_idle_monitor_timer()

int _wlmaker_idle_monitor_timer ( void *  data_ptr )

static

Timer function for the wayland event loop.

Parameters

data_ptr

Untyped pointer to wlmaker_idle_monitor_t.

Returns

Whether the event source is registered for re-check with wl_event_source_check(): 0 for all done, 1 for needing a re-check. If not registered, the return value is ignored and should be zero.

_wlmaker_idle_msec()

int _wlmaker_idle_msec ( wlmaker_idle_monitor_t *  idle_monitor_ptr )

static

Returns the idle timeout time in milliseconds.

Parameters

idle_monitor_ptr

Returns

The idle timeout, read from the config dictionnary. If no or a negative value was configured, 0 is returned, indicating the timer to NOT be armed.

wlmaker_idle_monitor_create()

wlmaker_idle_monitor_t * wlmaker_idle_monitor_create

(

wlmaker_server_t *

server_ptr

)

Creates the idle monitor.

Parameters

server_ptr

Returns

Handle of the idle monitor or NULL on error.

wlmaker_idle_monitor_destroy()

void wlmaker_idle_monitor_destroy

(

wlmaker_idle_monitor_t *

idle_monitor_ptr

)

Destroys the idle monitor.

Parameters

idle_monitor_ptr

wlmaker_idle_monitor_inhibit()

void wlmaker_idle_monitor_inhibit

(

wlmaker_idle_monitor_t *

idle_monitor_ptr

)

Inhibits locking: Increases inhibitor counter, which will prevent locking when the idle timer expires.

See also

wlmaker_idle_monitor_uninhibit for releasing the inhibitor.

Parameters

idle_monitor_ptr

wlmaker_idle_monitor_lock()

bool wlmaker_idle_monitor_lock

(

wlmaker_idle_monitor_t *

idle_monitor_ptr

)

Executes the configured 'Command' for locking. Overrides inhibits.

Parameters

idle_monitor_ptr

Returns

true on success.

wlmaker_idle_monitor_reset()

void wlmaker_idle_monitor_reset

(

wlmaker_idle_monitor_t *

idle_monitor_ptr

)

Resets the idle monitor: For example, when a key is pressed.

Parameters

idle_monitor_ptr

wlmaker_idle_monitor_uninhibit()

void wlmaker_idle_monitor_uninhibit

(

wlmaker_idle_monitor_t *

idle_monitor_ptr

)

Uninhibits locking: Decreases the counter. If 0, and no other inhibitors found, an expired idle timer will lock.

Parameters

idle_monitor_ptr
