root_menu.c File Reference

#include "root_menu.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <limits.h>
#include <stdarg.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <wayland-server-core.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include "../etc/root_menu.h"
#include "action.h"
#include "action_item.h"
#include "config.h"
#include "subprocess_monitor.h"

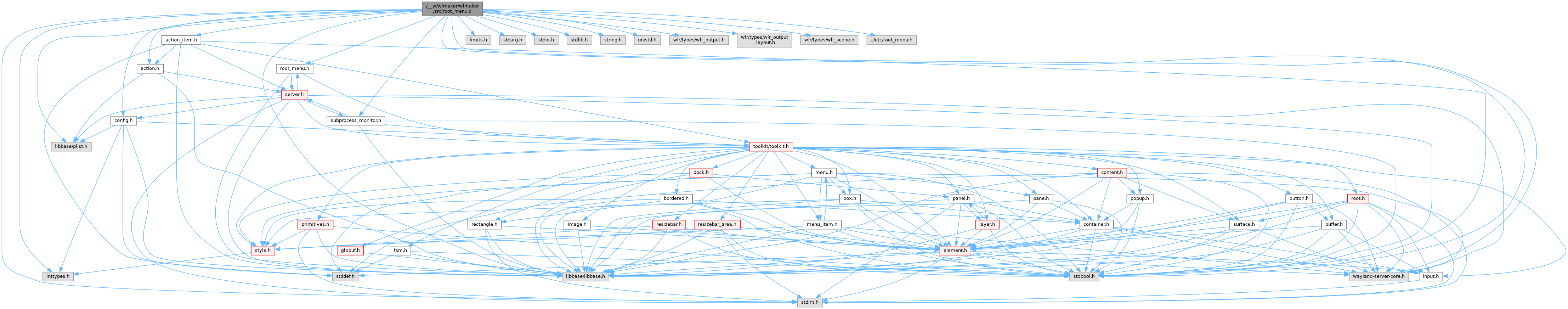

Include dependency graph for root_menu.c:

Classes
struct	_wlmaker_root_menu_t
struct	wlmaker_root_menu_generator_t

Functions
static void	_wlmaker_root_menu_content_request_close (wlmtk_content_t *content_ptr)
static void	_wlmaker_root_menu_content_set_activated (wlmtk_content_t *content_ptr, bool activated)
static void	_wlmaker_root_menu_handle_menu_open_changed (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_root_menu_handle_request_close (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmaker_root_menu_init_menu_from_array (wlmtk_menu_t *menu_ptr, bspl_array_t *array_ptr, const wlmtk_menu_style_t *menu_style_ptr, wlmaker_server_t *server_ptr)
static bool	_wlmaker_root_menu_populate_menu_items_from_array (wlmtk_menu_t *menu_ptr, bspl_array_t *array_ptr, const wlmtk_menu_style_t *menu_style_ptr, wlmaker_server_t *server_ptr)
static bool	_wlmaker_root_menu_populate_menu_items_from_file (wlmtk_menu_t *menu_ptr, const char *filename_ptr, const wlmtk_menu_style_t *menu_style_ptr, wlmaker_server_t *server_ptr)
static bool	_wlmaker_root_menu_populate_menu_items_from_generator (wlmtk_menu_t *menu_ptr, const char *command_ptr, const wlmtk_menu_style_t *menu_style_ptr, wlmaker_server_t *server_ptr)
static void	_wlmaker_root_menu_generator_destroy (wlmaker_root_menu_generator_t *gen_menu_ptr)
static void	_wlmaker_root_menu_generator_handle_menu_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_root_menu_generator_handle_terminated (void *userdata_ptr, wlmaker_subprocess_handle_t *subprocess_handle_ptr, int state, int code)
static wlmtk_menu_item_t *	_wlmaker_root_menu_create_item_from_array (bspl_array_t *item_array_ptr, const wlmtk_menu_style_t *menu_style_ptr, wlmaker_server_t *server_ptr)
static wlmtk_menu_item_t *	_wlmaker_root_menu_create_disabled_item (const wlmtk_menu_item_style_t *style_ptr, const char *fmt_ptr,...) __ARG_PRINTF__(2
wlmaker_root_menu_t *	wlmaker_root_menu_create (wlmaker_server_t *server_ptr, const char *arg_root_menu_file_ptr, const wlmtk_window_style_t *window_style_ptr, const wlmtk_menu_style_t *menu_style_ptr)
void	wlmaker_root_menu_destroy (wlmaker_root_menu_t *root_menu_ptr)
wlmtk_window_t *	wlmaker_root_menu_window (wlmaker_root_menu_t *root_menu_ptr)
wlmtk_menu_t *	wlmaker_root_menu_menu (wlmaker_root_menu_t *root_menu_ptr)
static void	test_default_menu (bs_test_t *test_ptr)
static void	test_generated_menu (bs_test_t *test_ptr)

Variables
static wlmtk_menu_item_t static const wlmtk_content_vmt_t	_wlmaker_root_menu_content_vmt
static const char *	_wlmaker_root_menu_fname_ptrs []
static const char *	_wlmaker_root_menu_statement_include = "IncludePlistMenu"
static const char *	_wlmaker_root_menu_statement_generate = "GeneratePlistMenu"
struct wl_display *	_wlmaker_root_menu_test_wl_display_ptr = NULL
const bs_test_case_t	wlmaker_root_menu_test_cases []

Detailed Description

Copyright

Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_root_menu_content_request_close()

void _wlmaker_root_menu_content_request_close ( wlmtk_content_t *  content_ptr )

static

Implements wlmtk_content_vmt_t::request_close. Closes root menu.

_wlmaker_root_menu_content_set_activated()

void _wlmaker_root_menu_content_set_activated ( wlmtk_content_t *  content_ptr, bool  activated  )

static

Imlements wlmtk_content_vmt_t::set_activated. Gets keyboard focus.

_wlmaker_root_menu_create_disabled_item()

wlmtk_menu_item_t * _wlmaker_root_menu_create_disabled_item ( const wlmtk_menu_item_style_t *  style_ptr, const char *  fmt_ptr,   ...  )

static

Creates a disabled menu item as a means to display generator state.

Parameters

style_ptr
fmt_ptr

Returns

the disabled menu item, or NULL on error.

_wlmaker_root_menu_create_item_from_array()

wlmtk_menu_item_t * _wlmaker_root_menu_create_item_from_array ( bspl_array_t *  item_array_ptr, const wlmtk_menu_style_t *  menu_style_ptr, wlmaker_server_t *  server_ptr  )

static

Creates a menu item from the Plist array.

The Plist array either defines a menu action item, where the array elements are (Title, ActionName, OptionalActionArg). Or, it defines a submenu, as specified in _wlmaker_root_menu_init_menu_from_array.

For the list of permitted ActionName values, see wlmaker_action_desc.

Parameters

item_array_ptr
menu_style_ptr
server_ptr

Returns

The menu item, or NULL on error.

_wlmaker_root_menu_generator_destroy()

void _wlmaker_root_menu_generator_destroy ( wlmaker_root_menu_generator_t *  generator_ptr )

static

Dtor for the menu generator.

_wlmaker_root_menu_generator_handle_menu_destroy()

void _wlmaker_root_menu_generator_handle_menu_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlmtk_menu_events_t::destroy. Calls dtor.

_wlmaker_root_menu_generator_handle_terminated()

void _wlmaker_root_menu_generator_handle_terminated ( void *  userdata_ptr, wlmaker_subprocess_handle_t *  subprocess_handle_ptr, int  state, int  code  )

static

Handler for when the subprocess is terminated.

_wlmaker_root_menu_handle_menu_open_changed()

void _wlmaker_root_menu_handle_menu_open_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlmtk_menu_events_t::open_changed. Unmaps window on close.

_wlmaker_root_menu_handle_request_close()

void _wlmaker_root_menu_handle_request_close ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Listens to wlmtk_menu_events_t::request_close. Closes the menu.

_wlmaker_root_menu_init_menu_from_array()

bool _wlmaker_root_menu_init_menu_from_array ( wlmtk_menu_t *  menu_ptr, bspl_array_t *  array_ptr, const wlmtk_menu_style_t *  menu_style_ptr, wlmaker_server_t *  server_ptr  )

static

Initializes the menu from the menu configuration array.

The menu configuration is a Plist array. The first item is the menu's title, while the second item defines the nature of the menu configuration:

It can define a set of menu items, in form of Plist arrays:

("Menu Title",
  ("Item 1", None),
  ("Item 2", None)
)

Or, it is a definition to include a Plist menu:

("Include", IncludePlistMenu, "tests/data/menu.plist")

Or, it is a definition to generate a Plist menu:

("Include", GeneratePlistMenu, "cat tests/data/menu.plist")

Parameters

menu_ptr
array_ptr
menu_style_ptr
server_ptr

Returns

true on success.

_wlmaker_root_menu_populate_menu_items_from_array()

bool _wlmaker_root_menu_populate_menu_items_from_array ( wlmtk_menu_t *  menu_ptr, bspl_array_t *  array_ptr, const wlmtk_menu_style_t *  menu_style_ptr, wlmaker_server_t *  server_ptr  )

static

Populates the menu's items from the Plist array. This handles the case of a menu configuration that specifies the menu items as a Plist array.

The first item of array_ptr is the menu's title, and each further item is expected to be another Plist array, defining a menu item.

Parameters

menu_ptr
array_ptr
menu_style_ptr
server_ptr

Returns

true on success

_wlmaker_root_menu_populate_menu_items_from_file()

bool _wlmaker_root_menu_populate_menu_items_from_file ( wlmtk_menu_t *  menu_ptr, const char *  filename_ptr, const wlmtk_menu_style_t *  menu_style_ptr, wlmaker_server_t *  server_ptr  )

static

Loads a Plist array from file and populates the menu's items from it.

Parameters

menu_ptr
filename_ptr
menu_style_ptr
server_ptr

Returns

true on success

_wlmaker_root_menu_populate_menu_items_from_generator()

bool _wlmaker_root_menu_populate_menu_items_from_generator ( wlmtk_menu_t *  menu_ptr, const char *  command_ptr, const wlmtk_menu_style_t *  menu_style_ptr, wlmaker_server_t *  server_ptr  )

static

Launches a subprocess, to populate the menu's items.

Uses a wlmaker_root_menu_generator_t to track state of the subprocess and to tie it with the menu's lifecycle.

Parameters

menu_ptr
command_ptr
menu_style_ptr
server_ptr

Returns

true on success

test_default_menu()

void test_default_menu ( bs_test_t *  test_ptr )

static

Verifies that the compiled-in configuration translates into a menu.

test_generated_menu()

void test_generated_menu ( bs_test_t *  test_ptr )

static

Verifies that an example menu with generator is translated.

wlmaker_root_menu_create()

wlmaker_root_menu_t * wlmaker_root_menu_create	(	wlmaker_server_t *	server_ptr,
		const char *	arg_root_menu_file_ptr,
		const wlmtk_window_style_t *	window_style_ptr,
		const wlmtk_menu_style_t *	menu_style_ptr
	)

Creates a root menu.

Parameters

server_ptr
arg_root_menu_file_ptr
window_style_ptr
menu_style_ptr

Returns

Handle of the root menu, or NULL on error.

wlmaker_root_menu_destroy()

void wlmaker_root_menu_destroy

(

wlmaker_root_menu_t *

root_menu_ptr

)

Destroys the root menu.

Parameters

root_menu_ptr

wlmaker_root_menu_menu()

wlmtk_menu_t * wlmaker_root_menu_menu

(

wlmaker_root_menu_t *

root_menu_ptr

)

Returns

Pointer to wlmtk_menu_t of the root menu.

wlmaker_root_menu_window()

wlmtk_window_t * wlmaker_root_menu_window

(

wlmaker_root_menu_t *

root_menu_ptr

)

Returns

the window holding the root menu.

Variable Documentation

_wlmaker_root_menu_content_vmt

wlmtk_menu_item_t static const wlmtk_content_vmt_t _wlmaker_root_menu_content_vmt

static

Initial value:

= {
    .request_close = _wlmaker_root_menu_content_request_close,
    .set_activated = _wlmaker_root_menu_content_set_activated,
}

Virtual method of the root menu's window content.

_wlmaker_root_menu_fname_ptrs

const char* _wlmaker_root_menu_fname_ptrs[]

static

Initial value:

= {
    "~/.wlmaker-root-menu.plist",
    "/usr/share/wlmaker/root-menu.plist",
    NULL
}

Lookup paths for the root menu config file.

_wlmaker_root_menu_statement_generate

const char* _wlmaker_root_menu_statement_generate = "GeneratePlistMenu"

static

Indicates to generate the menu using a shell command specified in the following argument.

_wlmaker_root_menu_statement_include

const char* _wlmaker_root_menu_statement_include = "IncludePlistMenu"

static

Indicates to load the file specified in following argument.

_wlmaker_root_menu_test_wl_display_ptr

struct wl_display* _wlmaker_root_menu_test_wl_display_ptr = NULL

Unit test injector: struct wl_display that will be terminated when subprocess terminates. Must be NULL when not for in unit tests.

wlmaker_root_menu_test_cases

const bs_test_case_t wlmaker_root_menu_test_cases[]

Initial value:

= {
    { 1, "default_menu", test_default_menu },
    { 1, "generated_menu", test_generated_menu },
    { 0, NULL, NULL }
}

Unit test cases.
