root.c File Reference

#include "root.h"
#include <libbase/libbase.h>
#include <stdlib.h>
#include <wayland-server-protocol.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/version.h>
#include <xkbcommon/xkbcommon.h>
#include "container.h"
#include "input.h"
#include "rectangle.h"
#include "tile.h"
#include "util.h"
#include "workspace.h"

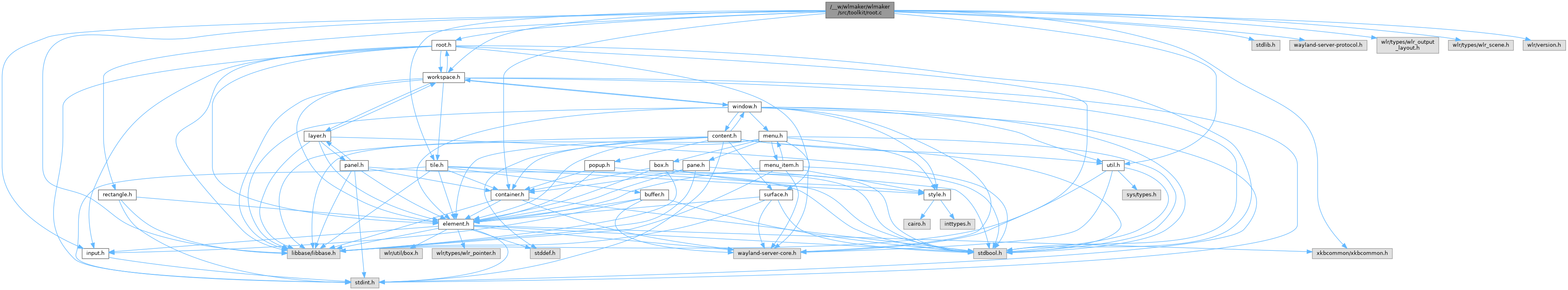

Include dependency graph for root.c:

Classes
struct	_wlmtk_root_t

Functions
static void	_wlmtk_root_switch_to_workspace (wlmtk_root_t *root_ptr, wlmtk_workspace_t *workspace_ptr)
static void	_wlmtk_root_enumerate_workspaces (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmtk_root_destroy_workspace (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static bool	_wlmtk_root_element_pointer_motion (wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
static bool	_wlmtk_root_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static bool	_wlmtk_root_element_pointer_axis (wlmtk_element_t *element_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)
static bool	_wlmtk_root_element_keyboard_event (wlmtk_element_t *element_ptr, struct wlr_keyboard_key_event *wlr_keyboard_key_event_ptr, const xkb_keysym_t *key_syms, size_t key_syms_count, uint32_t modifiers)
static void	_wlmtk_root_handle_output_layout_change (struct wl_listener *listener_ptr, void *data_ptr)
wlmtk_root_t *	wlmtk_root_create (struct wlr_scene *wlr_scene_ptr, struct wlr_output_layout *wlr_output_layout_ptr)
void	wlmtk_root_destroy (wlmtk_root_t *root_ptr)
wlmtk_root_events_t *	wlmtk_root_events (wlmtk_root_t *root_ptr)
bool	wlmtk_root_pointer_motion (wlmtk_root_t *root_ptr, double x, double y, uint32_t time_msec, wlmtk_pointer_t *pointer_ptr)
bool	wlmtk_root_pointer_button (wlmtk_root_t *root_ptr, const struct wlr_pointer_button_event *event_ptr)
bool	wlmtk_root_pointer_axis (wlmtk_root_t *root_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)
void	wlmtk_root_add_workspace (wlmtk_root_t *root_ptr, wlmtk_workspace_t *workspace_ptr)
void	wlmtk_root_remove_workspace (wlmtk_root_t *root_ptr, wlmtk_workspace_t *workspace_ptr)
wlmtk_workspace_t *	wlmtk_root_get_current_workspace (wlmtk_root_t *root_ptr)
void	wlmtk_root_switch_to_next_workspace (wlmtk_root_t *root_ptr)
void	wlmtk_root_switch_to_previous_workspace (wlmtk_root_t *root_ptr)
void	wlmtk_root_for_each_workspace (wlmtk_root_t *root_ptr, void(*func)(bs_dllist_node_t *dlnode_ptr, void *ud_ptr), void *ud_ptr)
bool	wlmtk_root_lock (wlmtk_root_t *root_ptr, wlmtk_element_t *element_ptr)
bool	wlmtk_root_unlock (wlmtk_root_t *root_ptr, wlmtk_element_t *element_ptr)
bool	wlmtk_root_locked (wlmtk_root_t *root_ptr)
void	wlmtk_root_lock_unreference (wlmtk_root_t *root_ptr, wlmtk_element_t *element_ptr)
wlmtk_element_t *	wlmtk_root_element (wlmtk_root_t *root_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)
static void	test_workspaces (bs_test_t *test_ptr)
static void	test_pointer_button (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmtk_root_element_vmt
const bs_test_case_t	wlmtk_root_test_cases []

Detailed Description

Copyright

Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_root_destroy_workspace()

void _wlmtk_root_destroy_workspace ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Callback for bs_dllist_for_each: Destroys the workspace.

_wlmtk_root_element_keyboard_event()

bool _wlmtk_root_element_keyboard_event ( wlmtk_element_t *  element_ptr, struct wlr_keyboard_key_event *  wlr_keyboard_key_event_ptr, const xkb_keysym_t *  key_syms, size_t  key_syms_count, uint32_t  modifiers  )

static

Implements wlmtk_element_vmt_t::keyboard_event. Handle keyboard events.

When locked, the root container will forward the events strictly only to the lock container.

Parameters

element_ptr
wlr_keyboard_key_event_ptr
key_syms
key_syms_count
modifiers

Returns

true if the axis event was handled.

_wlmtk_root_element_pointer_axis()

bool _wlmtk_root_element_pointer_axis ( wlmtk_element_t *  element_ptr, struct wlr_pointer_axis_event *  wlr_pointer_axis_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_axis. Handle axis events.

When locked, the root container will forward the events strictly only to the lock container.

Parameters

element_ptr
wlr_pointer_axis_event_ptr

Returns

true if the axis event was handled.

_wlmtk_root_element_pointer_button()

bool _wlmtk_root_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_button. Handle button events.

When locked, the root container will forward the events strictly only to the lock container.

Parameters

element_ptr
button_event_ptr

Returns

true if the button was handled.

_wlmtk_root_element_pointer_motion()

bool _wlmtk_root_element_pointer_motion ( wlmtk_element_t *  element_ptr, wlmtk_pointer_motion_event_t *  motion_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_motion. Handle pointer moves.

When locked, the root container will forward the events strictly only to the lock container.

Parameters

element_ptr
motion_event_ptr

Returns

Whether the move was accepted.

_wlmtk_root_enumerate_workspaces()

void _wlmtk_root_enumerate_workspaces ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Callback for bs_dllist_for_each: Enumerates the workspace.

_wlmtk_root_handle_output_layout_change()

void _wlmtk_root_handle_output_layout_change ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlr_output_layout::events::change. Triggers when the output layout changes, and we use this for updating the curtain and the layout in each workspace.

Parameters

listener_ptr
data_ptr

_wlmtk_root_switch_to_workspace()

void _wlmtk_root_switch_to_workspace ( wlmtk_root_t *  root_ptr, wlmtk_workspace_t *  workspace_ptr  )

static

Switches to workspace_ptr as the current workspace.

Parameters

root_ptr
workspace_ptr

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Exercises ctor and dtor.

test_pointer_button()

void test_pointer_button ( bs_test_t *  test_ptr )

static

Tests wlmtk_root_pointer_button.

test_workspaces()

void test_workspaces ( bs_test_t *  test_ptr )

static

Exercises workspace adding and removal.

wlmtk_root_add_workspace()

void wlmtk_root_add_workspace	(	wlmtk_root_t *	root_ptr,
		wlmtk_workspace_t *	workspace_ptr
	)

Adds a workspace.

Parameters

root_ptr
workspace_ptr

wlmtk_root_create()

wlmtk_root_t * wlmtk_root_create	(	struct wlr_scene *	wlr_scene_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr
	)

Creates the root element.

Parameters

wlr_scene_ptr
wlr_output_layout_ptr

Returns

Handle of the root element or NULL on error.

wlmtk_root_destroy()

void wlmtk_root_destroy

(

wlmtk_root_t *

root_ptr

)

Destroys the root element.

Parameters

root_ptr

wlmtk_root_element()

wlmtk_element_t * wlmtk_root_element

(

wlmtk_root_t *

root_ptr

)

Returns

pointer to the root's wlmtk_element_t. (Temporary)

wlmtk_root_events()

wlmtk_root_events_t * wlmtk_root_events

(

wlmtk_root_t *

root_ptr

)

Gets the set of events available in root. To bind listeners to.

Parameters

root_ptr

Returns

Pointer to wlmtk_root_t::events.

wlmtk_root_for_each_workspace()

void wlmtk_root_for_each_workspace	(	wlmtk_root_t *	root_ptr,
		void(*)(bs_dllist_node_t *dlnode_ptr, void *ud_ptr)	func,
		void *	ud_ptr
	)

Runs |func()| for each workspace.

Parameters

root_ptr
func
ud_ptr

wlmtk_root_get_current_workspace()

wlmtk_workspace_t * wlmtk_root_get_current_workspace

(

wlmtk_root_t *

root_ptr

)

Returns a pointer to the currently-active workspace.

Parameters

root_ptr

wlmtk_root_lock()

bool wlmtk_root_lock	(	wlmtk_root_t *	root_ptr,
		wlmtk_element_t *	element_ptr
	)

Locks the root, using the provided element.

The root must not be locked already. If locked successfully, the root will keep a reference to element_ptr. The lock must call wlmtk_root_unlock to unlock root, and for releasing the reference.

Parameters

root_ptr
element_ptr

Returns

Whether the lock was established.

wlmtk_root_lock_unreference()

void wlmtk_root_lock_unreference	(	wlmtk_root_t *	root_ptr,
		wlmtk_element_t *	element_ptr
	)

Releases the lock reference, but keeps the root locked.

This is in accordance with the session lock protocol specification [1], stating the session should remain locked if the client dies. This call is a no-op if element_ptr is not currently the lock of root_ptr.

[1] https://wayland.app/protocols/ext-session-lock-v1

Parameters

root_ptr
element_ptr

wlmtk_root_locked()

bool wlmtk_root_locked

(

wlmtk_root_t *

root_ptr

)

Returns

Whether root is locked.

wlmtk_root_pointer_axis()

bool wlmtk_root_pointer_axis	(	wlmtk_root_t *	root_ptr,
		struct wlr_pointer_axis_event *	wlr_pointer_axis_event_ptr
	)

Handles a pointer axis event.

Parameters

root_ptr
wlr_pointer_axis_event_ptr

Returns

Whether the axis event was consumed.

wlmtk_root_pointer_button()

bool wlmtk_root_pointer_button	(	wlmtk_root_t *	root_ptr,
		const struct wlr_pointer_button_event *	event_ptr
	)

Handles a button event: Translates to button down/up/click/dblclick events.

Each button activity (button pressed or released) will directly trigger a corresponding BUTTON_DOWN or BUTTON_UP event. Depending on timing and motion, a "released" event may also triccer a CLICK, DOUBLE_CLICK or DRAG event. These events will be forwarded to the event currently having pointer focus.

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Implement DOUBLE_CLICK and DRAG events, and make it well tested.

Parameters

root_ptr
event_ptr

Returns

Whether the button was consumed.

wlmtk_root_pointer_motion()

bool wlmtk_root_pointer_motion	(	wlmtk_root_t *	root_ptr,
		double	x,
		double	y,
		uint32_t	time_msec,
		wlmtk_pointer_t *	pointer_ptr
	)

Handles a pointer motion event.

Parameters

root_ptr
x
y
time_msec
pointer_ptr

Returns

Whether there was an element under the pointer.

wlmtk_root_remove_workspace()

void wlmtk_root_remove_workspace	(	wlmtk_root_t *	root_ptr,
		wlmtk_workspace_t *	workspace_ptr
	)

Removes the workspace.

Parameters

root_ptr
workspace_ptr

wlmtk_root_switch_to_next_workspace()

void wlmtk_root_switch_to_next_workspace

(

wlmtk_root_t *

root_ptr

)

Switches to the next workspace.

Parameters

root_ptr

wlmtk_root_switch_to_previous_workspace()

void wlmtk_root_switch_to_previous_workspace

(

wlmtk_root_t *

root_ptr

)

Switches to the previous workspace.

Parameters

root_ptr

wlmtk_root_unlock()

bool wlmtk_root_unlock	(	wlmtk_root_t *	root_ptr,
		wlmtk_element_t *	element_ptr
	)

Unlocks the root, and releases the reference from wlmtk_root_lock.

Unlocking can only be done with element_ptr matching the element_ptr argument from wlmtk_root_lock.

Parameters

root_ptr
element_ptr

Returns

Whether the lock was lifted.

Variable Documentation

_wlmtk_root_element_vmt

const wlmtk_element_vmt_t _wlmtk_root_element_vmt

static

Initial value:

= {
    .pointer_motion = _wlmtk_root_element_pointer_motion,
    .pointer_button = _wlmtk_root_element_pointer_button,
    .pointer_axis = _wlmtk_root_element_pointer_axis,
    .keyboard_event = _wlmtk_root_element_keyboard_event,
}

Virtual method table for the container's super class: Element.

wlmtk_root_test_cases

const bs_test_case_t wlmtk_root_test_cases[]

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 1, "workspaces", test_workspaces },
    { 1, "pointer_button", test_pointer_button },
    { 0, NULL, NULL }
}

Unit test cases.
