panel.c File Reference

#include "panel.h"
#include <libbase/libbase.h>
#include <stdlib.h>
#include <string.h>
#include <wlr/util/edges.h>
#include "test.h"

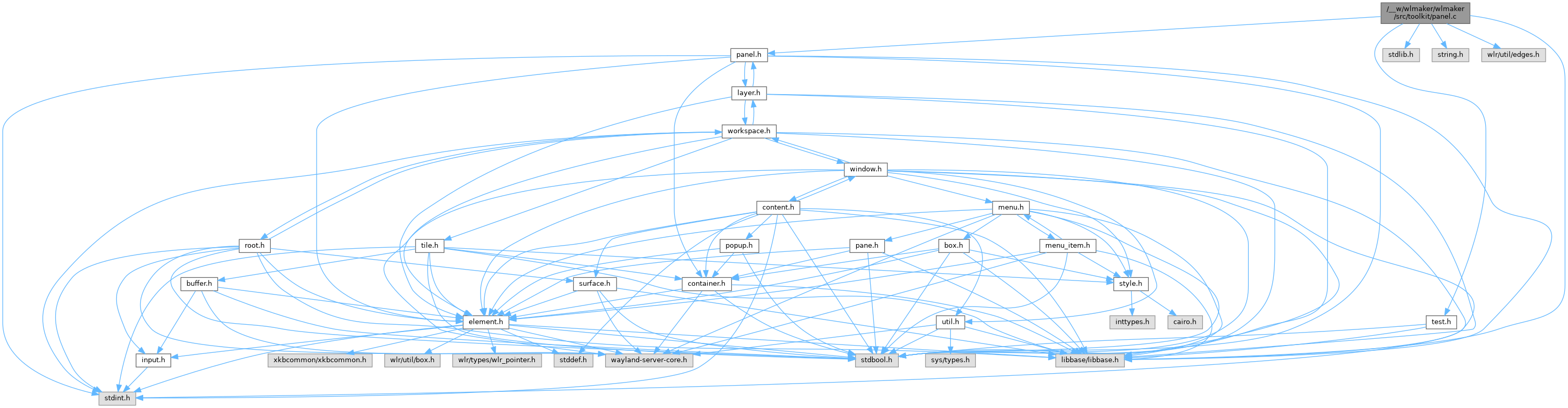

Include dependency graph for panel.c:

Functions
bool	wlmtk_panel_init (wlmtk_panel_t *panel_ptr, const wlmtk_panel_positioning_t *positioning_ptr)
void	wlmtk_panel_fini (wlmtk_panel_t *panel_ptr)
wlmtk_panel_vmt_t	wlmtk_panel_extend (wlmtk_panel_t *panel_ptr, const wlmtk_panel_vmt_t *panel_vmt_ptr)
wlmtk_element_t *	wlmtk_panel_element (wlmtk_panel_t *panel_ptr)
bs_dllist_node_t *	wlmtk_dlnode_from_panel (wlmtk_panel_t *panel_ptr)
wlmtk_panel_t *	wlmtk_panel_from_dlnode (bs_dllist_node_t *dlnode_ptr)
void	wlmtk_panel_set_layer (wlmtk_panel_t *panel_ptr, wlmtk_layer_t *layer_ptr)
wlmtk_layer_t *	wlmtk_panel_get_layer (wlmtk_panel_t *panel_ptr)
void	wlmtk_panel_set_layer_output (wlmtk_panel_t *panel_ptr, wlmtk_layer_output_t *layer_output_ptr)
wlmtk_layer_output_t *	wlmtk_panel_get_layer_output (wlmtk_panel_t *panel_ptr)
void	wlmtk_panel_commit (wlmtk_panel_t *panel_ptr, uint32_t serial, const wlmtk_panel_positioning_t *positioning_ptr)
struct wlr_box	wlmtk_panel_compute_dimensions (const wlmtk_panel_t *panel_ptr, const struct wlr_box *full_area_ptr, struct wlr_box *usable_area_ptr)
static void	_wlmtk_fake_panel_element_destroy (wlmtk_element_t *element_ptr)
static uint32_t	_wlmtk_fake_panel_request_size (wlmtk_panel_t *panel_ptr, int width, int height)
wlmtk_fake_panel_t *	wlmtk_fake_panel_create (const wlmtk_panel_positioning_t *positioning_ptr)
void	wlmtk_fake_panel_destroy (wlmtk_fake_panel_t *fake_panel_ptr)
static void	test_init_fini (bs_test_t *test_ptr)
static void	test_compute_dimensions (bs_test_t *test_ptr)
static void	test_compute_dimensions_exclusive (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmtk_fake_panel_element_vmt
static const wlmtk_panel_vmt_t	_wlmtk_fake_panel_vmt
const bs_test_case_t	wlmtk_panel_test_cases []

Detailed Description

Copyright

Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_fake_panel_element_destroy()

void _wlmtk_fake_panel_element_destroy ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::destroy for the fake panel.

_wlmtk_fake_panel_request_size()

uint32_t _wlmtk_fake_panel_request_size ( wlmtk_panel_t *  panel_ptr, int  width, int  height  )

static

Fake implementation of wlmtk_panel_vmt_t::request_size.

test_compute_dimensions()

void test_compute_dimensions ( bs_test_t *  test_ptr )

static

Verifies wlmtk_panel_compute_dimensions.

test_compute_dimensions_exclusive()

void test_compute_dimensions_exclusive ( bs_test_t *  test_ptr )

static

Verifies dimension computation with an exclusive_zone.

test_init_fini()

void test_init_fini ( bs_test_t *  test_ptr )

static

Tests setup, teardown and some accessors.

wlmtk_dlnode_from_panel()

bs_dllist_node_t * wlmtk_dlnode_from_panel

(

wlmtk_panel_t *

panel_ptr

)

Returns

Pointer to wlmtk_panel_t::dlnode.

wlmtk_fake_panel_create()

wlmtk_fake_panel_t * wlmtk_fake_panel_create

(

const wlmtk_panel_positioning_t *

positioning_ptr

)

Creates a fake panel, for tests.

wlmtk_fake_panel_destroy()

void wlmtk_fake_panel_destroy

(

wlmtk_fake_panel_t *

fake_panel_ptr

)

Destroys the fake panel.

wlmtk_panel_commit()

void wlmtk_panel_commit	(	wlmtk_panel_t *	panel_ptr,
		uint32_t	serial,
		const wlmtk_panel_positioning_t *	positioning_ptr
	)

Reports a commit for the given serial, and updates positioning.

Parameters

panel_ptr
serial
positioning_ptr

wlmtk_panel_compute_dimensions()

struct wlr_box wlmtk_panel_compute_dimensions	(	const wlmtk_panel_t *	panel_ptr,
		const struct wlr_box *	full_area_ptr,
		struct wlr_box *	usable_area_ptr
	)

Computes the requested dimension for the panel.

Parameters

panel_ptr
full_area_ptr
usable_area_ptr	Are that remains usable from the output and layer after factoring in other panels. *usable_area_ptr will be updated with this panel's exclusive area (if any) subtracted.

Returns

A wlr_box with the requested position and size for this panel. The caller is advised to issue a call to wlmtk_panel_request_size call and update the panel element's position with the box' information.

wlmtk_panel_element()

wlmtk_element_t * wlmtk_panel_element

(

wlmtk_panel_t *

panel_ptr

)

Returns

pointer to the super wlmtk_element_t of the panel.

wlmtk_panel_extend()

wlmtk_panel_vmt_t wlmtk_panel_extend	(	wlmtk_panel_t *	panel_ptr,
		const wlmtk_panel_vmt_t *	panel_vmt_ptr
	)

Extends the panel by the specified virtual methods.

Parameters

panel_ptr
panel_vmt_ptr

Returns

The original virtual method table.

wlmtk_panel_fini()

void wlmtk_panel_fini

(

wlmtk_panel_t *

panel_ptr

)

Un-initializes the panel.

Parameters

panel_ptr

wlmtk_panel_from_dlnode()

wlmtk_panel_t * wlmtk_panel_from_dlnode

(

bs_dllist_node_t *

dlnode_ptr

)

Returns

Pointer to wlmtk_panel_t for the given dlnode.

wlmtk_panel_get_layer()

wlmtk_layer_t * wlmtk_panel_get_layer

(

wlmtk_panel_t *

panel_ptr

)

Returns

the wlmtk_layer_t this panel belongs to. Or NULL, if unmapped.

wlmtk_panel_get_layer_output()

wlmtk_layer_output_t * wlmtk_panel_get_layer_output

(

wlmtk_panel_t *

panel_ptr

)

Returns

the wlmtk_layer_output_t the panel belongs to. NULL if unmapped.

wlmtk_panel_init()

bool wlmtk_panel_init	(	wlmtk_panel_t *	panel_ptr,
		const wlmtk_panel_positioning_t *	positioning_ptr
	)

Initializes the panel.

Parameters

panel_ptr
positioning_ptr

Returns

true on success.

wlmtk_panel_set_layer()

void wlmtk_panel_set_layer	(	wlmtk_panel_t *	panel_ptr,
		wlmtk_layer_t *	layer_ptr
	)

Sets the layer for the panel_ptr.

This method must only be called from wlmtk_layer_t.

Parameters

panel_ptr
layer_ptr

wlmtk_panel_set_layer_output()

void wlmtk_panel_set_layer_output	(	wlmtk_panel_t *	panel_ptr,
		wlmtk_layer_output_t *	layer_output_ptr
	)

Sets the layer output for the panel_ptr.

This method must only be called from wlmtk_layer_output_t.

Parameters

panel_ptr
layer_output_ptr

Variable Documentation

_wlmtk_fake_panel_element_vmt

const wlmtk_element_vmt_t _wlmtk_fake_panel_element_vmt

static

Initial value:

= {
    .destroy = _wlmtk_fake_panel_element_destroy
}

Virtual methods of the fake panel's element superclass.

_wlmtk_fake_panel_vmt

const wlmtk_panel_vmt_t _wlmtk_fake_panel_vmt

static

Initial value:

= {
    .request_size = _wlmtk_fake_panel_request_size
}

Virtual methods of the fake panel.

wlmtk_panel_test_cases

const bs_test_case_t wlmtk_panel_test_cases[]

Initial value:

= {
    { 1, "init_fini", test_init_fini },
    { 1, "compute_dimensions", test_compute_dimensions },
    { 1, "compute_dimensions_exclusive", test_compute_dimensions_exclusive },
    { 0, NULL, NULL }
}

Unit test cases of panel.
