manager.c File Reference

#include "manager.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdlib.h>
#include <toolkit/toolkit.h>
#include <wayland-server-protocol.h>
#include <wlr/backend.h>
#include <wlr/types/wlr_input_device.h>
#include <wlr/types/wlr_keyboard.h>
#include <wlr/types/wlr_seat.h>
#include <xkbcommon/xkbcommon-keysyms.h>
#include "cursor.h"
#include "keyboard.h"
#include "pointer.h"

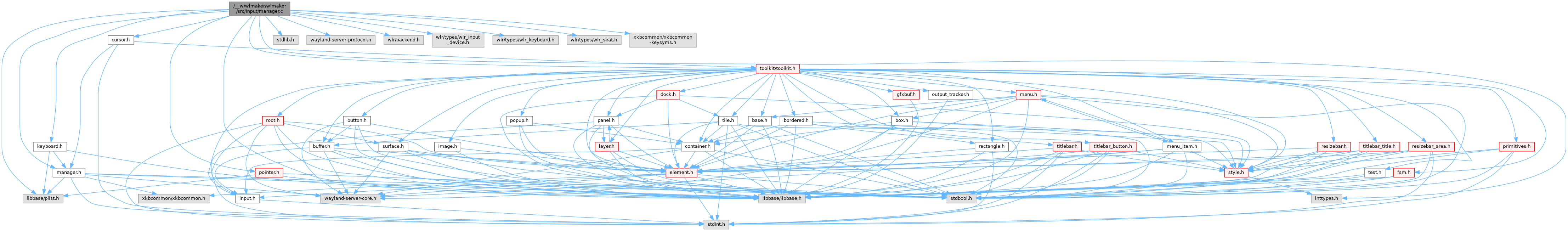

Include dependency graph for manager.c:

Classes
struct	_wlmim_t
struct	wlmim_device
struct	_wlmim_keybinding_t
struct	_wlmim_process_arg

Functions
static void	_wlmim_handle_new_input_device (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_handle_destroy_input_device (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmim_device_register (wlmim_t *input_manager_ptr, struct wlr_input_device *wlr_input_device_ptr, void *handle_ptr)
static void	_wlmim_device_unregister (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmim_device_update_capabilities (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static bool	_wlmim_process_keybinding (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmim_unbind_node (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
wlmim_t *	wlmim_input_manager_create (struct wlr_backend *wlr_backend_ptr, struct wlr_output_layout *wlr_output_layout_ptr, struct wlr_seat *wlr_seat_ptr, bspl_dict_t *config_dict_ptr, const struct wlmim_cursor_style *cursor_style_ptr, wlmtk_root_t *root_ptr)
void	wlmim_input_manager_destroy (wlmim_t *input_manager_ptr)
struct wlmim_events *	wlmim_events (wlmim_t *input_manager_ptr)
struct wlr_cursor *	wlmim_wlr_cursor (wlmim_t *input_manager_ptr)
void	wlmim_report_activity (wlmim_t *input_manager_ptr)
void	wlmim_set_keyboard_group_index (wlmim_t *input_manager_ptr, uint32_t index)
uint32_t	wlmim_get_keyboard_group_index (wlmim_t *input_manager_ptr)
wlmim_keybinding_t *	wlmim_bind_key (wlmim_t *input_manager_ptr, const struct wlmim_keybinding_combo *keybinding_combo_ptr, wlmim_keybinding_callback_t callback)
void	wlmim_unbind_key (wlmim_t *input_manager_ptr, wlmim_keybinding_t *keybinding_ptr)
bool	wlmim_process_key (wlmim_t *im_ptr, xkb_keysym_t keysym, uint32_t modifiers)
static void	_wlmim_test_bind (bs_test_t *test_ptr)
bool	_wlmim_test_binding_callback (const struct wlmim_keybinding_combo *keybinding_combo_ptr)

Variables
const uint32_t	wlmim_modifiers_default_mask
static const bs_test_case_t	_wlmim_test_cases []
const bs_test_set_t	wlmim_test_set

Detailed Description

Copyright

Copyright (c) 2026 Google LLC and Philipp Kaeser

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmim_device_register()

bool _wlmim_device_register ( wlmim_t *  input_manager_ptr, struct wlr_input_device *  wlr_input_device_ptr, void *  handle_ptr  )

static

Creates and registers the device node.

Parameters

input_manager_ptr
wlr_input_device_ptr
handle_ptr

Returns

true on success.

_wlmim_device_unregister()

void _wlmim_device_unregister ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Unregisters and destroys the device node.

Parameters

dlnode_ptr
ud_ptr

_wlmim_device_update_capabilities()

void _wlmim_device_update_capabilities ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Updates the capabilities bitmask. Iterator for bs_dllist_for_each.

Parameters

dlnode_ptr
ud_ptr	Points to a uint32_t capabilities bitmask.

_wlmim_handle_destroy_input_device()

void _wlmim_handle_destroy_input_device ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal raised by wlr_input_device.

Parameters

listener_ptr
data_ptr

_wlmim_handle_new_input_device()

void _wlmim_handle_new_input_device ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_input signal raised by wlr_backend.

Parameters

listener_ptr
data_ptr

_wlmim_process_keybinding()

bool _wlmim_process_keybinding ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Process one keybinding, as iterator to bs_dllist_all.

Parameters

dlnode_ptr
ud_ptr

Returns

true if the keybinding matched, and the callback returned true.

_wlmim_test_bind()

void _wlmim_test_bind ( bs_test_t *  test_ptr )

static

Tests key bindings.

_wlmim_test_binding_callback()

bool _wlmim_test_binding_callback

(

const struct wlmim_keybinding_combo *

keybinding_combo_ptr

)

Test helper: Callback for a keybinding.

_wlmim_unbind_node()

void _wlmim_unbind_node ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Unbinds keybinding at the node, as iterator to bs_dllist_for_each.

wlmim_bind_key()

wlmim_keybinding_t * wlmim_bind_key	(	wlmim_t *	input_manager_ptr,
		const struct wlmim_keybinding_combo *	key_combo_ptr,
		wlmim_keybinding_callback_t	callback
	)

Binds a particular key combination to a callback.

Parameters

input_manager_ptr
key_combo_ptr
callback

Returns

The key binding handle or NULL on error.

wlmim_events()

struct wlmim_events * wlmim_events

(

wlmim_t *

input_manager_ptr

)

Returns

Pointer to wlmim_t::events.

wlmim_get_keyboard_group_index()

uint32_t wlmim_get_keyboard_group_index

(

wlmim_t *

input_manager_ptr

)

Returns

wlmim_t::last_keyboard_group_index.

wlmim_input_manager_create()

wlmim_t * wlmim_input_manager_create	(	struct wlr_backend *	wlr_backend_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr,
		struct wlr_seat *	wlr_seat_ptr,
		bspl_dict_t *	config_dict_ptr,
		const struct wlmim_cursor_style *	cursor_style_ptr,
		wlmtk_root_t *	root_ptr
	)

Creates an input manager: Registers input devices and ensures event routing will be set up as desired.

Parameters

wlr_backend_ptr
wlr_output_layout_ptr
wlr_seat_ptr
config_dict_ptr
cursor_style_ptr
root_ptr

Returns

Pointer to the input manager handle.

wlmim_input_manager_destroy()

void wlmim_input_manager_destroy

(

wlmim_t *

input_manager_ptr

)

Destroys the input manager.

Parameters

input_manager_ptr

wlmim_process_key()

bool wlmim_process_key	(	wlmim_t *	input_manager_ptr,
		xkb_keysym_t	keysym,
		uint32_t	modifiers
	)

Processes key combo: Call back if a matching binding is found.

Parameters

input_manager_ptr
keysym
modifiers

Returns

true if a binding was found AND the callback returned true.

wlmim_report_activity()

void wlmim_report_activity

(

wlmim_t *

input_manager_ptr

)

Reports input activity. Used to reset idle timers.

Parameters

input_manager_ptr

wlmim_set_keyboard_group_index()

void wlmim_set_keyboard_group_index	(	wlmim_t *	input_manager_ptr,
		uint32_t	index
	)

Sets wlmim_t::last_keyboard_group_index.

wlmim_unbind_key()

void wlmim_unbind_key	(	wlmim_t *	input_manager_ptr,
		wlmim_keybinding_t *	keybinding_ptr
	)

Releases a key binding.

See also

wlmim_bind_key.

Parameters

input_manager_ptr
keybinding_ptr

wlmim_wlr_cursor()

struct wlr_cursor * wlmim_wlr_cursor

(

wlmim_t *

input_manager_ptr

)

Returns

Pointer to struct wlr_cursor of wlmim_t::cursor_ptr.

Variable Documentation

_wlmim_test_cases

const bs_test_case_t _wlmim_test_cases[]

static

Initial value:

= {
    { true, "bind", _wlmim_test_bind },

}

Test cases for the input manager.

wlmim_modifiers_default_mask

const uint32_t wlmim_modifiers_default_mask

Initial value:

= (
    WLR_MODIFIER_SHIFT |

    WLR_MODIFIER_CTRL |
    WLR_MODIFIER_ALT |
    WLR_MODIFIER_MOD2 |
    WLR_MODIFIER_MOD3 |
    WLR_MODIFIER_LOGO |
    WLR_MODIFIER_MOD5)

All modifiers to use by default.

wlmim_test_set

const bs_test_set_t wlmim_test_set

Initial value:

= BS_TEST_SET(
    true, "server", _wlmim_test_cases)

Unit test set.
