manager.h File Reference

#include <stdbool.h>
#include <stdint.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <wayland-server-core.h>
#include <xkbcommon/xkbcommon.h>

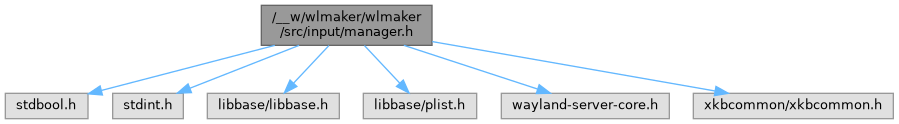

Include dependency graph for manager.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	wlmim_events
struct	wlmim_keybinding_combo

Typedefs
typedef struct _wlmim_t	wlmim_t
typedef struct _wlmtk_root_t	wlmtk_root_t
typedef struct _wlmim_keybinding_t	wlmim_keybinding_t
typedef bool(*	wlmim_keybinding_callback_t) (const struct wlmim_keybinding_combo *kc)

Functions
wlmim_t *	wlmim_input_manager_create (struct wlr_backend *wlr_backend_ptr, struct wlr_output_layout *wlr_output_layout_ptr, struct wlr_seat *wlr_seat_ptr, bspl_dict_t *config_dict_ptr, const struct wlmim_cursor_style *cursor_style_ptr, wlmtk_root_t *root_ptr)
void	wlmim_input_manager_destroy (wlmim_t *input_manager_ptr)
struct wlmim_events *	wlmim_events (wlmim_t *input_manager_ptr)
struct wlr_cursor *	wlmim_wlr_cursor (wlmim_t *input_manager_ptr)
void	wlmim_report_activity (wlmim_t *input_manager_ptr)
void	wlmim_set_keyboard_group_index (wlmim_t *input_manager_ptr, uint32_t index)
uint32_t	wlmim_get_keyboard_group_index (wlmim_t *input_manager_ptr)
wlmim_keybinding_t *	wlmim_bind_key (wlmim_t *input_manager_ptr, const struct wlmim_keybinding_combo *key_combo_ptr, wlmim_keybinding_callback_t callback)
void	wlmim_unbind_key (wlmim_t *input_manager_ptr, wlmim_keybinding_t *keybinding_ptr)
bool	wlmim_process_key (wlmim_t *input_manager_ptr, xkb_keysym_t keysym, uint32_t modifiers)

Variables
const uint32_t	wlmim_modifiers_default_mask
const bs_test_set_t	wlmim_test_set

Detailed Description

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Minor cleanups:

• Make wlr_seat (and similar) as accessors, and use in device modules.
• Add abstract device module with a dtor method.
• Make the config dict parsing part of the file here.

Copyright

Copyright (c) 2026 Google LLC and Philipp Kaeser

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmim_keybinding_callback_t

typedef bool(* wlmim_keybinding_callback_t) (const struct wlmim_keybinding_combo *kc)

Callback for a key binding.

Parameters

kc	The key combo that triggered the callback.

Returns

true if the key can be considered "consumed".

wlmim_keybinding_t

typedef struct _wlmim_keybinding_t wlmim_keybinding_t

Handle for a key binding.

wlmim_t

typedef struct _wlmim_t wlmim_t

Forward declaration.

wlmtk_root_t

typedef struct _wlmtk_root_t wlmtk_root_t

Forward declaration.

Function Documentation

wlmim_bind_key()

wlmim_keybinding_t * wlmim_bind_key	(	wlmim_t *	input_manager_ptr,
		const struct wlmim_keybinding_combo *	key_combo_ptr,
		wlmim_keybinding_callback_t	callback
	)

Binds a particular key combination to a callback.

Parameters

input_manager_ptr
key_combo_ptr
callback

Returns

The key binding handle or NULL on error.

wlmim_events()

struct wlmim_events * wlmim_events

(

wlmim_t *

input_manager_ptr

)

Returns

Pointer to wlmim_t::events.

wlmim_get_keyboard_group_index()

uint32_t wlmim_get_keyboard_group_index

(

wlmim_t *

input_manager_ptr

)

Returns

wlmim_t::last_keyboard_group_index.

wlmim_input_manager_create()

wlmim_t * wlmim_input_manager_create	(	struct wlr_backend *	wlr_backend_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr,
		struct wlr_seat *	wlr_seat_ptr,
		bspl_dict_t *	config_dict_ptr,
		const struct wlmim_cursor_style *	cursor_style_ptr,
		wlmtk_root_t *	root_ptr
	)

Creates an input manager: Registers input devices and ensures event routing will be set up as desired.

Parameters

wlr_backend_ptr
wlr_output_layout_ptr
wlr_seat_ptr
config_dict_ptr
cursor_style_ptr
root_ptr

Returns

Pointer to the input manager handle.

wlmim_input_manager_destroy()

void wlmim_input_manager_destroy

(

wlmim_t *

input_manager_ptr

)

Destroys the input manager.

Parameters

input_manager_ptr

wlmim_process_key()

bool wlmim_process_key	(	wlmim_t *	input_manager_ptr,
		xkb_keysym_t	keysym,
		uint32_t	modifiers
	)

Processes key combo: Call back if a matching binding is found.

Parameters

input_manager_ptr
keysym
modifiers

Returns

true if a binding was found AND the callback returned true.

wlmim_report_activity()

void wlmim_report_activity

(

wlmim_t *

input_manager_ptr

)

Reports input activity. Used to reset idle timers.

Parameters

input_manager_ptr

wlmim_set_keyboard_group_index()

void wlmim_set_keyboard_group_index	(	wlmim_t *	input_manager_ptr,
		uint32_t	index
	)

Sets wlmim_t::last_keyboard_group_index.

wlmim_unbind_key()

void wlmim_unbind_key	(	wlmim_t *	input_manager_ptr,
		wlmim_keybinding_t *	keybinding_ptr
	)

Releases a key binding.

See also

wlmim_bind_key.

Parameters

input_manager_ptr
keybinding_ptr

wlmim_wlr_cursor()

struct wlr_cursor * wlmim_wlr_cursor

(

wlmim_t *

input_manager_ptr

)

Returns

Pointer to struct wlr_cursor of wlmim_t::cursor_ptr.

Variable Documentation

wlmim_modifiers_default_mask

const uint32_t wlmim_modifiers_default_mask

extern

All modifiers to use by default.

wlmim_test_set

const bs_test_set_t wlmim_test_set

extern

Unit test set.
