layer_panel.c File Reference

#include "layer_panel.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <stdbool.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-server-protocol.h>
#include <wlr/types/wlr_compositor.h>
#include <wlr/types/wlr_layer_shell_v1.h>
#include <wlr/util/edges.h>
#include "toolkit/toolkit.h"
#include "wlr-layer-shell-unstable-v1-protocol.h"
#include "xdg_popup.h"

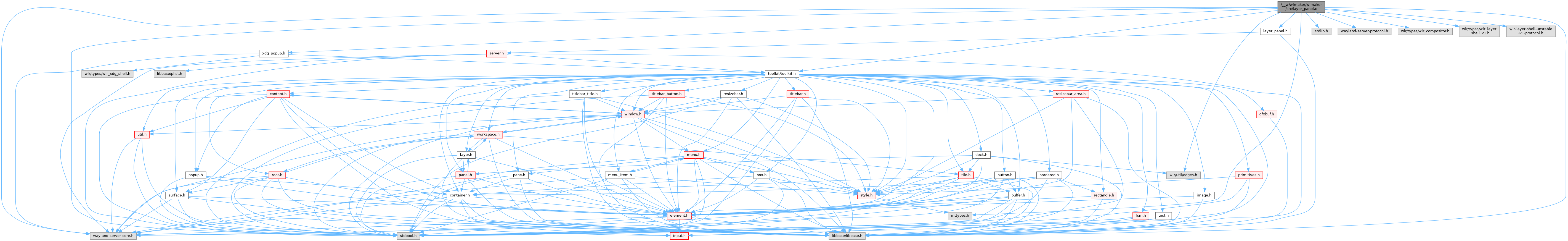

Include dependency graph for layer_panel.c:

Classes
struct	_wlmaker_layer_panel_t

Functions
wlmaker_layer_panel_t *	_wlmaker_layer_panel_create_from_surface (struct wlr_layer_surface_v1 *wlr_layer_surface_v1_ptr, wlmaker_server_t *server_ptr, wlmtk_surface_t *wlmtk_surface_ptr)
static void	_wlmaker_layer_panel_destroy (wlmaker_layer_panel_t *layer_panel_ptr)
static void	_wlmaker_layer_panel_element_destroy (wlmtk_element_t *element_ptr)
static bool	_wlmaker_layer_panel_apply_keyboard (wlmaker_layer_panel_t *layer_panel_ptr, enum zwlr_layer_surface_v1_keyboard_interactivity interactivity, enum zwlr_layer_shell_v1_layer zwlr_layer)
static bool	_wlmaker_layer_panel_apply_layer (wlmaker_layer_panel_t *layer_panel_ptr, enum zwlr_layer_shell_v1_layer zwlr_layer)
static uint32_t	_wlmaker_layer_panel_request_size (wlmtk_panel_t *panel_ptr, int width, int height)
static void	_wlmaker_layer_panel_handle_surface_commit (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_layer_panel_handle_surface_map (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_layer_panel_handle_surface_unmap (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_layer_panel_handle_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_layer_panel_handle_new_popup (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_layer_panel_t *	wlmaker_layer_panel_create (struct wlr_layer_surface_v1 *wlr_layer_surface_v1_ptr, wlmaker_server_t *server_ptr)
wlmtk_workspace_layer_t	_wlmaker_layer_from_zwlr_layer (enum zwlr_layer_shell_v1_layer zwlr_layer)
static void	test_create_destroy (bs_test_t *test_ptr)

Variables
static const wlmtk_panel_vmt_t	_wlmaker_layer_panel_vmt
static const wlmtk_element_vmt_t	_wlmaker_layer_panel_element_vmt
static const bs_test_case_t	wlmaker_layer_panel_test_cases []
const bs_test_set_t	wlmaker_layer_panel_test_set

Detailed Description

Copyright

Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_layer_from_zwlr_layer()

wlmtk_workspace_layer_t _wlmaker_layer_from_zwlr_layer

(

enum zwlr_layer_shell_v1_layer

zwlr_layer

)

Returns

Layer number, translated from protocol value. -1 on error.

_wlmaker_layer_panel_apply_keyboard()

bool _wlmaker_layer_panel_apply_keyboard ( wlmaker_layer_panel_t *  layer_panel_ptr, enum zwlr_layer_surface_v1_keyboard_interactivity  interactivity, enum zwlr_layer_shell_v1_layer  zwlr_layer  )

static

Applies the requested keyboard setting.

Supports 'NONE' and 'EXCLUSIVE' interactivity, but the latter only on top and overlay layers.

TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Implement full support, once layer elements have a means to organically obtain and release keyboard focus (eg. through pointer button clicks).

Parameters

layer_panel_ptr
interactivity
zwlr_layer

Returns

true on success.

_wlmaker_layer_panel_apply_layer()

bool _wlmaker_layer_panel_apply_layer ( wlmaker_layer_panel_t *  layer_panel_ptr, enum zwlr_layer_shell_v1_layer  zwlr_layer  )

static

Updates the layer this panel is part of. Posts an error if invalid.

_wlmaker_layer_panel_create_from_surface()

wlmaker_layer_panel_t * _wlmaker_layer_panel_create_from_surface	(	struct wlr_layer_surface_v1 *	wlr_layer_surface_v1_ptr,
		wlmaker_server_t *	server_ptr,
		wlmtk_surface_t *	wlmtk_surface_ptr
	)

Constructor for the layer panel, with already-created surface.

Parameters

wlr_layer_surface_v1_ptr
server_ptr
wlmtk_surface_ptr

Returns

The handler for the layer surface or NULL on error.

_wlmaker_layer_panel_destroy()

void _wlmaker_layer_panel_destroy ( wlmaker_layer_panel_t *  layer_panel_ptr )

static

Destroys the layer panel and frees up all associated resources.

Parameters

layer_panel_ptr

_wlmaker_layer_panel_element_destroy()

void _wlmaker_layer_panel_element_destroy ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::destroy, forwards to _wlmaker_layer_panel_destroy.

Parameters

element_ptr

_wlmaker_layer_panel_handle_destroy()

void _wlmaker_layer_panel_handle_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of the wlr_layer_surface_v1: Destroys the panel.

Parameters

listener_ptr
data_ptr

_wlmaker_layer_panel_handle_new_popup()

void _wlmaker_layer_panel_handle_new_popup ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_popup signal of the wlr_layer_surface_v1: Creates a new popup for this panel.

Parameters

listener_ptr
data_ptr	Points to the new struct wlr_xdg_popup.

_wlmaker_layer_panel_handle_surface_commit()

void _wlmaker_layer_panel_handle_surface_commit ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the commit signal of wlr_surface.

Updates positioning and layer of the panel, as required.

Parameters

listener_ptr
data_ptr

_wlmaker_layer_panel_handle_surface_map()

void _wlmaker_layer_panel_handle_surface_map ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the map signal of wlmtk_surface_t: Maps the panel to layer.

Parameters

listener_ptr
data_ptr

_wlmaker_layer_panel_handle_surface_unmap()

void _wlmaker_layer_panel_handle_surface_unmap ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the unmap signal of wlmtk_surface_t: Unmaps the panel.

Parameters

listener_ptr
data_ptr

_wlmaker_layer_panel_request_size()

uint32_t _wlmaker_layer_panel_request_size ( wlmtk_panel_t *  panel_ptr, int  width, int  height  )

static

Implements wlmtk_panel_vmt_t::request_size.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Exercises creation and teardown.

wlmaker_layer_panel_create()

wlmaker_layer_panel_t * wlmaker_layer_panel_create	(	struct wlr_layer_surface_v1 *	wlr_layer_surface_v1_ptr,
		wlmaker_server_t *	server_ptr
	)

Creates a layer panel for the given layer surface.

A layer panel is the implementation of a WLroots layer shell surface.

Parameters

wlr_layer_surface_v1_ptr
server_ptr

Returns

The handler for the layer surface or NULL on error. The associated resources will be destroyed once wlr_layer_surface_v1_ptr is destroyed.

Variable Documentation

_wlmaker_layer_panel_element_vmt

const wlmtk_element_vmt_t _wlmaker_layer_panel_element_vmt

static

Initial value:

= {
    .destroy = _wlmaker_layer_panel_element_destroy,
}

Virtual method table for the layer panel's superclass element.

_wlmaker_layer_panel_vmt

const wlmtk_panel_vmt_t _wlmaker_layer_panel_vmt

static

Initial value:

= {
    .request_size = _wlmaker_layer_panel_request_size,
}

Virtual method table for the layer panel.

wlmaker_layer_panel_test_cases

const bs_test_case_t wlmaker_layer_panel_test_cases[]

static

Initial value:

= {
    { false, "create_destroy", test_create_destroy },

}

Unit test cases.

wlmaker_layer_panel_test_set

const bs_test_set_t wlmaker_layer_panel_test_set

Initial value:

= BS_TEST_SET(
    true, "layer_panel", wlmaker_layer_panel_test_cases)

Unit test set of layer panel.
