container.c File Reference

#include "container.h"
#include <linux/input-event-codes.h>
#include <math.h>
#include <stdint.h>
#include <stdlib.h>
#include <toolkit/util.h>
#include <wayland-util.h>
#include <wlr/types/wlr_keyboard.h>
#include <wlr/types/wlr_scene.h>
#include <xkbcommon/xkbcommon.h>
#include "input.h"

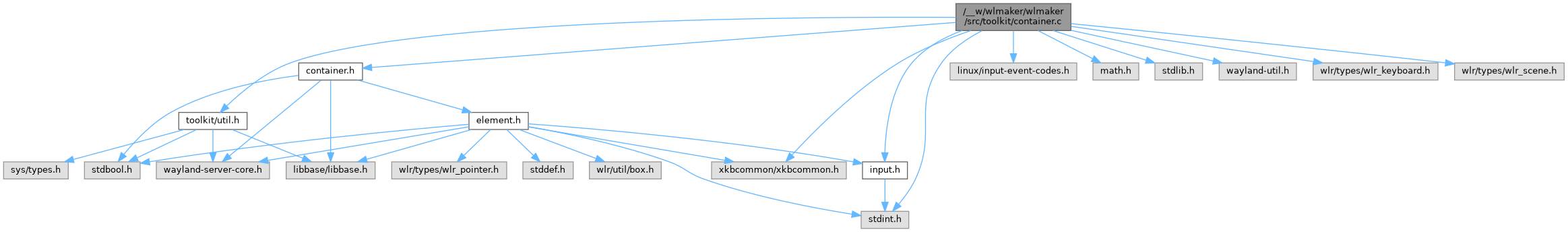

Include dependency graph for container.c:

Classes
struct	fake_parent_container_t

Functions
static void	_wlmtk_container_element_dlnode_destroy (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static struct wlr_scene_node *	_wlmtk_container_element_create_scene_node (wlmtk_element_t *element_ptr, struct wlr_scene_tree *wlr_scene_tree_ptr)
static void	_wlmtk_container_element_get_dimensions (wlmtk_element_t *element_ptr, int *left_ptr, int *top_ptr, int *right_ptr, int *bottom_ptr)
static bool	_wlmtk_container_element_pointer_accepts_motion (wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
static bool	_wlmtk_container_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static bool	_wlmtk_container_element_pointer_axis (wlmtk_element_t *element_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)
static void	_wlmtk_container_element_pointer_grab_cancel (wlmtk_element_t *element_ptr)
static void	_wlmtk_container_element_keyboard_blur (wlmtk_element_t *element_ptr)
static bool	_wlmtk_container_element_keyboard_event (wlmtk_element_t *element_ptr, struct wlr_keyboard_key_event *wlr_keyboard_key_event_ptr)
static bool	_wlmtk_container_element_keyboard_sym (wlmtk_element_t *element_ptr, xkb_keysym_t keysym, enum xkb_key_direction direction, uint32_t modifiers)
static void	_wlmtk_container_handle_wlr_scene_tree_node_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_container_handle_element_pointer_leave (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmtk_container_update_layout (wlmtk_container_t *container_ptr)
bool	wlmtk_container_init (wlmtk_container_t *container_ptr)
bool	wlmtk_container_init_attached (wlmtk_container_t *container_ptr, struct wlr_scene_tree *root_wlr_scene_tree_ptr)
wlmtk_container_vmt_t	wlmtk_container_extend (wlmtk_container_t *container_ptr, const wlmtk_container_vmt_t *container_vmt_ptr)
void	wlmtk_container_fini (wlmtk_container_t *container_ptr)
void	wlmtk_container_add_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_container_add_element_atop (wlmtk_container_t *container_ptr, wlmtk_element_t *reference_element_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_container_remove_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_container_raise_element_to_top (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)
bool	wlmtk_container_request_pointer_focus (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
void	wlmtk_container_pointer_grab (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_container_pointer_grab_release (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr)
void	wlmtk_container_set_keyboard_focus_element (wlmtk_container_t *container_ptr, wlmtk_element_t *element_ptr, bool enabled)
void	wlmtk_container_update_layout_and_pointer_focus (wlmtk_container_t *container_ptr)
struct wlr_scene_tree *	wlmtk_container_wlr_scene_tree (wlmtk_container_t *container_ptr)
wlmtk_container_t *	wlmtk_container_create_fake_parent (void)
void	wlmtk_container_destroy_fake_parent (wlmtk_container_t *container_ptr)
static void	test_init_fini (bs_test_t *test_ptr)
static void	test_add_remove (bs_test_t *test_ptr)
static void	test_add_remove_with_scene_graph (bs_test_t *test_ptr)
static void	test_add_with_raise (bs_test_t *test_ptr)
static void	test_pointer_button (bs_test_t *test_ptr)
static void	test_pointer_grab (bs_test_t *test_ptr)
static void	test_pointer_grab_events (bs_test_t *test_ptr)
static void	test_keyboard_event (bs_test_t *test_ptr)
static void	test_keyboard_focus (bs_test_t *test_ptr)
static void	test_pointer_axis (bs_test_t *test_ptr)
static void	test_pointer_focus_with_parent (bs_test_t *test_ptr)
static void	test_pointer_focus_children (bs_test_t *test_ptr)
static void	test_pointer_focus_order (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	container_element_vmt
static const wlmtk_container_vmt_t	container_vmt
const bs_test_case_t	wlmtk_container_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_container_element_create_scene_node()

struct wlr_scene_node * _wlmtk_container_element_create_scene_node ( wlmtk_element_t *  element_ptr, struct wlr_scene_tree *  wlr_scene_tree_ptr  )

static

Implementation of the superclass wlmtk_element_t::create_scene_node method.

Creates the wlroots scene graph tree for the container, and will attach all already-contained elements to the scene graph, as well.

Parameters

element_ptr
wlr_scene_tree_ptr

Returns

Pointer to the scene graph API node.

_wlmtk_container_element_dlnode_destroy()

void _wlmtk_container_element_dlnode_destroy ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Calls dtor for wlmtk_element_t at dlnode_ptr in ud_ptr.

_wlmtk_container_element_get_dimensions()

void _wlmtk_container_element_get_dimensions ( wlmtk_element_t *  element_ptr, int *  left_ptr, int *  top_ptr, int *  right_ptr, int *  bottom_ptr  )

static

Implementation of the element's get_dimensions method: Return dimensions.

Parameters

element_ptr
left_ptr	Leftmost position. May be NULL.
top_ptr	Topmost position. May be NULL.
right_ptr	Rightmost position. Ma be NULL.
bottom_ptr	Bottommost position. May be NULL.

_wlmtk_container_element_keyboard_blur()

void _wlmtk_container_element_keyboard_blur ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::keyboard_blur. Blurs all children.

_wlmtk_container_element_keyboard_event()

bool _wlmtk_container_element_keyboard_event ( wlmtk_element_t *  element_ptr, struct wlr_keyboard_key_event *  wlr_keyboard_key_event_ptr  )

static

Handler for keyboard events: Pass to keyboard-focussed element, if any.

_wlmtk_container_element_keyboard_sym()

bool _wlmtk_container_element_keyboard_sym ( wlmtk_element_t *  element_ptr, xkb_keysym_t  keysym, enum xkb_key_direction  direction, uint32_t  modifiers  )

static

Handler for translated keyboard events: To keyboard-focussed, if any.

_wlmtk_container_element_pointer_accepts_motion()

bool _wlmtk_container_element_pointer_accepts_motion ( wlmtk_element_t *  element_ptr, wlmtk_pointer_motion_event_t *  motion_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_accepts_motion.

Parameters

element_ptr
motion_event_ptr

Returns

Whether this container has an element that accepts the emotion.

_wlmtk_container_element_pointer_axis()

bool _wlmtk_container_element_pointer_axis ( wlmtk_element_t *  element_ptr, struct wlr_pointer_axis_event *  wlr_pointer_axis_event_ptr  )

static

Implementation of the element's axis method: Handles axis events, by forwarding it to the element having pointer focus.

Parameters

element_ptr
wlr_pointer_axis_event_ptr

Returns

true if the axis event was handled.

_wlmtk_container_element_pointer_button()

bool _wlmtk_container_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Implementation of the element's pointer_button() method. Forwards it to the element currently having pointer focus.

Parameters

element_ptr
button_event_ptr

Returns

true if the button was handled.

_wlmtk_container_element_pointer_grab_cancel()

void _wlmtk_container_element_pointer_grab_cancel ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::pointer_grab_cancel.

Cancels an existing pointer grab.

Parameters

element_ptr

_wlmtk_container_handle_element_pointer_leave()

void _wlmtk_container_handle_element_pointer_leave ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles 'pointer_leave' events: Blurs element currently having focus.

_wlmtk_container_handle_wlr_scene_tree_node_destroy()

void _wlmtk_container_handle_wlr_scene_tree_node_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles the 'destroy' callback of wlr_scene_tree_ptr->node.

Will also detach (but not destroy) each of the still-contained elements.

Parameters

listener_ptr
data_ptr

_wlmtk_container_update_layout()

bool _wlmtk_container_update_layout ( wlmtk_container_t *  container_ptr )

static

Base implementation of wlmtk_container_vmt_t::update_layout.

Parameters

container_ptr

Returns

false, since a nondescript container doesn't rearrange elements.

test_add_remove()

void test_add_remove ( bs_test_t *  test_ptr )

static

Exercises adding and removing elements, verifies destruction on fini.

test_add_remove_with_scene_graph()

void test_add_remove_with_scene_graph ( bs_test_t *  test_ptr )

static

Tests that elements are attached, resp. detached from scene graph.

test_add_with_raise()

void test_add_with_raise ( bs_test_t *  test_ptr )

static

Tests that elements inserted at position are also placed in scene graph.

test_init_fini()

void test_init_fini ( bs_test_t *  test_ptr )

static

Exercises init() and fini() methods, verifies dtor forwarding.

test_keyboard_event()

void test_keyboard_event ( bs_test_t *  test_ptr )

static

Tests that keyboard event are forwarded to element with keyboard focus.

test_keyboard_focus()

void test_keyboard_focus ( bs_test_t *  test_ptr )

static

Test that keyboard focus is propagated and respects element removal.

test_pointer_axis()

void test_pointer_axis ( bs_test_t *  test_ptr )

static

Tests that axis events are forwarded to element with pointer focus.

test_pointer_button()

void test_pointer_button ( bs_test_t *  test_ptr )

static

Tests that pointer DOWN is forwarded to element with pointer focus.

test_pointer_focus_children()

void test_pointer_focus_children ( bs_test_t *  test_ptr )

static

Tests moving pointer focus between children elements.

test_pointer_focus_order()

void test_pointer_focus_order ( bs_test_t *  test_ptr )

static

Tests pointer focus when moving elements order (and position).

test_pointer_focus_with_parent()

static void test_pointer_focus_with_parent ( bs_test_t *  test_ptr )

static

Tests pointer focus.

test_pointer_grab()

void test_pointer_grab ( bs_test_t *  test_ptr )

static

Tests wlmtk_container_pointer_grab and wlmtk_container_pointer_grab_release.

test_pointer_grab_events()

void test_pointer_grab_events ( bs_test_t *  test_ptr )

static

Tests that element with the pointer grab receives pointer events.

wlmtk_container_add_element()

void wlmtk_container_add_element	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr
	)

Adds element_ptr to the container.

Requires that element_ptr is not added to a container yet. The element will be added at the top of the container.

Parameters

container_ptr
element_ptr

wlmtk_container_add_element_atop()

void wlmtk_container_add_element_atop	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	reference_element_ptr,
		wlmtk_element_t *	element_ptr
	)

Adds element_ptr to the container atop the reference's position.

If reference_element_ptr is NULL, the element will be added at the back.

Parameters

container_ptr
reference_element_ptr	Must be an element of this container.
element_ptr

wlmtk_container_create_fake_parent()

wlmtk_container_t * wlmtk_container_create_fake_parent

(

void

)

Constructor for a fake container with a scene tree.

wlmtk_container_destroy_fake_parent()

void wlmtk_container_destroy_fake_parent

(

wlmtk_container_t *

container_ptr

)

Destructor for that fake container.

wlmtk_container_extend()

wlmtk_container_vmt_t wlmtk_container_extend	(	wlmtk_container_t *	container_ptr,
		const wlmtk_container_vmt_t *	container_vmt_ptr
	)

Extends the container's virtual methods.

Parameters

container_ptr
container_vmt_ptr

Returns

The previous virtual method table.

wlmtk_container_fini()

void wlmtk_container_fini

(

wlmtk_container_t *

container_ptr

)

Un-initializes the container.

Any element still in elements will be destroyed.

Parameters

container_ptr

wlmtk_container_init()

bool wlmtk_container_init

(

wlmtk_container_t *

container_ptr

)

Initializes the container with the provided virtual method table.

Parameters

container_ptr

Returns

true on success.

wlmtk_container_init_attached()

bool wlmtk_container_init_attached	(	wlmtk_container_t *	container_ptr,
		struct wlr_scene_tree *	root_wlr_scene_tree_ptr
	)

Initializes the container, and attach to WLR sene graph.

Parameters

container_ptr
root_wlr_scene_tree_ptr

Returns

true on success.

wlmtk_container_pointer_grab()

void wlmtk_container_pointer_grab	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr
	)

Requests a pointer grab from container_ptr for element_ptr.

Will cancel any existing grab held by elements other than element_ptr, and propagates the grab to the parent container. When a pointer grab is held, pointer events will be routed exclusively to the element holding the pointer grab.

Parameters

container_ptr
element_ptr	Must be a child of this container.

wlmtk_container_pointer_grab_release()

void wlmtk_container_pointer_grab_release	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr
	)

Releases a pointer grab in container_ptr held by element_ptr.

If the grab is held by an element other than element_ptr, nothing is done. Otherwise, the pointer grab is released, and the release is propagated to the parent container.

Parameters

container_ptr
element_ptr	Must be a child of this container.

wlmtk_container_raise_element_to_top()

void wlmtk_container_raise_element_to_top	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr
	)

Places element_ptr at the top (head) of the container.

Expects that container_ptr is element_ptr's parent container.

Parameters

container_ptr
element_ptr

wlmtk_container_remove_element()

void wlmtk_container_remove_element	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr
	)

Removes element_ptr from the container.

Expects that container_ptr is element_ptr's parent container. In case element_ptr holds a pointer grab, wlmtk_element_pointer_grab_cancel will be called.

Parameters

container_ptr
element_ptr

wlmtk_container_request_pointer_focus()

bool wlmtk_container_request_pointer_focus	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr,
		wlmtk_pointer_motion_event_t *	motion_event_ptr
	)

Requests that element_ptr be given pointer focus from container_ptr.

Parameters

container_ptr
element_ptr	Must be in wlmtk_container_t::elements.
motion_event_ptr	The motion event (in particular: pointer) that led to request pointer focus. FIXME -> Must change to pointer!

Returns

false if the request fails.

wlmtk_container_set_keyboard_focus_element()

void wlmtk_container_set_keyboard_focus_element	(	wlmtk_container_t *	container_ptr,
		wlmtk_element_t *	element_ptr,
		bool	enabled
	)

Sets or disables keyboard focus for element_ptr for the container.

If enabled, calls wlmtk_element_keyboard_blur for the element currently having keyboard focus, and updates wlmtk_container_t::keyboard_focus_element_ptr to element_ptr. Otherwise, evaluates whether the focus is currently held by element_ptr, and (if yes) clears this container's focus. Propagates the event to the container's parent.

Parameters

container_ptr
element_ptr
enabled

wlmtk_container_update_layout_and_pointer_focus()

void wlmtk_container_update_layout_and_pointer_focus

(

wlmtk_container_t *

container_ptr

)

Updates the layout of the container, and recomputes pointer focus as needed.

Must be called if an element is added or removed, or if any of the child elements changes visibility or dimensions. Propagates to the parent container(s).

If needed: Trigger a poitner focus computation.

Parameters

container_ptr

wlmtk_container_wlr_scene_tree()

struct wlr_scene_tree * wlmtk_container_wlr_scene_tree

(

wlmtk_container_t *

container_ptr

)

Returns the wlroots scene graph tree for this node.

Private: Should be called only by wlmtk_element_t.

Parameters

container_ptr

Returns

The scene tree, or NULL if not attached to a scene graph.

Variable Documentation

container_element_vmt

const wlmtk_element_vmt_t container_element_vmt

static

Initial value:

= {
    .create_scene_node = _wlmtk_container_element_create_scene_node,
    .get_dimensions = _wlmtk_container_element_get_dimensions,
    .pointer_accepts_motion = _wlmtk_container_element_pointer_accepts_motion,
    .pointer_button = _wlmtk_container_element_pointer_button,
    .pointer_axis = _wlmtk_container_element_pointer_axis,
    .pointer_grab_cancel = _wlmtk_container_element_pointer_grab_cancel,
    .keyboard_blur = _wlmtk_container_element_keyboard_blur,
    .keyboard_event = _wlmtk_container_element_keyboard_event,
    .keyboard_sym = _wlmtk_container_element_keyboard_sym,
}

Virtual method table for the container's super class: Element.

container_vmt

const wlmtk_container_vmt_t container_vmt

static

Initial value:

= {
    .update_layout = _wlmtk_container_update_layout,
}

Default virtual method table. Initializes non-abstract methods.

wlmtk_container_test_cases

const bs_test_case_t wlmtk_container_test_cases[]

Initial value:

= {
    { 1, "init_fini", test_init_fini },
    { 1, "add_remove", test_add_remove },
    { 1, "add_remove_with_scene_graph", test_add_remove_with_scene_graph },
    { 1, "add_with_raise", test_add_with_raise },
    { 1, "pointer_button", test_pointer_button },
    { 1, "pointer_grab", test_pointer_grab },
    { 1, "pointer_grab_events", test_pointer_grab_events },
    { 1, "keyboard_event", test_keyboard_event },
    { 1, "keyboard_focus", test_keyboard_focus },
    { 1, "pointer_axis", test_pointer_axis },
    { 1, "pointer_focus_with_parent", test_pointer_focus_with_parent },
    { 1, "pointer_focus_children", test_pointer_focus_children },
    { 1, "test_pointer_focus_order", test_pointer_focus_order },
    { 0, NULL, NULL }
}

Unit tests for the container.
