clip.c File Reference

#include "clip.h"
#include <cairo.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <linux/input-event-codes.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <sys/stat.h>
#include <wayland-server-core.h>
#include <wayland-util.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/util/edges.h>
#include "backend/backend.h"
#include "backend/output_config.h"
#include "files.h"
#include "toolkit/toolkit.h"

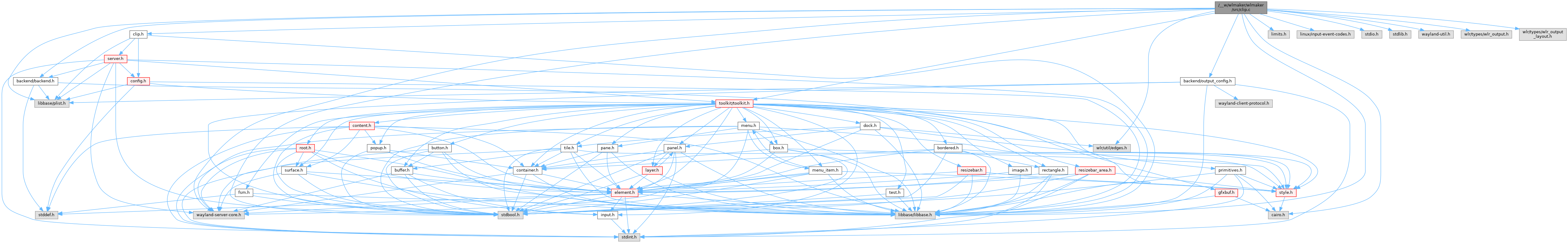

Include dependency graph for clip.c:

Classes
struct	_wlmaker_clip_t
struct	parse_args

Functions
static bool	_wlmaker_clip_pointer_axis (wlmtk_element_t *element_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)
static bool	_wlmaker_clip_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static bool	_wlmaker_clip_update_tiles (wlmaker_clip_t *clip_ptr, const struct wlmtk_tile_style *tile_style_ptr)
static void	_wlmaker_clip_apply_button_state (wlmaker_clip_t *clip_ptr)
static bool	_wlmaker_clip_update_overlay (wlmaker_clip_t *clip_ptr, const struct wlmtk_tile_style *tile_style_ptr, const wlmaker_config_clip_style_t *clip_style_ptr)
static bool	_wlmaker_clip_update_image (wlmaker_clip_t *clip_ptr, const struct wlmtk_tile_style *tile_style_ptr)
static struct wlr_buffer *	_wlmaker_clip_create_tile (const struct wlmtk_tile_style *tile_style_ptr, bool prev_pressed, bool next_pressed)
static void	_wlmaker_clip_handle_workspace_changed (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_clip_handle_output_layout_change (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_clip_handle_pointer_motion (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_clip_handle_pointer_leave (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_clip_handle_theme_changed (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_clip_t *	wlmaker_clip_create (wlmaker_server_t *server_ptr, bspl_dict_t *state_dict_ptr, const wlmaker_config_style_t *style_ptr)
void	wlmaker_clip_destroy (wlmaker_clip_t *clip_ptr)
static void	test_draw_tile (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmaker_clip_element_vmt
static const bspl_enum_desc_t	_wlmaker_clip_edges []
const bspl_desc_t	_wlmaker_clip_desc []
static const bs_test_case_t	wlmaker_clip_test_cases []
const bs_test_set_t	wlmaker_clip_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_clip_apply_button_state()

static void _wlmaker_clip_apply_button_state ( wlmaker_clip_t *  clip_ptr )

static

Updates the button textures, based on current state what's pressed.

_wlmaker_clip_create_tile()

struct wlr_buffer * _wlmaker_clip_create_tile ( const struct wlmtk_tile_style *  tile_style_ptr, bool  prev_pressed, bool  next_pressed  )

static

Creates a wlr_buffer with texture suitable to show the 'next' and 'prev' buttons in each raised or pressed state.

Parameters

tile_style_ptr
prev_pressed
next_pressed

Returns

A wlr buffer.

_wlmaker_clip_handle_output_layout_change()

void _wlmaker_clip_handle_output_layout_change ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles when output layout changes; Re-computes the output to attach.

_wlmaker_clip_handle_pointer_leave()

void _wlmaker_clip_handle_pointer_leave ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlmtk_element_events_t::pointer_leave. Resets buttons.

_wlmaker_clip_handle_pointer_motion()

void _wlmaker_clip_handle_pointer_motion ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlmtk_element_events_t::pointer_motion.

_wlmaker_clip_handle_theme_changed()

void _wlmaker_clip_handle_theme_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Event listener: The theme changed. Applies the new style to the clip.

_wlmaker_clip_handle_workspace_changed()

void _wlmaker_clip_handle_workspace_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the workspace_changed signal of wlmaker_server_t.

Will redraw the clip contents with the current workspace, and re-map the clip to the new workspace.

Parameters

listener_ptr
data_ptr	Points to the new wlmtk_workspace_t.

_wlmaker_clip_pointer_axis()

bool _wlmaker_clip_pointer_axis ( wlmtk_element_t *  element_ptr, struct wlr_pointer_axis_event *  wlr_pointer_axis_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_axis.

Moves to the next or previous workspace, depending on the axis (scroll- wheel) direction.

Parameters

element_ptr
wlr_pointer_axis_event_ptr

Returns

true

_wlmaker_clip_pointer_button()

bool _wlmaker_clip_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_button.

Checks if the button press is on either 'next' or 'prev' button area, updates visualization if pressed, and switches workspace if needed.

Parameters

element_ptr
button_event_ptr

Returns

true.

_wlmaker_clip_update_image()

bool _wlmaker_clip_update_image ( wlmaker_clip_t *  clip_ptr, const struct wlmtk_tile_style *  tile_style_ptr  )

static

Updates (reloads) the content image.

_wlmaker_clip_update_overlay()

bool _wlmaker_clip_update_overlay ( wlmaker_clip_t *  clip_ptr, const struct wlmtk_tile_style *  tile_style_ptr, const wlmaker_config_clip_style_t *  clip_style_ptr  )

static

Updates the overlay buffer's content with workspace name and index.

_wlmaker_clip_update_tiles()

bool _wlmaker_clip_update_tiles ( wlmaker_clip_t *  clip_ptr, const struct wlmtk_tile_style *  tile_style_ptr  )

static

Creates (or updates) the tile buffers for the button states.

Parameters

clip_ptr
tile_style_ptr

Returns

true on success

test_draw_tile()

void test_draw_tile ( bs_test_t *  test_ptr )

static

Tests that the clip tile is drawn correctly.

wlmaker_clip_create()

wlmaker_clip_t * wlmaker_clip_create	(	wlmaker_server_t *	server_ptr,
		bspl_dict_t *	state_dict_ptr,
		const wlmaker_config_style_t *	style_ptr
	)

Creates the Clip. Needs the server to be up with workspaces running.

Parameters

server_ptr
state_dict_ptr
style_ptr

Returns

Pointer to the Clip handle, or NULL on error.

wlmaker_clip_destroy()

void wlmaker_clip_destroy

(

wlmaker_clip_t *

clip_ptr

)

Destroys the Clip.

Parameters

clip_ptr

Variable Documentation

_wlmaker_clip_desc

const bspl_desc_t _wlmaker_clip_desc[]

Initial value:

= {
    BSPL_DESC_ENUM("Edge", true, parse_args,
                   positioning.edge, positioning.edge,
                   WLR_EDGE_NONE, _wlmaker_clip_edges),
    BSPL_DESC_ENUM("Anchor", true, parse_args,
                   positioning.anchor, positioning.anchor,
                   WLR_EDGE_NONE, _wlmaker_clip_edges),
    BSPL_DESC_SENTINEL(),
}

Descriptor for the clip's plist.

_wlmaker_clip_edges

const bspl_enum_desc_t _wlmaker_clip_edges[]

static

Initial value:

= {
    BSPL_ENUM("TOP", WLR_EDGE_TOP),
    BSPL_ENUM("BOTTOM", WLR_EDGE_BOTTOM),
    BSPL_ENUM("LEFT", WLR_EDGE_LEFT),
    BSPL_ENUM("RIGHT", WLR_EDGE_RIGHT),
    BSPL_ENUM_SENTINEL(),
}

Enum descriptor for enum wlr_edges.

_wlmaker_clip_element_vmt

const wlmtk_element_vmt_t _wlmaker_clip_element_vmt

static

Initial value:

= {
    .pointer_axis = _wlmaker_clip_pointer_axis,
    .pointer_button = _wlmaker_clip_pointer_button,
}

The clip's extension to wlmtk_element_t virtual method table.

wlmaker_clip_test_cases

const bs_test_case_t wlmaker_clip_test_cases[]

static

Initial value:

= {
    { true, "draw_tile", test_draw_tile },

}

Test cases.

wlmaker_clip_test_set

const bs_test_set_t wlmaker_clip_test_set

Initial value:

= BS_TEST_SET(
    true, "clip", wlmaker_clip_test_cases)

Unit test set.
