surface.c File Reference

#include "surface.h"
#include <libbase/libbase.h>
#include <stdint.h>
#include <stdlib.h>
#include <wayland-server-protocol.h>
#include <wayland-util.h>
#include <wlr/types/wlr_compositor.h>
#include <wlr/types/wlr_keyboard.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/types/wlr_seat.h>
#include <wlr/version.h>
#include <xkbcommon/xkbcommon.h>
#include "element.h"
#include "container.h"
#include "gfxbuf.h"
#include "input.h"
#include "util.h"

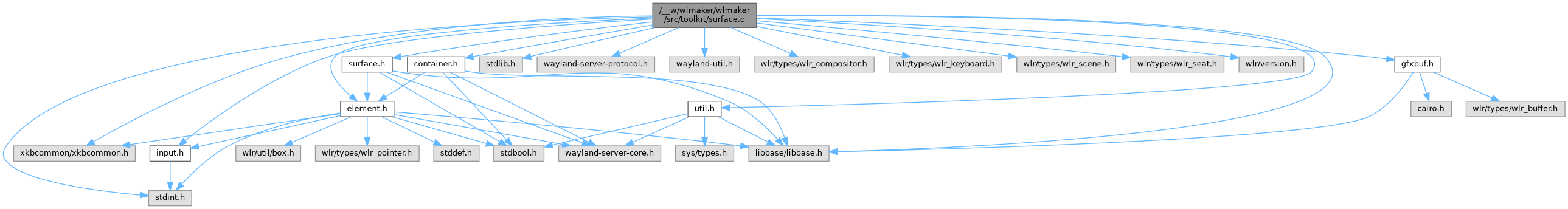

Include dependency graph for surface.c:

Functions
static bool	_wlmtk_surface_init (wlmtk_surface_t *surface_ptr, struct wlr_surface *wlr_surface_ptr)
static void	_wlmtk_surface_fini (wlmtk_surface_t *surface_ptr)
static void	_wlmtk_surface_element_destroy (wlmtk_element_t *element_ptr)
static struct wlr_scene_node *	_wlmtk_surface_element_create_scene_node (wlmtk_element_t *element_ptr, struct wlr_scene_tree *wlr_scene_tree_ptr)
static void	_wlmtk_surface_element_get_dimensions (wlmtk_element_t *element_ptr, int *left_ptr, int *top_ptr, int *right_ptr, int *bottom_ptr)
static void	_wlmtk_surface_element_get_pointer_area (wlmtk_element_t *element_ptr, int *left_ptr, int *top_ptr, int *right_ptr, int *bottom_ptr)
static bool	_wlmtk_surface_element_pointer_motion (wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
static bool	_wlmtk_surface_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static bool	_wlmtk_surface_element_pointer_axis (wlmtk_element_t *element_ptr, struct wlr_pointer_axis_event *wlr_pointer_axis_event_ptr)
static bool	_wlmtk_surface_element_keyboard_event (wlmtk_element_t *element_ptr, struct wlr_keyboard_key_event *wlr_keyboard_key_event_ptr, const xkb_keysym_t *key_syms, size_t key_syms_count, uint32_t modifiers)
static void	_wlmtk_surface_handle_wlr_scene_tree_node_destroy (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_surface_handle_surface_commit (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_surface_handle_surface_map (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_surface_handle_surface_unmap (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_surface_handle_element_pointer_leave (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_surface_commit_size (wlmtk_surface_t *surface_ptr, int width, int height)
wlmtk_surface_t *	wlmtk_surface_create (struct wlr_surface *wlr_surface_ptr, struct wlr_seat *wlr_seat_ptr)
void	wlmtk_surface_destroy (wlmtk_surface_t *surface_ptr)
wlmtk_element_t *	wlmtk_surface_element (wlmtk_surface_t *surface_ptr)
void	wlmtk_surface_get_size (wlmtk_surface_t *surface_ptr, int *width_ptr, int *height_ptr)
void	wlmtk_surface_set_activated (wlmtk_surface_t *surface_ptr, bool activated)
void	wlmtk_surface_connect_map_listener_signal (wlmtk_surface_t *surface_ptr, struct wl_listener *listener_ptr, wl_notify_func_t handler)
void	wlmtk_surface_connect_unmap_listener_signal (wlmtk_surface_t *surface_ptr, struct wl_listener *listener_ptr, wl_notify_func_t handler)
static void	_wlmtk_fake_surface_element_destroy (wlmtk_element_t *element_ptr)
static struct wlr_scene_node *	_wlmtk_fake_surface_element_create_scene_node (wlmtk_element_t *element_ptr, struct wlr_scene_tree *wlr_scene_tree_ptr)
static bool	_wlmtk_fake_surface_element_pointer_motion (wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
static bool	_wlmtk_fake_surface_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
wlmtk_fake_surface_t *	wlmtk_fake_surface_create (void)
wlmtk_surface_t *	wlmtk_fake_surface_create_inject (struct wlr_surface *wlr_surface_ptr, struct wlr_seat *wlr_seat_ptr)
void	wlmtk_fake_surface_commit_size (wlmtk_fake_surface_t *fake_surface_ptr, int width, int height)
void	wlmtk_fake_surface_destroy (wlmtk_fake_surface_t *fake_surface_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)
static void	test_fake_commit (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	surface_element_vmt
static const wlmtk_element_vmt_t	_wlmtk_fake_surface_element_vmt
const bs_test_case_t	wlmtk_surface_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_fake_surface_element_create_scene_node()

struct wlr_scene_node * _wlmtk_fake_surface_element_create_scene_node ( wlmtk_element_t *  element_ptr, struct wlr_scene_tree *  wlr_scene_tree_ptr  )

static

Fake implementation of wlmtk_element_vmt_t::create_scene_node.

_wlmtk_fake_surface_element_destroy()

void _wlmtk_fake_surface_element_destroy ( wlmtk_element_t *  element_ptr )

static

Fake implementation of the dtor, wlmtk_element_vmt_t::destroy.

_wlmtk_fake_surface_element_pointer_button()

bool _wlmtk_fake_surface_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Fake for wlmtk_element_vmt_t::pointer_button. Returns true.

_wlmtk_fake_surface_element_pointer_motion()

bool _wlmtk_fake_surface_element_pointer_motion ( wlmtk_element_t *  element_ptr, wlmtk_pointer_motion_event_t *  motion_event_ptr  )

static

Fake for wlmtk_element_vmt_t::pointer_motion. True if in committed.

_wlmtk_surface_commit_size()

void _wlmtk_surface_commit_size ( wlmtk_surface_t *  surface_ptr, int  width, int  height  )

static

Surface commits a new size: Store the size, and update the parent's layout.

Parameters

surface_ptr
width
height

_wlmtk_surface_element_create_scene_node()

struct wlr_scene_node * _wlmtk_surface_element_create_scene_node ( wlmtk_element_t *  element_ptr, struct wlr_scene_tree *  wlr_scene_tree_ptr  )

static

Implements wlmtk_element_vmt_t::create_scene_node. Creates the node.

Parameters

element_ptr
wlr_scene_tree_ptr

Returns

The scene graph API node of the node displaying the surface and all of it's sub-surfaces. Or NULL on error.

_wlmtk_surface_element_destroy()

void _wlmtk_surface_element_destroy ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::destroy. Calls the dtor.

_wlmtk_surface_element_get_dimensions()

void _wlmtk_surface_element_get_dimensions ( wlmtk_element_t *  element_ptr, int *  left_ptr, int *  top_ptr, int *  right_ptr, int *  bottom_ptr  )

static

Implementation of the element's get_dimensions method: Return dimensions.

Parameters

element_ptr
left_ptr	Leftmost position. May be NULL.
top_ptr	Topmost position. May be NULL.
right_ptr	Rightmost position. Ma be NULL.
bottom_ptr	Bottommost position. May be NULL.

_wlmtk_surface_element_get_pointer_area()

void _wlmtk_surface_element_get_pointer_area ( wlmtk_element_t *  element_ptr, int *  left_ptr, int *  top_ptr, int *  right_ptr, int *  bottom_ptr  )

static

Overwrites the element's get_pointer_area method: Returns the extents of the surface and all subsurfaces.

Parameters

element_ptr
left_ptr	Leftmost position. May be NULL.
top_ptr	Topmost position. May be NULL.
right_ptr	Rightmost position. Ma be NULL.
bottom_ptr	Bottommost position. May be NULL.

_wlmtk_surface_element_keyboard_event()

bool _wlmtk_surface_element_keyboard_event ( wlmtk_element_t *  element_ptr, struct wlr_keyboard_key_event *  wlr_keyboard_key_event_ptr, const xkb_keysym_t *  key_syms, size_t  key_syms_count, uint32_t  modifiers  )

static

Implements wlmtk_element_vmt_t::keyboard_event. Handle keyboard events.

Registers the surface as active, and forwards events there.

Parameters

element_ptr
wlr_keyboard_key_event_ptr
key_syms
key_syms_count
modifiers

Returns

true if the axis event was handled.

_wlmtk_surface_element_pointer_axis()

bool _wlmtk_surface_element_pointer_axis ( wlmtk_element_t *  element_ptr, struct wlr_pointer_axis_event *  wlr_pointer_axis_event_ptr  )

static

Passes pointer axis events further to the focused surface, if any.

The actual passing is handled by wlr_seat. Here we just verify that the currently-focused surface (or sub-surface) is part of this surface.

Parameters

element_ptr
wlr_pointer_axis_event_ptr

Returns

Whether the axis event was consumed.

_wlmtk_surface_element_pointer_button()

bool _wlmtk_surface_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Passes pointer button event further to the focused surface, if any.

The actual passing is handled by wlr_seat. Here we just verify that the currently-focused surface (or sub-surface) is part of this surface.

Parameters

element_ptr
button_event_ptr

Returns

Whether the button event was consumed.

_wlmtk_surface_element_pointer_motion()

bool _wlmtk_surface_element_pointer_motion ( wlmtk_element_t *  element_ptr, wlmtk_pointer_motion_event_t *  motion_event_ptr  )

static

Pass pointer motion events to client's surface.

Identifies the surface (or sub-surface) at the given coordinates, and pass on the motion event to that surface. If needed, will update the seat's pointer focus.

Parameters

element_ptr
motion_event_ptr	Pointer motion event, with position relative to this element's node.

Returns

Whether if the motion is within the area.

_wlmtk_surface_fini()

void _wlmtk_surface_fini ( wlmtk_surface_t *  surface_ptr )

static

Un-initializes the surface.

Parameters

surface_ptr

_wlmtk_surface_handle_element_pointer_leave()

void _wlmtk_surface_handle_element_pointer_leave ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles pointer leave: If there's a WLR (sub)surface currently holding focus, that will be cleared.

Parameters

listener_ptr
data_ptr

_wlmtk_surface_handle_surface_commit()

void _wlmtk_surface_handle_surface_commit ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the commit signal of wlr_surface.

_wlmtk_surface_handle_surface_map()

void _wlmtk_surface_handle_surface_map ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles the surface_map signal: Makes the surface visible.

Parameters

listener_ptr
data_ptr

_wlmtk_surface_handle_surface_unmap()

void _wlmtk_surface_handle_surface_unmap ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles the surface_unmap signal: Makes the surface invisible.

Parameters

listener_ptr
data_ptr

_wlmtk_surface_handle_wlr_scene_tree_node_destroy()

void _wlmtk_surface_handle_wlr_scene_tree_node_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal of wlr_scene_tree_ptr->node.

We have this registered to clear out the extra pointer we're holding to wlmtk_surface_t::wlr_scene_tree_ptr. wlmtk_element_t has a separate destroy handler that will take care of actual cleanup.

_wlmtk_surface_init()

bool _wlmtk_surface_init ( wlmtk_surface_t *  surface_ptr, struct wlr_surface *  wlr_surface_ptr  )

static

Initializes the surface.

Parameters

surface_ptr
wlr_surface_ptr

Returns

true on success.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Tests ctor and dtor.

test_fake_commit()

void test_fake_commit ( bs_test_t *  test_ptr )

static

Exercises the request_size / commit flow.

wlmtk_fake_surface_commit_size()

void wlmtk_fake_surface_commit_size	(	wlmtk_fake_surface_t *	fake_surface_ptr,
		int	width,
		int	height
	)

Fakes a wlr_surface commit event.

wlmtk_fake_surface_create()

wlmtk_fake_surface_t * wlmtk_fake_surface_create

(

void

)

Ctor for the fake surface.

wlmtk_fake_surface_create_inject()

wlmtk_surface_t * wlmtk_fake_surface_create_inject	(	struct wlr_surface *	wlr_surface_ptr,
		struct wlr_seat *	wlr_seat_ptr
	)

Injectable ctor for the fake surface.

wlmtk_fake_surface_destroy()

void wlmtk_fake_surface_destroy

(

wlmtk_fake_surface_t *

fake_surface_ptr

)

Dtor for the fake surface.

wlmtk_surface_connect_map_listener_signal()

void wlmtk_surface_connect_map_listener_signal	(	wlmtk_surface_t *	surface_ptr,
		struct wl_listener *	listener_ptr,
		wl_notify_func_t	handler
	)

Connects a listener and handler to the map signal of wlr_surface.

wlmtk_surface_connect_unmap_listener_signal()

void wlmtk_surface_connect_unmap_listener_signal	(	wlmtk_surface_t *	surface_ptr,
		struct wl_listener *	listener_ptr,
		wl_notify_func_t	handler
	)

Connects a listener and handler to the unmap signal of wlr_surface.

wlmtk_surface_create()

wlmtk_surface_t * wlmtk_surface_create	(	struct wlr_surface *	wlr_surface_ptr,
		struct wlr_seat *	wlr_seat_ptr
	)

Creates a toolkit surface from the wlr_surface_ptr.

Parameters

wlr_surface_ptr
wlr_seat_ptr

Returns

A pointer to the wlmtk_surface_t. Must be destroyed by calling wlmtk_surface_destroy.

wlmtk_surface_destroy()

void wlmtk_surface_destroy

(

wlmtk_surface_t *

surface_ptr

)

Destroys the toolkit surface.

Parameters

surface_ptr

wlmtk_surface_element()

wlmtk_element_t * wlmtk_surface_element

(

wlmtk_surface_t *

surface_ptr

)

Returns a pointer to the surface's element superclass instance.

Parameters

surface_ptr

Returns

Pointer to the corresponding wlmtk_element_t.

wlmtk_surface_get_size()

void wlmtk_surface_get_size	(	wlmtk_surface_t *	surface_ptr,
		int *	width_ptr,
		int *	height_ptr
	)

Returns committed size of the surface.

Parameters

surface_ptr
width_ptr
height_ptr

wlmtk_surface_set_activated()

void wlmtk_surface_set_activated	(	wlmtk_surface_t *	surface_ptr,
		bool	activated
	)

Activates the surface.

Parameters

surface_ptr
activated

Variable Documentation

_wlmtk_fake_surface_element_vmt

const wlmtk_element_vmt_t _wlmtk_fake_surface_element_vmt

static

Initial value:

= {
    .destroy = _wlmtk_fake_surface_element_destroy,
    .create_scene_node = _wlmtk_fake_surface_element_create_scene_node,
    .pointer_motion = _wlmtk_fake_surface_element_pointer_motion,
    .pointer_button = _wlmtk_fake_surface_element_pointer_button,
}

Extensions to the surface's super elements virtual methods.

surface_element_vmt

const wlmtk_element_vmt_t surface_element_vmt

static

Initial value:

= {
    .destroy = _wlmtk_surface_element_destroy,
    .create_scene_node = _wlmtk_surface_element_create_scene_node,
    .get_dimensions = _wlmtk_surface_element_get_dimensions,
    .get_pointer_area = _wlmtk_surface_element_get_pointer_area,
    .pointer_motion = _wlmtk_surface_element_pointer_motion,
    .pointer_button = _wlmtk_surface_element_pointer_button,
    .pointer_axis = _wlmtk_surface_element_pointer_axis,
    .keyboard_event = _wlmtk_surface_element_keyboard_event,
}

Method table for the element's virtual methods.

wlmtk_surface_test_cases

const bs_test_case_t wlmtk_surface_test_cases[]

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 1, "fake_commit", test_fake_commit },
    { 0, NULL, NULL }
}

Unit test cases.
