menu.c File Reference

#include "menu.h"
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <linux/input-event-codes.h>
#include <stdint.h>
#include <stdlib.h>
#include <xkbcommon/xkbcommon.h>
#include <xkbcommon/xkbcommon-keysyms.h>
#include "base.h"
#include "input.h"
#include "util.h"

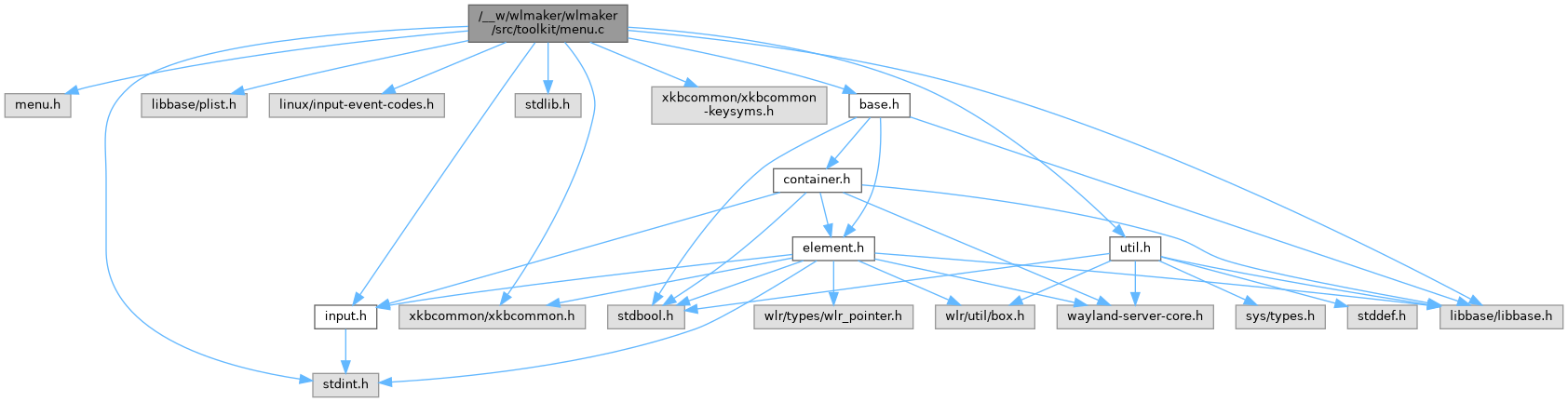

Include dependency graph for menu.c:

Classes
struct	_wlmtk_menu_t
struct	_wlmtk_menu_style_ref_t
struct	wlmtk_menu_style_holder

Functions
static void	_wlmtk_menu_eliminate_item (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static bool	_wlmtk_menu_set_item_style (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmtk_menu_set_item_mode (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
static void	_wlmtk_menu_box_element_destroy (wlmtk_element_t *element_ptr)
static void	_wlmtk_menu_element_destroy (wlmtk_element_t *element_ptr)
static bool	_wlmtk_menu_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static bool	_wlmtk_menu_element_keyboard_sym (wlmtk_element_t *element_ptr, xkb_keysym_t keysym, enum xkb_key_direction direction, uint32_t modifiers)
static bs_dllist_node_t *	_wlmtk_menu_this_or_next_non_disabled_dlnode (bs_dllist_node_t *dlnode_ptr, bs_dllist_node_iterator_t iterator)
static void	_wlmtk_menu_style_destroy (bs_ref_t *ref_ptr)
wlmtk_menu_t *	wlmtk_menu_create (wlmtk_menu_style_ref_t *style_ref_ptr)
void	wlmtk_menu_destroy (wlmtk_menu_t *menu_ptr)
wlmtk_element_t *	wlmtk_menu_element (wlmtk_menu_t *menu_ptr)
wlmtk_base_t *	wlmtk_menu_base (wlmtk_menu_t *menu_ptr)
wlmtk_menu_events_t *	wlmtk_menu_events (wlmtk_menu_t *menu_ptr)
bool	wlmtk_menu_set_style (wlmtk_menu_t *menu_ptr, wlmtk_menu_style_ref_t *style_ref_ptr)
void	wlmtk_menu_set_open (wlmtk_menu_t *menu_ptr, bool opened)
bool	wlmtk_menu_is_open (wlmtk_menu_t *menu_ptr)
void	wlmtk_menu_set_mode (wlmtk_menu_t *menu_ptr, enum wlmtk_menu_mode mode)
enum wlmtk_menu_mode	wlmtk_menu_get_mode (wlmtk_menu_t *menu_ptr)
void	wlmtk_menu_add_item (wlmtk_menu_t *menu_ptr, wlmtk_menu_item_t *menu_item_ptr)
void	wlmtk_menu_remove_item (wlmtk_menu_t *menu_ptr, wlmtk_menu_item_t *menu_item_ptr)
void	wlmtk_menu_set_parent_item (wlmtk_menu_t *menu_ptr, wlmtk_menu_item_t *menu_item_ptr)
wlmtk_menu_item_t *	wlmtk_menu_get_parent_item (wlmtk_menu_t *menu_ptr)
void	wlmtk_menu_request_item_highlight (wlmtk_menu_t *menu_ptr, wlmtk_menu_item_t *menu_item_ptr)
size_t	wlmtk_menu_items_size (wlmtk_menu_t *menu_ptr)
wlmtk_menu_item_t *	wlmtk_menu_item_at (wlmtk_menu_t *menu_ptr, size_t i)
struct wlmtk_menu_style *	wlmtk_menu_style_create (void)
wlmtk_menu_style_ref_t *	wlmtk_menu_style_to_ref (struct wlmtk_menu_style *menu_style_ptr)
const struct wlmtk_menu_style *	wlmtk_menu_style_ref_retain (wlmtk_menu_style_ref_t *ref_ptr)
void	wlmtk_menu_style_ref_release (wlmtk_menu_style_ref_t *ref_ptr)
bool	wlmtk_menu_style_decode (bspl_object_t *object_ptr, const union bspl_desc_value *desc_value_ptr, void *value_ptr)
bool	wlmtk_menu_style_decode_init (void *dst_ptr)
void	wlmtk_menu_style_decode_fini (void *dst_ptr)
static void	test_pointer_highlight (bs_test_t *test_ptr)
static void	test_set_mode (bs_test_t *test_ptr)
static void	test_keyboard_navigation (bs_test_t *test_ptr)
static void	test_keyboard_navigation_nested (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmtk_menu_element_vmt
static const wlmtk_element_vmt_t	_wlmtk_menu_box_element_vmt
static const bspl_desc_t	_wlmtk_menu_style_desc []
static const bs_test_case_t	_wlmtk_menu_test_cases []
const bs_test_set_t	wlmtk_menu_test_set
static struct wlmtk_menu_style_holder	_test_style_holder

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_menu_box_element_destroy()

void _wlmtk_menu_box_element_destroy ( wlmtk_element_t *  element_ptr )

static

Dtor for wlmtk_menu_t::box.

_wlmtk_menu_element_destroy()

void _wlmtk_menu_element_destroy ( wlmtk_element_t *  element_ptr )

static

Wraps to dtor. Implements wlmtk_element_vmt_t::destroy.

_wlmtk_menu_element_keyboard_sym()

bool _wlmtk_menu_element_keyboard_sym ( wlmtk_element_t *  element_ptr, xkb_keysym_t  keysym, enum xkb_key_direction  direction, uint32_t  modifiers  )

static

Implements wlmtk_element_vmt_t::keyboard_sym. Translated keys.

_wlmtk_menu_element_pointer_button()

bool _wlmtk_menu_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

If the menu is in right-click mode, acts on right-button events and signals the menu to close.

Implementation of wlmtk_element_vmt_t::pointer_button.

Parameters

element_ptr
button_event_ptr

Returns

whether the button event was claimed.

_wlmtk_menu_eliminate_item()

void _wlmtk_menu_eliminate_item ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Callback for bs_dllist_for_each: Removes item from items, destroys it.

_wlmtk_menu_set_item_mode()

void _wlmtk_menu_set_item_mode ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Callback for bs_dllist_for_each: Sets the menu mode for the item.

Parameters

dlnode_ptr
ud_ptr

_wlmtk_menu_set_item_style()

bool _wlmtk_menu_set_item_style ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Callback for bs_dllist_all: Sets the style for each menu item.

Parameters

dlnode_ptr
ud_ptr

Returns

true on success.

_wlmtk_menu_style_destroy()

void _wlmtk_menu_style_destroy ( bs_ref_t *  ref_ptr )

static

Destroys the menu style.

_wlmtk_menu_this_or_next_non_disabled_dlnode()

bs_dllist_node_t * _wlmtk_menu_this_or_next_non_disabled_dlnode ( bs_dllist_node_t *  dlnode_ptr, bs_dllist_node_iterator_t  iterator  )

static

Returns the given-or-next non-disabled menu item, from dlnode_ptr.

Parameters

dlnode_ptr
iterator	Iterator to reach the "next" item.

Returns

A pointer to wlmtk_menu_item_t::dlnode of dlnode_ptr (or the the next non-disabled item), or NULL.

test_keyboard_navigation()

void test_keyboard_navigation ( bs_test_t *  test_ptr )

static

Tests keyboard navigation within the menu.

test_keyboard_navigation_nested()

void test_keyboard_navigation_nested ( bs_test_t *  test_ptr )

static

Tests keyboard navigation with nested menus.

test_pointer_highlight()

void test_pointer_highlight ( bs_test_t *  test_ptr )

static

Tests that pointer moves highlight the items.

test_set_mode()

void test_set_mode ( bs_test_t *  test_ptr )

static

Tests setting the menu's mode.

wlmtk_menu_add_item()

void wlmtk_menu_add_item	(	wlmtk_menu_t *	menu_ptr,
		wlmtk_menu_item_t *	menu_item_ptr
	)

Adds a menu item to the menu.

Parameters

menu_ptr
menu_item_ptr

wlmtk_menu_base()

wlmtk_base_t * wlmtk_menu_base

(

wlmtk_menu_t *

menu_ptr

)

Returns

pointer to the menu's wlmtk_base_t superclass.

wlmtk_menu_create()

wlmtk_menu_t * wlmtk_menu_create

(

wlmtk_menu_style_ref_t *

style_ref_ptr

)

Creates a menu.

Parameters

style_ref_ptr

Returns

Pointer to the menu state or NULL on error.

wlmtk_menu_destroy()

void wlmtk_menu_destroy

(

wlmtk_menu_t *

menu_ptr

)

Destroys the menu.

Parameters

menu_ptr

wlmtk_menu_element()

wlmtk_element_t * wlmtk_menu_element

(

wlmtk_menu_t *

menu_ptr

)

Returns

pointer to the menu's wlmtk_element_t superclass.

wlmtk_menu_events()

wlmtk_menu_events_t * wlmtk_menu_events

(

wlmtk_menu_t *

menu_ptr

)

Returns

a pointer to wlmtk_menu_t::events.

wlmtk_menu_get_mode()

enum wlmtk_menu_mode wlmtk_menu_get_mode

(

wlmtk_menu_t *

menu_ptr

)

Returns

mode of the menu.

See also

wlmtk_menu_set_mode.

wlmtk_menu_get_parent_item()

wlmtk_menu_item_t * wlmtk_menu_get_parent_item

(

wlmtk_menu_t *

menu_ptr

)

Returns

the parent menu item, if this is a submenu. NULL otherwise.

wlmtk_menu_is_open()

bool wlmtk_menu_is_open

(

wlmtk_menu_t *

menu_ptr

)

Returns

whether the menu is open, ie. visible.

wlmtk_menu_item_at()

wlmtk_menu_item_t * wlmtk_menu_item_at	(	wlmtk_menu_t *	menu_ptr,
		size_t	i
	)

Parameters

menu_ptr
i

Returns

the i-th element of wlmtk_menu_t::items, or NULL if i is out of bounds.

wlmtk_menu_items_size()

size_t wlmtk_menu_items_size

(

wlmtk_menu_t *

menu_ptr

)

Parameters

menu_ptr

Returns

the size of wlmtk_menu_t::items.

wlmtk_menu_remove_item()

void wlmtk_menu_remove_item	(	wlmtk_menu_t *	menu_ptr,
		wlmtk_menu_item_t *	menu_item_ptr
	)

Removes a menu item from the menu.

Parameters

menu_ptr
menu_item_ptr

wlmtk_menu_request_item_highlight()

void wlmtk_menu_request_item_highlight	(	wlmtk_menu_t *	menu_ptr,
		wlmtk_menu_item_t *	menu_item_ptr
	)

Requests that menu_item_ptr be highlighted.

Parameters

menu_ptr
menu_item_ptr

wlmtk_menu_set_mode()

void wlmtk_menu_set_mode	(	wlmtk_menu_t *	menu_ptr,
		enum wlmtk_menu_mode	mode
	)

Sets the mode of the menu.

Parameters

menu_ptr
mode

wlmtk_menu_set_open()

void wlmtk_menu_set_open	(	wlmtk_menu_t *	menu_ptr,
		bool	opened
	)

Opens the menu: Makes it visible or invisible, and resets state if needed.

Parameters

menu_ptr
opened

wlmtk_menu_set_parent_item()

void wlmtk_menu_set_parent_item	(	wlmtk_menu_t *	menu_ptr,
		wlmtk_menu_item_t *	menu_item_ptr
	)

Registers menu_item_ptr as this submenu's parent item.

Must be called only from wlmtk_menu_item_set_submenu.

Parameters

menu_ptr
menu_item_ptr

wlmtk_menu_set_style()

bool wlmtk_menu_set_style	(	wlmtk_menu_t *	menu_ptr,
		wlmtk_menu_style_ref_t *	style_ref_ptr
	)

Sets the menu's style.

Parameters

menu_ptr
style_ref_ptr	Reference to the new style.

Returns

true on success.

wlmtk_menu_style_create()

struct wlmtk_menu_style * wlmtk_menu_style_create

(

void

)

Creates a holder for the menu style, with initialized reference.

Returns

Pointer to wlmtk_menu_style. To destroy, call wlmtk_menu_style_ref_release on wlmtk_menu_style_to_ref.

wlmtk_menu_style_decode()

bool wlmtk_menu_style_decode	(	bspl_object_t *	object_ptr,
		const union bspl_desc_value *	desc_value_ptr,
		void *	value_ptr
	)

Decodes dict at object_ptr into wlmtk_menu_style at value_ptr

wlmtk_menu_style_decode_fini()

void wlmtk_menu_style_decode_fini

(

void *

dst_ptr

)

Fini.

wlmtk_menu_style_decode_init()

bool wlmtk_menu_style_decode_init

(

void *

dst_ptr

)

Initializer.

wlmtk_menu_style_ref_release()

void wlmtk_menu_style_ref_release

(

wlmtk_menu_style_ref_t *

ref_ptr

)

Releases a reference.

wlmtk_menu_style_ref_retain()

const struct wlmtk_menu_style * wlmtk_menu_style_ref_retain

(

wlmtk_menu_style_ref_t *

ref_ptr

)

Retains a reference.

Returns

a read-only style.

wlmtk_menu_style_to_ref()

wlmtk_menu_style_ref_t * wlmtk_menu_style_to_ref

(

struct wlmtk_menu_style *

menu_style_ptr

)

Returns

the wlmtk_menu_style_ref_t for the style.

Variable Documentation

_test_style_holder

struct wlmtk_menu_style_holder _test_style_holder

static

Initial value:

= {
    .msr = { .reference = { .count = 1 } },
    .style = {
        .margin = { .width = 2 },
        .border = { .width = 2 },
        .item = { .height = 10, .bezel_width=1, .width = 100 }
    }
}

For tests: Meu style to apply.

_wlmtk_menu_box_element_vmt

const wlmtk_element_vmt_t _wlmtk_menu_box_element_vmt

static

Initial value:

= {
    .destroy = _wlmtk_menu_box_element_destroy
}

Extra override for the box element. Does not have a dtor by default.

_wlmtk_menu_element_vmt

const wlmtk_element_vmt_t _wlmtk_menu_element_vmt

static

Initial value:

= {
    .keyboard_sym = _wlmtk_menu_element_keyboard_sym,
    .destroy = _wlmtk_menu_element_destroy,
    .pointer_button = _wlmtk_menu_element_pointer_button,
}

The superclass' element virtual method table.

_wlmtk_menu_style_desc

const bspl_desc_t _wlmtk_menu_style_desc[]

static

Initial value:

= {
    BSPL_DESC_DICT(
        "Item", true, struct wlmtk_menu_style, item, item,
        wlmtk_menu_item_style_desc),
    BSPL_DESC_DICT(
        "Margin", true, struct wlmtk_menu_style, margin, margin,
        wlmtk_style_margin_desc),
    BSPL_DESC_DICT(
        "Border", true, struct wlmtk_menu_style, border, border,
        wlmtk_style_margin_desc),

}

Descriptor for decoding the "Menu" dictionary.

_wlmtk_menu_test_cases

const bs_test_case_t _wlmtk_menu_test_cases[]

static

Initial value:

= {
    { 1, "pointer_highlight", test_pointer_highlight },
    { 1, "set_mode", test_set_mode },
    { 1, "keyboard_navigation", test_keyboard_navigation },
    { 1, "keyboard_navigation_nested", test_keyboard_navigation_nested },

}

Test cases

wlmtk_menu_test_set

const bs_test_set_t wlmtk_menu_test_set

Initial value:

= BS_TEST_SET(
    true, "menu", _wlmtk_menu_test_cases)

Unit test cases.
