server.c File Reference

#include "server.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <linux/input-event-codes.h>
#include <stdlib.h>
#include <wayland-server-protocol.h>
#include <wayland-util.h>
#include <xkbcommon/xkbcommon-keysyms.h>
#include <wlr/backend.h>
#include <wlr/types/wlr_cursor.h>
#include <wlr/types/wlr_data_device.h>
#include <wlr/types/wlr_input_device.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include "keyboard.h"
#include "toolkit/toolkit.h"

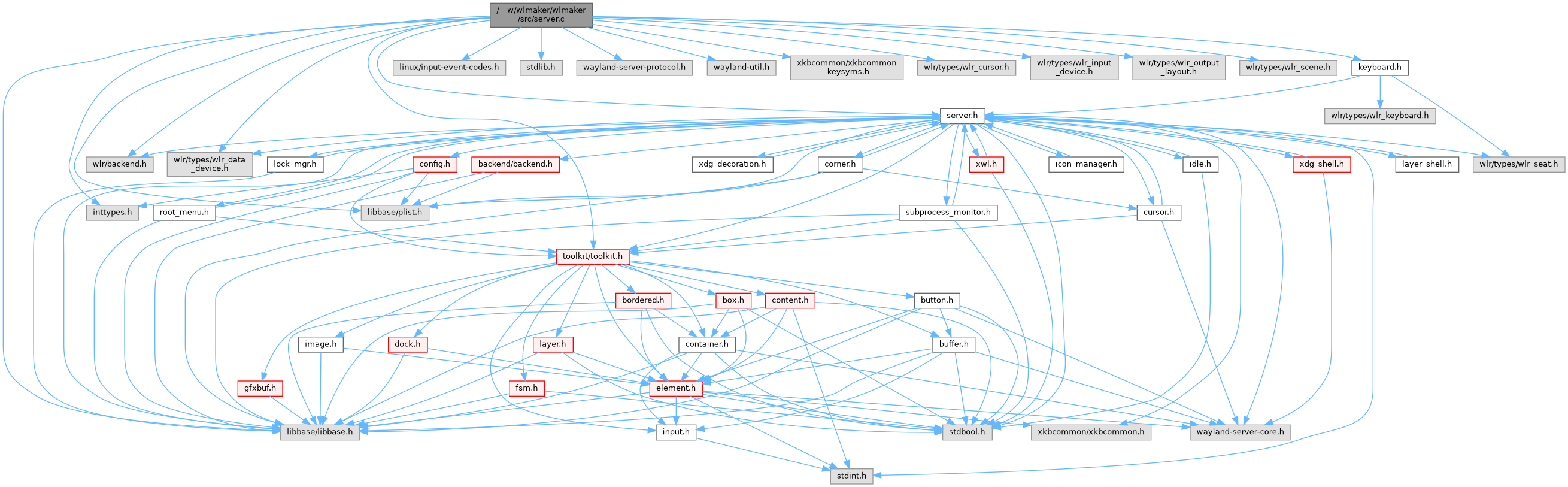

Include dependency graph for server.c:

Classes
struct	wlmaker_input_device_t
struct	_wlmaker_key_binding_t

Functions
static bool	register_input_device (wlmaker_server_t *server_ptr, struct wlr_input_device *wlr_input_device_ptr, void *handle_ptr)
static void	handle_new_input_device (struct wl_listener *listener_ptr, void *data_ptr)
static void	handle_destroy_input_device (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmaker_server_unclaimed_button_event_handler (struct wl_listener *listener_ptr, void *data_ptr)
wlmaker_server_t *	wlmaker_server_create (bspl_dict_t *config_dict_ptr, const wlmaker_server_options_t *options_ptr)
void	wlmaker_server_destroy (wlmaker_server_t *server_ptr)
void	wlmaker_server_activate_task_list (wlmaker_server_t *server_ptr)
void	wlmaker_server_deactivate_task_list (wlmaker_server_t *server_ptr)
struct wlr_output *	wlmaker_server_get_output_at_cursor (wlmaker_server_t *server_ptr)
wlmaker_key_binding_t *	wlmaker_server_bind_key (wlmaker_server_t *server_ptr, const wlmaker_key_combo_t *key_combo_ptr, wlmaker_keybinding_callback_t callback)
void	wlmaker_server_unbind_key (wlmaker_server_t *server_ptr, wlmaker_key_binding_t *key_binding_ptr)
bool	wlmaker_keyboard_process_bindings (wlmaker_server_t *server_ptr, xkb_keysym_t keysym, uint32_t modifiers)
static void	test_bind (bs_test_t *test_ptr)
bool	test_binding_callback (const wlmaker_key_combo_t *key_combo_ptr)

Variables
static const char *	seat_name_ptr = "seat0"
const uint32_t	wlmaker_modifier_default_mask
const bs_test_case_t	wlmaker_server_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmaker_server_unclaimed_button_event_handler()

void _wlmaker_server_unclaimed_button_event_handler ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles unclaimed button events: Right 'down' opens root menu.

handle_destroy_input_device()

void handle_destroy_input_device ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the destroy signal raised by wlr_input_device.

Parameters

listener_ptr
data_ptr

handle_new_input_device()

void handle_new_input_device ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the new_input signal raised by wlr_backend.

Parameters

listener_ptr
data_ptr

register_input_device()

bool register_input_device ( wlmaker_server_t *  server_ptr, struct wlr_input_device *  wlr_input_device_ptr, void *  handle_ptr  )

static

Registers the input device at |handle_ptr| with |server_ptr|.

Parameters

server_ptr
wlr_input_device_ptr
handle_ptr

Returns

true on success.

test_bind()

void test_bind ( bs_test_t *  test_ptr )

static

Tests key bindings.

test_binding_callback()

bool test_binding_callback

(

const wlmaker_key_combo_t *

key_combo_ptr

)

Test helper: Callback for a keybinding.

wlmaker_keyboard_process_bindings()

bool wlmaker_keyboard_process_bindings	(	wlmaker_server_t *	server_ptr,
		xkb_keysym_t	keysym,
		uint32_t	modifiers
	)

Processes key bindings: Call back if a matching binding is found.

Parameters

server_ptr
keysym
modifiers

Returns

true if a binding was found AND the callback returned true.

wlmaker_server_activate_task_list()

void wlmaker_server_activate_task_list

(

wlmaker_server_t *

server_ptr

)

Activates the task list.

Parameters

server_ptr

wlmaker_server_bind_key()

wlmaker_key_binding_t * wlmaker_server_bind_key	(	wlmaker_server_t *	server_ptr,
		const wlmaker_key_combo_t *	key_combo_ptr,
		wlmaker_keybinding_callback_t	callback
	)

Binds a particular key to a callback.

Parameters

server_ptr
key_combo_ptr
callback

Returns

The key binding handle or NULL on error.

wlmaker_server_create()

wlmaker_server_t * wlmaker_server_create	(	bspl_dict_t *	config_dict_ptr,
		const wlmaker_server_options_t *	options_ptr
	)

Creates the server and initializes all needed sub-modules.

Parameters

config_dict_ptr	Configuration, as dictionary object. The server will keep a reference on it until destroyed.
options_ptr	Options for the server. The server expects the pointed area to outlive the server.

Returns

The server handle or NULL on failure. The handle must be freed by calling wlmaker_server_destroy().

wlmaker_server_deactivate_task_list()

void wlmaker_server_deactivate_task_list

(

wlmaker_server_t *

server_ptr

)

De-activates the task list.

Parameters

server_ptr

wlmaker_server_destroy()

void wlmaker_server_destroy

(

wlmaker_server_t *

server_ptr

)

Destroys the server handle, as created by wlmaker_server_create().

Parameters

server_ptr

wlmaker_server_get_output_at_cursor()

struct wlr_output * wlmaker_server_get_output_at_cursor

(

wlmaker_server_t *

server_ptr

)

Looks up which output serves the current cursor coordinates and returns that.

Parameters

server_ptr

Returns

Pointer to the output at the seat's cursor position.

wlmaker_server_unbind_key()

void wlmaker_server_unbind_key	(	wlmaker_server_t *	server_ptr,
		wlmaker_key_binding_t *	key_binding_ptr
	)

Releases a key binding.

See also

wlmaker_bind_key.

Parameters

server_ptr
key_binding_ptr

Variable Documentation

seat_name_ptr

const char* seat_name_ptr = "seat0"

static

Name of the "seat".

wlmaker_modifier_default_mask

const uint32_t wlmaker_modifier_default_mask

Initial value:

= (
    WLR_MODIFIER_SHIFT |

    WLR_MODIFIER_CTRL |
    WLR_MODIFIER_ALT |
    WLR_MODIFIER_MOD2 |
    WLR_MODIFIER_MOD3 |
    WLR_MODIFIER_LOGO |
    WLR_MODIFIER_MOD5)

All modifiers to use by default.

wlmaker_server_test_cases

const bs_test_case_t wlmaker_server_test_cases[]

Initial value:

= {
    { 1, "bind", test_bind },
    { 0, NULL, NULL }
}

Test cases for the server.
