rectangle.c File Reference

#include "rectangle.h"
#include <libbase/libbase.h>
#include <stdbool.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wayland-util.h>
#include <wlr/types/wlr_scene.h>
#include "container.h"
#include "input.h"
#include "util.h"

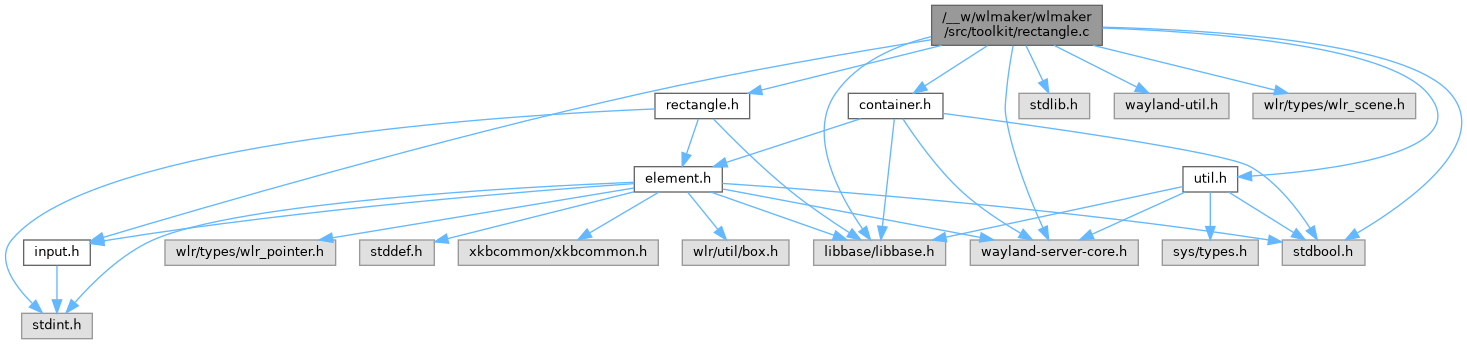

Include dependency graph for rectangle.c:

Classes
struct	_wlmtk_rectangle_t

Functions
static void	_wlmtk_rectangle_element_destroy (wlmtk_element_t *element_ptr)
static struct wlr_scene_node *	_wlmtk_rectangle_element_create_scene_node (wlmtk_element_t *element_ptr, struct wlr_scene_tree *wlr_scene_tree_ptr)
static bool	_wlmtk_rectangle_element_pointer_motion (wlmtk_element_t *element_ptr, wlmtk_pointer_motion_event_t *motion_event_ptr)
static void	_wlmtk_rectangle_get_dimensions (wlmtk_element_t *element_ptr, int *x1_ptr, int *y1_ptr, int *x2_ptr, int *y2_ptr)
static void	handle_wlr_scene_rect_node_destroy (struct wl_listener *listener_ptr, void *data_ptr)
wlmtk_rectangle_t *	wlmtk_rectangle_create (int width, int height, uint32_t color)
void	wlmtk_rectangle_destroy (wlmtk_rectangle_t *rectangle_ptr)
void	wlmtk_rectangle_set_size (wlmtk_rectangle_t *rectangle_ptr, int width, int height)
void	wlmtk_rectangle_set_color (wlmtk_rectangle_t *rectangle_ptr, uint32_t color)
wlmtk_element_t *	wlmtk_rectangle_element (wlmtk_rectangle_t *rectangle_ptr)
wlmtk_rectangle_t *	wlmtk_rectangle_from_element (wlmtk_element_t *element_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)
static void	test_create_destroy_scene (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmtk_rectangle_element_vmt
const bs_test_case_t	wlmtk_rectangle_test_cases []

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_rectangle_element_create_scene_node()

struct wlr_scene_node * _wlmtk_rectangle_element_create_scene_node ( wlmtk_element_t *  element_ptr, struct wlr_scene_tree *  wlr_scene_tree_ptr  )

static

Implementation of the superclass wlmtk_element_t::create_scene_node method.

Creates a struct wlr_scene_rect attached to wlr_scene_tree_ptr.

Parameters

element_ptr
wlr_scene_tree_ptr

_wlmtk_rectangle_element_destroy()

void _wlmtk_rectangle_element_destroy ( wlmtk_element_t *  element_ptr )

static

Virtual dtor: Invoke the rectangle's dtor.

_wlmtk_rectangle_element_pointer_motion()

bool _wlmtk_rectangle_element_pointer_motion ( wlmtk_element_t *  element_ptr, wlmtk_pointer_motion_event_t *  motion_event_ptr  )

static

Implements wlmtk_element_vmt_t::pointer_motion. Sets cursor.

_wlmtk_rectangle_get_dimensions()

void _wlmtk_rectangle_get_dimensions ( wlmtk_element_t *  element_ptr, int *  x1_ptr, int *  y1_ptr, int *  x2_ptr, int *  y2_ptr  )

static

Implementation of the element's get_dimensions method: Return dimensions.

Parameters

element_ptr
x1_ptr	0.
y1_ptr	0.
x2_ptr	Width. May be NULL.
y2_ptr	Height. May be NULL.

handle_wlr_scene_rect_node_destroy()

void handle_wlr_scene_rect_node_destroy ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles the 'destroy' callback of wlr_scene_rect_ptr->node.

Will reset the wlr_scene_rect_ptr value. Destruction of the node had been triggered (hence the callback).

Parameters

listener_ptr
data_ptr

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Tests setup and teardown of rectangle.

test_create_destroy_scene()

void test_create_destroy_scene ( bs_test_t *  test_ptr )

static

Tests setup and teardown of rectangle, when attached to scene graph.

wlmtk_rectangle_create()

wlmtk_rectangle_t * wlmtk_rectangle_create	(	int	width,
		int	height,
		uint32_t	color
	)

Creates a rectangle. Useful for margins and borders.

Parameters

width
height
color

Returns

Pointer to the rectangle state or NULL on error.

wlmtk_rectangle_destroy()

void wlmtk_rectangle_destroy

(

wlmtk_rectangle_t *

rectangle_ptr

)

Destroys the rectangle.

Parameters

rectangle_ptr

wlmtk_rectangle_element()

wlmtk_element_t * wlmtk_rectangle_element

(

wlmtk_rectangle_t *

rectangle_ptr

)

Returns the superclass wlmtk_element_t of the rectangle.

wlmtk_rectangle_from_element()

wlmtk_rectangle_t * wlmtk_rectangle_from_element

(

wlmtk_element_t *

element_ptr

)

Gets the wlmtk_rectangle_t instance from it's element superclass.

Requires element_ptr as pointer to wlmtk_rectangle_t::super_element.

Parameters

element_ptr

Returns

The pointer to the wlmtk_rectangle_t instance.

wlmtk_rectangle_set_color()

void wlmtk_rectangle_set_color	(	wlmtk_rectangle_t *	rectangle_ptr,
		uint32_t	color
	)

Sets (or updates) the color of the rectangle.

Parameters

rectangle_ptr
color

wlmtk_rectangle_set_size()

void wlmtk_rectangle_set_size	(	wlmtk_rectangle_t *	rectangle_ptr,
		int	width,
		int	height
	)

Sets (or updates) the size of the rectangle.

Parameters

rectangle_ptr
width
height

Variable Documentation

_wlmtk_rectangle_element_vmt

const wlmtk_element_vmt_t _wlmtk_rectangle_element_vmt

static

Initial value:

= {
    .destroy = _wlmtk_rectangle_element_destroy,
    .create_scene_node = _wlmtk_rectangle_element_create_scene_node,
    .pointer_motion = _wlmtk_rectangle_element_pointer_motion,
    .get_dimensions = _wlmtk_rectangle_get_dimensions,
}

Virtual method table of the rectangle, extending the element.

wlmtk_rectangle_test_cases

const bs_test_case_t wlmtk_rectangle_test_cases[]

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 1, "create_destroy_scene", test_create_destroy_scene },
    { 0, NULL, NULL }
}

Unit tests.
