menu_item.c File Reference

#include "menu_item.h"
#include <cairo.h>
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <linux/input-event-codes.h>
#include <stdlib.h>
#include "base.h"
#include "buffer.h"
#include "gfxbuf.h"
#include "input.h"
#include "primitives.h"
#include "util.h"

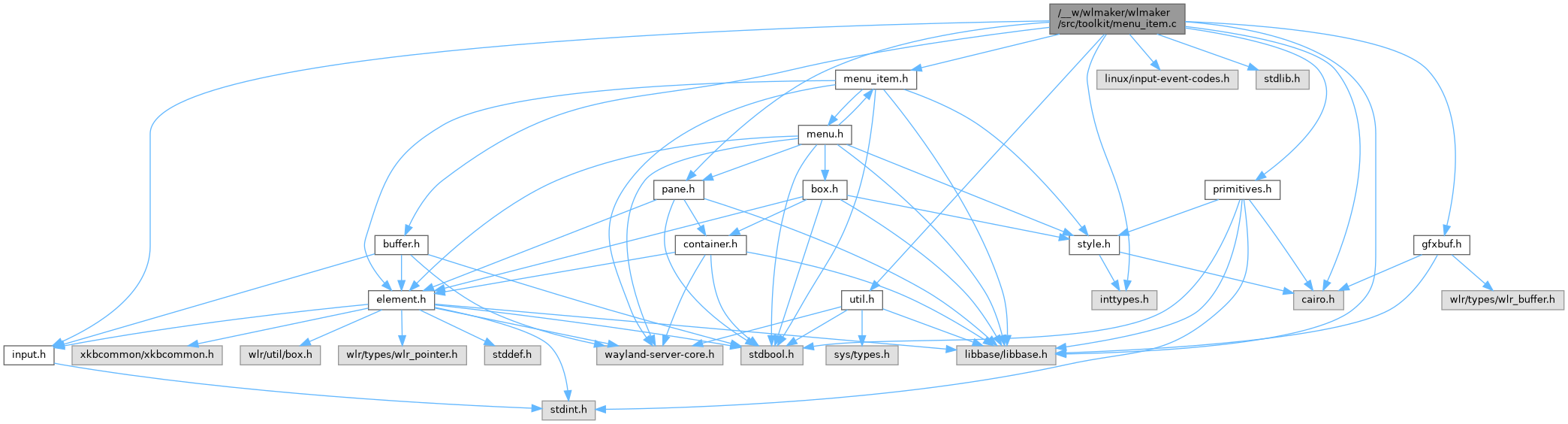

Include dependency graph for menu_item.c:

Classes
struct	_wlmtk_menu_item_t

Functions
static bool	_wlmtk_menu_item_redraw (wlmtk_menu_item_t *menu_item_ptr, const struct wlmtk_menu_item_style *style_ptr)
static void	_wlmtk_menu_item_set_state (wlmtk_menu_item_t *menu_item_ptr, wlmtk_menu_item_state_t state)
static void	_wlmtk_menu_item_draw_state (wlmtk_menu_item_t *menu_item_ptr)
static struct wlr_buffer *	_wlmtk_menu_item_create_buffer (wlmtk_menu_item_t *menu_item_ptr, wlmtk_menu_item_state_t state, const struct wlmtk_menu_item_style *style_ptr)
static void	_wlmtk_menu_item_draw_submenu_hint (cairo_t *cairo_ptr, const struct wlmtk_menu_item_style *style_ptr, double x, double y)
static bool	_wlmtk_menu_item_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static void	_wlmtk_menu_item_element_destroy (wlmtk_element_t *element_ptr)
static void	_wlmtk_menu_item_handle_pointer_enter (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_menu_item_handle_pointer_leave (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_menu_item_handle_pointer_motion (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_menu_item_handle_open_changed (struct wl_listener *listener_ptr, void *data_ptr)
wlmtk_menu_item_t *	wlmtk_menu_item_create (wlmtk_menu_style_ref_t *style_ref_ptr)
void	wlmtk_menu_item_destroy (wlmtk_menu_item_t *menu_item_ptr)
wlmtk_menu_item_events_t *	wlmtk_menu_item_events (wlmtk_menu_item_t *menu_item_ptr)
bool	wlmtk_menu_item_set_style (wlmtk_menu_item_t *menu_item_ptr, wlmtk_menu_style_ref_t *style_ref_ptr)
void	wlmtk_menu_item_set_parent_menu (wlmtk_menu_item_t *menu_item_ptr, wlmtk_menu_t *menu_ptr)
void	wlmtk_menu_item_set_submenu (wlmtk_menu_item_t *menu_item_ptr, wlmtk_menu_t *submenu_ptr)
wlmtk_menu_t *	wlmtk_menu_item_get_submenu (wlmtk_menu_item_t *menu_item_ptr)
void	wlmtk_menu_item_set_mode (wlmtk_menu_item_t *menu_item_ptr, enum wlmtk_menu_mode mode)
enum wlmtk_menu_mode	wlmtk_menu_item_get_mode (wlmtk_menu_item_t *menu_item_ptr)
wlmtk_menu_item_state_t	wlmtk_menu_item_get_state (wlmtk_menu_item_t *menu_item_ptr)
bool	wlmtk_menu_item_set_text (wlmtk_menu_item_t *menu_item_ptr, const char *text_ptr)
void	wlmtk_menu_item_set_enabled (wlmtk_menu_item_t *menu_item_ptr, bool enabled)
bool	wlmtk_menu_item_set_highlighted (wlmtk_menu_item_t *menu_item_ptr, bool highlighted)
void	wlmtk_menu_item_trigger (wlmtk_menu_item_t *menu_item_ptr)
bs_dllist_node_t *	wlmtk_dlnode_from_menu_item (wlmtk_menu_item_t *menu_item_ptr)
wlmtk_menu_item_t *	wlmtk_menu_item_from_dlnode (bs_dllist_node_t *dlnode_ptr)
wlmtk_element_t *	wlmtk_menu_item_element (wlmtk_menu_item_t *menu_item_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)
static void	test_buffers (bs_test_t *test_ptr)
static void	test_pointer (bs_test_t *test_ptr)
static void	test_triggered (bs_test_t *test_ptr)
static void	test_right_click (bs_test_t *test_ptr)
static void	test_submenu_highlight (bs_test_t *test_ptr)

Variables
static const wlmtk_element_vmt_t	_wlmtk_menu_item_element_vmt
const bspl_desc_t	wlmtk_menu_item_style_desc []
static const struct wlmtk_menu_style	_test_style
static const bs_test_case_t	_wlmtk_menu_item_test_cases []
const bs_test_set_t	wlmtk_menu_item_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2024 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_menu_item_create_buffer()

struct wlr_buffer * _wlmtk_menu_item_create_buffer ( wlmtk_menu_item_t *  menu_item_ptr, wlmtk_menu_item_state_t  state, const struct wlmtk_menu_item_style *  style_ptr  )

static

Creates a wlr_buffer with the menu item drawn for the given state.

Parameters

menu_item_ptr
state
style_ptr

Returns

A wlr_buffer, or NULL on error.

_wlmtk_menu_item_draw_state()

void _wlmtk_menu_item_draw_state ( wlmtk_menu_item_t *  menu_item_ptr )

static

Applies the state: Sets the parent buffer's content accordingly.

_wlmtk_menu_item_draw_submenu_hint()

void _wlmtk_menu_item_draw_submenu_hint ( cairo_t *  cairo_ptr, const struct wlmtk_menu_item_style *  style_ptr, double  x, double  y  )

static

Draws the hint for submenu (triangle) into the cairo at (x, y).

Parameters

cairo_ptr
style_ptr
x
y

_wlmtk_menu_item_element_destroy()

void _wlmtk_menu_item_element_destroy ( wlmtk_element_t *  element_ptr )

static

Implements wlmtk_element_vmt_t::destroy. Dtor for the menu item.

_wlmtk_menu_item_element_pointer_button()

bool _wlmtk_menu_item_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

Checks if the button event is a click, and calls the handler.

_wlmtk_menu_item_handle_open_changed()

void _wlmtk_menu_item_handle_open_changed ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles wlmtk_menu_events_t::open_changed. Updates item highlight.

_wlmtk_menu_item_handle_pointer_enter()

void _wlmtk_menu_item_handle_pointer_enter ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles when the pointer enters the element: Highlights, if enabled.

_wlmtk_menu_item_handle_pointer_leave()

void _wlmtk_menu_item_handle_pointer_leave ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles when the pointer leaves the element: Ends highlight, in case there is no submenu currently visible.

Parameters

listener_ptr
data_ptr

_wlmtk_menu_item_handle_pointer_motion()

void _wlmtk_menu_item_handle_pointer_motion ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles when there is pointer motion within the element. (Re)gain highlight.

Parameters

listener_ptr
data_ptr

_wlmtk_menu_item_redraw()

bool _wlmtk_menu_item_redraw ( wlmtk_menu_item_t *  menu_item_ptr, const struct wlmtk_menu_item_style *  style_ptr  )

static

Redraws the buffers for the menu item. Also updates the buffer state.

_wlmtk_menu_item_set_state()

void _wlmtk_menu_item_set_state ( wlmtk_menu_item_t *  menu_item_ptr, wlmtk_menu_item_state_t  state  )

static

Sets menu state: Sets the parent buffer's content accordingly.

test_buffers()

void test_buffers ( bs_test_t *  test_ptr )

static

Exercises drawing.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Exercises setup and teardown and a few accessors.

test_pointer()

void test_pointer ( bs_test_t *  test_ptr )

static

Tests pointer entering & leaving.

test_right_click()

void test_right_click ( bs_test_t *  test_ptr )

static

Tests button events in right-click mode.

test_submenu_highlight()

void test_submenu_highlight ( bs_test_t *  test_ptr )

static

Tests the interaction of submenu and menu item highlighting.

We want the following:

• when the item with submenu highlights, the submenu opens.
• move the cursor onto submenu, check it highlights.
• if highlighting is turned off, the item closes the submenu.

Parameters

test_ptr

test_triggered()

void test_triggered ( bs_test_t *  test_ptr )

static

Verifies desired clicks are passed to the handler.

wlmtk_dlnode_from_menu_item()

bs_dllist_node_t * wlmtk_dlnode_from_menu_item

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns pointer to wlmtk_menu_item_t::dlnode.

wlmtk_menu_item_create()

wlmtk_menu_item_t * wlmtk_menu_item_create

(

wlmtk_menu_style_ref_t *

style_ref_ptr

)

Creates a menu item.

Note: Menu items are created as 'visible' elements.

Parameters

style_ref_ptr

Reference of the menu's style.

Returns

Pointer to the menu item state, or NULL on failure.

wlmtk_menu_item_destroy()

void wlmtk_menu_item_destroy

(

wlmtk_menu_item_t *

menu_item_ptr

)

Destroys the menu item.

Parameters

menu_item_ptr

wlmtk_menu_item_element()

wlmtk_element_t * wlmtk_menu_item_element

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns a pointer to the superclass wlmtk_element_t.

wlmtk_menu_item_events()

wlmtk_menu_item_events_t * wlmtk_menu_item_events

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns pointer to the menu item's wlmtk_menu_item_t::events.

wlmtk_menu_item_from_dlnode()

wlmtk_menu_item_t * wlmtk_menu_item_from_dlnode

(

bs_dllist_node_t *

dlnode_ptr

)

Returns the base wlmtk_menu_item_t from dlnode_ptr.

wlmtk_menu_item_get_mode()

enum wlmtk_menu_mode wlmtk_menu_item_get_mode

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns

the mode of this item.

wlmtk_menu_item_get_state()

wlmtk_menu_item_state_t wlmtk_menu_item_get_state

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns

The state of the item, wlmtk_menu_item_t::state.

wlmtk_menu_item_get_submenu()

wlmtk_menu_t * wlmtk_menu_item_get_submenu

(

wlmtk_menu_item_t *

menu_item_ptr

)

Returns the submenu for this menu item.

Parameters

menu_item_ptr

Returns

the submenu of the item, or NULL.

wlmtk_menu_item_set_enabled()

void wlmtk_menu_item_set_enabled	(	wlmtk_menu_item_t *	menu_item_ptr,
		bool	enabled
	)

Sets whether the menu item is enabled or disabled.

Parameters

menu_item_ptr
enabled

wlmtk_menu_item_set_highlighted()

bool wlmtk_menu_item_set_highlighted	(	wlmtk_menu_item_t *	menu_item_ptr,
		bool	highlighted
	)

Sets the menu item as highlighted.

Parameters

menu_item_ptr
highlighted

Returns

false if the menu was not enabled, ie. could not be highlighted.

wlmtk_menu_item_set_mode()

void wlmtk_menu_item_set_mode	(	wlmtk_menu_item_t *	menu_item_ptr,
		enum wlmtk_menu_mode	mode
	)

Sets the menu's mode for this item.

Parameters

menu_item_ptr
mode

wlmtk_menu_item_set_parent_menu()

void wlmtk_menu_item_set_parent_menu	(	wlmtk_menu_item_t *	menu_item_ptr,
		wlmtk_menu_t *	menu_ptr
	)

Sets the menu this item belongs to.

Private: Should only be called by wlmtk_menu_add_item.

Parameters

menu_item_ptr
menu_ptr	May be NULL, to detach from menu.

wlmtk_menu_item_set_style()

bool wlmtk_menu_item_set_style	(	wlmtk_menu_item_t *	menu_item_ptr,
		wlmtk_menu_style_ref_t *	style_ref_ptr
	)

Udpates the style of this item.

Parameters

menu_item_ptr
style_ref_ptr	Reference of the menu's style.

Returns

true on success.

wlmtk_menu_item_set_submenu()

void wlmtk_menu_item_set_submenu	(	wlmtk_menu_item_t *	menu_item_ptr,
		wlmtk_menu_t *	submenu_ptr
	)

Sets the submenu for this menu item.

Parameters

menu_item_ptr
submenu_ptr	The submenu to set for the item. The item will take ownership of submenu_ptr, and destroy it when the item ist destroyed. Unless the submenu is detached again, by calling with a NULL argument.

wlmtk_menu_item_set_text()

bool wlmtk_menu_item_set_text	(	wlmtk_menu_item_t *	menu_item_ptr,
		const char *	text_ptr
	)

Sets or updates the text for the menu item.

Parameters

menu_item_ptr
text_ptr

wlmtk_menu_item_trigger()

void wlmtk_menu_item_trigger

(

wlmtk_menu_item_t *

menu_item_ptr

)

Triggers the menu item's action.

Parameters

menu_item_ptr

Variable Documentation

_test_style

const struct wlmtk_menu_style _test_style

static

Initial value:

= {
    .item = {
        .fill = {
            .type = WLMTK_STYLE_COLOR_DGRADIENT,
            .param = { .dgradient = { .from = 0xff102040, .to = 0xff4080ff }}
        },
        .highlighted_fill = {
            .type = WLMTK_STYLE_COLOR_SOLID,
            .param = { .solid = { .color = 0xffc0d0e0 } }
        },
        .font = { .face = "Helvetica", .size = 14 },
        .height = 24,
        .bezel_width = 1,
        .width = 200,
        .enabled_text_color = 0xfff0f060,
        .highlighted_text_color = 0xff204080,
        .disabled_text_color = 0xff807060,
    }
}

Style definition used for unit tests.

_wlmtk_menu_item_element_vmt

const wlmtk_element_vmt_t _wlmtk_menu_item_element_vmt

static

Initial value:

= {
    .pointer_button = _wlmtk_menu_item_element_pointer_button,
    .destroy = _wlmtk_menu_item_element_destroy,
}

Virtual method table for the menu item's super class: Element.

_wlmtk_menu_item_test_cases

const bs_test_case_t _wlmtk_menu_item_test_cases[]

static

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },


    { 0, "buffers", test_buffers },
    { 1, "pointer", test_pointer },
    { 1, "triggered", test_triggered },
    { 1, "right_click", test_right_click },
    { 1, "submenu_highlight", test_submenu_highlight },

}

Test cases

wlmtk_menu_item_style_desc

const bspl_desc_t wlmtk_menu_item_style_desc[]

Initial value:

= {
    BSPL_DESC_CUSTOM(
        "Fill", true, struct wlmtk_menu_item_style, fill, fill,
        wlmtk_style_decode_fill, NULL, NULL, NULL),
    BSPL_DESC_CUSTOM(
        "HighlightedFill", true, struct wlmtk_menu_item_style,
        highlighted_fill, highlighted_fill,
        wlmtk_style_decode_fill, NULL, NULL, NULL),
    BSPL_DESC_DICT(
        "Font", true, struct wlmtk_menu_item_style, font, font,
        wlmtk_style_font_desc),
    BSPL_DESC_ARGB32(
        "EnabledTextColor", true, struct wlmtk_menu_item_style,
        enabled_text_color, enabled_text_color, 0),
    BSPL_DESC_ARGB32(
        "HighlightedTextColor", true, struct wlmtk_menu_item_style,
        highlighted_text_color, highlighted_text_color, 0),
    BSPL_DESC_ARGB32(
        "DisabledTextColor", true, struct wlmtk_menu_item_style,
        disabled_text_color, disabled_text_color, 0),
    BSPL_DESC_UINT64(
        "Height", true, struct wlmtk_menu_item_style, height, height, 20),
    BSPL_DESC_UINT64(
        "BezelWidth", true, struct wlmtk_menu_item_style,
        bezel_width, bezel_width, 1),
    BSPL_DESC_UINT64(
        "Width", true, struct wlmtk_menu_item_style, width, width, 80),

}

Descriptor for decoding the "Item" style dictionary.

wlmtk_menu_item_test_set

const bs_test_set_t wlmtk_menu_item_test_set

Initial value:

= BS_TEST_SET(
    true, "menu_item", _wlmtk_menu_item_test_cases)

Unit test cases.
