layer_surface.c File Reference

#include "layer_surface.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <stdlib.h>
#include <wayland-client-protocol.h>
#include "wlclient.h"
#include "wlr-layer-shell-unstable-v1-client-protocol.h"

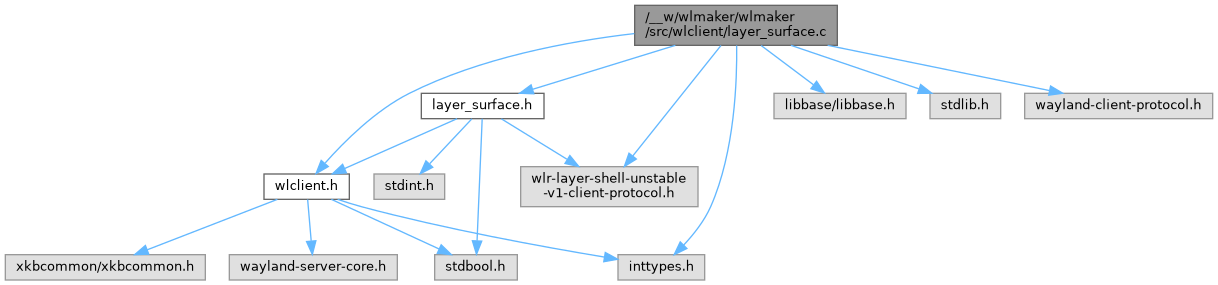

Include dependency graph for layer_surface.c:

Classes
struct	_wlmcl_layer_surface_t

Functions
static void	_wlmcl_layer_surface_handle_configure (void *data_ptr, struct zwlr_layer_surface_v1 *layer_surface_ptr, uint32_t serial, uint32_t width, uint32_t height)
static void	_wlmcl_layer_surface_handle_closed (void *data_ptr, struct zwlr_layer_surface_v1 *layer_surface_ptr)
bool	wlmcl_layer_shell_supported (wlmcl_client_t *wlclient_ptr)
wlmcl_layer_surface_t *	wlmcl_layer_surface_create (wlmcl_client_t *wlclient_ptr, uint32_t layer, const char *namespace_ptr, uint32_t anchor, uint32_t width, uint32_t height)
void	wlmcl_layer_surface_destroy (wlmcl_layer_surface_t *layer_surface_ptr)
void	wlmcl_layer_surface_request_size (wlmcl_layer_surface_t *layer_surface_ptr, uint32_t width, uint32_t height)
void	wlmcl_layer_surface_set_margin (wlmcl_layer_surface_t *layer_surface_ptr, int32_t top, int32_t right, int32_t bottom, int32_t left)
void	wlmcl_layer_surface_set_exclusive_zone (wlmcl_layer_surface_t *layer_surface_ptr, int32_t pixels)
struct wl_surface *	wlmcl_layer_surface_wl_surface (wlmcl_layer_surface_t *layer_surface_ptr)
void	wlmcl_layer_surface_register_configure_callback (wlmcl_layer_surface_t *layer_surface_ptr, void(*callback)(void *ud_ptr, uint32_t width, uint32_t height), void *ud_ptr)

Variables
static const struct zwlr_layer_surface_v1_listener	_wlmcl_layer_surface_listener

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2026 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmcl_layer_surface_handle_closed()

void _wlmcl_layer_surface_handle_closed ( void *  data_ptr, struct zwlr_layer_surface_v1 *  layer_surface_ptr  )

static

Handler for the closed event of the layer surface.

Parameters

data_ptr	Untyped pointer to wlmcl_layer_surface_t.
layer_surface_ptr

_wlmcl_layer_surface_handle_configure()

void _wlmcl_layer_surface_handle_configure ( void *  data_ptr, struct zwlr_layer_surface_v1 *  layer_surface_ptr, uint32_t  serial, uint32_t  width, uint32_t  height  )

static

Handler for the configure event of the layer surface.

Parameters

data_ptr	Untyped pointer to wlmcl_layer_surface_t.
layer_surface_ptr
serial
width
height

wlmcl_layer_shell_supported()

bool wlmcl_layer_shell_supported

(

wlmcl_client_t *

wlclient_ptr

)

Returns whether the layer shell protocol is supported on the client.

Parameters

wlclient_ptr

wlmcl_layer_surface_create()

wlmcl_layer_surface_t * wlmcl_layer_surface_create	(	wlmcl_client_t *	wlclient_ptr,
		uint32_t	layer,
		const char *	namespace_ptr,
		uint32_t	anchor,
		uint32_t	width,
		uint32_t	height
	)

Creates a layer surface.

Parameters

wlclient_ptr
layer	One of zwlr_layer_shell_v1_layer.
namespace_ptr	Namespace string.
anchor	Bitwise OR of zwlr_layer_surface_v1_anchor.
width	Initial requested width in pixels. 0 to let the compositor decide (requires opposite anchors).
height	Initial requested height in pixels. 0 to let the compositor decide (requires opposite anchors).

Returns

State of the layer surface or NULL on error.

wlmcl_layer_surface_destroy()

void wlmcl_layer_surface_destroy

(

wlmcl_layer_surface_t *

layer_surface_ptr

)

Destroys the layer surface.

Parameters

layer_surface_ptr

wlmcl_layer_surface_register_configure_callback()

void wlmcl_layer_surface_register_configure_callback	(	wlmcl_layer_surface_t *	layer_surface_ptr,
		void(*)(void *ud_ptr, uint32_t width, uint32_t height)	callback,
		void *	ud_ptr
	)

Registers the callback to notify when the layer surface size/layout is determined or updated.

Parameters

layer_surface_ptr
callback
ud_ptr

wlmcl_layer_surface_request_size()

void wlmcl_layer_surface_request_size	(	wlmcl_layer_surface_t *	layer_surface_ptr,
		uint32_t	width,
		uint32_t	height
	)

Requests the specified size for the layer surface.

Parameters

layer_surface_ptr
width	Requested width in pixels. 0 to let the compositor decide.
height	Requested height in pixels. 0 to let the compositor decide.

wlmcl_layer_surface_set_exclusive_zone()

void wlmcl_layer_surface_set_exclusive_zone	(	wlmcl_layer_surface_t *	layer_surface_ptr,
		int32_t	pixels
	)

Sets the exclusive zone of the layer surface.

Parameters

layer_surface_ptr
pixels	The exclusive zone in pixels. Positive value reserves space to avoid occlusion by other (e.g. maximized) windows. 0 disables exclusive zone. -1 requests other windows be allowed to overlap.

wlmcl_layer_surface_set_margin()

void wlmcl_layer_surface_set_margin	(	wlmcl_layer_surface_t *	layer_surface_ptr,
		int32_t	top,
		int32_t	right,
		int32_t	bottom,
		int32_t	left
	)

Sets the margins of the layer surface from its anchor points.

Parameters

layer_surface_ptr
top
right
bottom
left

wlmcl_layer_surface_wl_surface()

struct wl_surface * wlmcl_layer_surface_wl_surface

(

wlmcl_layer_surface_t *

layer_surface_ptr

)

Returns the underlying Wayland surface of the layer surface.

Parameters

layer_surface_ptr

Returns

The wl_surface pointer.

Variable Documentation

_wlmcl_layer_surface_listener

const struct zwlr_layer_surface_v1_listener _wlmcl_layer_surface_listener

static

Initial value:

= {
    .configure = _wlmcl_layer_surface_handle_configure,
    .closed = _wlmcl_layer_surface_handle_closed,
}

Listeners for the layer surface.
