cursor.c File Reference

#include "cursor.h"
#include <ini.h>
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <linux/input-event-codes.h>
#include <stdlib.h>
#include <string.h>
#include <wayland-server-core.h>
#include <wayland-server-protocol.h>
#include <wlr/types/wlr_cursor.h>
#include <wlr/types/wlr_input_device.h>
#include <wlr/types/wlr_keyboard.h>
#include <wlr/types/wlr_seat.h>
#include <wlr/types/wlr_xcursor_manager.h>
#include "keyboard.h"
#include "toolkit/toolkit.h"

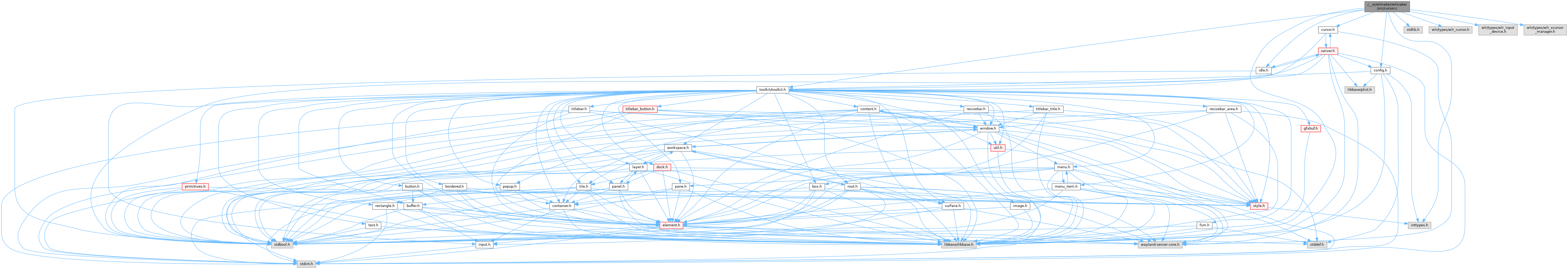

Include dependency graph for cursor.c:

Classes
struct	_wlmim_cursor_t

Functions
static void	_wlmim_cursor_handle_motion (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_handle_motion_absolute (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_handle_button (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_handle_axis (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_handle_frame (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_handle_seat_request_set_cursor (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmim_cursor_process_motion (wlmim_cursor_t *cursor_ptr, uint32_t time_msec)
char *	_wlmim_cursor_get_theme_name (const struct wlmim_cursor_style *style_ptr)
static int	_wlmim_cursor_theme_handler (void *ud_ptr, const char *section_ptr, const char *name_ptr, const char *value_ptr)
wlmim_cursor_t *	wlmim_cursor_create (wlmim_t *input_manager_ptr, const struct wlmim_cursor_style *style_ptr, const struct wlmim_cursor_options *options_ptr, struct wlr_output_layout *wlr_output_layout_ptr, struct wlr_seat *wlr_seat_ptr, wlmtk_root_t *root_ptr)
void	wlmim_cursor_destroy (wlmim_cursor_t *cursor_ptr)
bool	wlmim_cursor_set_style (wlmim_cursor_t *cursor_ptr, const struct wlmim_cursor_style *style_ptr)
struct wlr_cursor *	wlmim_cursor_wlr_cursor (wlmim_cursor_t *cursor_ptr)
void	wlmim_cursor_attach_input_device (wlmim_cursor_t *cursor_ptr, struct wlr_input_device *wlr_input_device_ptr)
void	wlmim_cursor_detach_input_device (wlmim_cursor_t *cursor_ptr, struct wlr_input_device *wlr_input_device_ptr)
static void	_wlmim_cursor_test_theme_name (bs_test_t *test_ptr)
static void	_wlmim_cursor_test_config (bs_test_t *test_ptr)

Variables
const bspl_desc_t	wlmim_cursor_style_desc []
const bspl_desc_t	wlmim_cursor_options_desc []
static const char *	_wlmim_cursor_system_config_file
static const char *	_wlmim_cursor_system_config_alternative_file
static const bs_test_case_t	_wlmim_cursor_test_cases []
const bs_test_set_t	wlmim_cursor_test_set

Detailed Description

Copyright

Copyright (c) 2026 Philipp Kaeser (kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h) Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmim_cursor_get_theme_name()

char * _wlmim_cursor_get_theme_name

(

const struct wlmim_cursor_style *

style_ptr

)

Returns a copy of the cursor theme's name to use, from configured style.

This will either be a copy of wlmim_cursor_style::name_ptr, or what is described by the system-wide cursor theme files.

Parameters

style_ptr

Returns

Cursor theme name, as string. Must be released via free().

_wlmim_cursor_handle_axis()

void _wlmim_cursor_handle_axis ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the axis event of wlr_cursor.

Parameters

listener_ptr
data_ptr	Points to a wlr_pointer_axis_event.

_wlmim_cursor_handle_button()

void _wlmim_cursor_handle_button ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the button event of wlr_cursor.

Parameters

listener_ptr
data_ptr	Points to a wlr_pointer_button_event.

_wlmim_cursor_handle_frame()

void _wlmim_cursor_handle_frame ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the frame event of wlr_cursor.

Parameters

listener_ptr
data_ptr

_wlmim_cursor_handle_motion()

void _wlmim_cursor_handle_motion ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the motion event of wlr_cursor.

Parameters

listener_ptr
data_ptr	Points to a wlr_pointer_motion_event.

_wlmim_cursor_handle_motion_absolute()

void _wlmim_cursor_handle_motion_absolute ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the motion_absolute event of wlr_cursor.

Parameters

listener_ptr
data_ptr	Points to a wlr_pointer_motion_absolute_event.

_wlmim_cursor_handle_seat_request_set_cursor()

void _wlmim_cursor_handle_seat_request_set_cursor ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handler for the request_set_cursor event of wlr_seat.

This event is raised when a client provides a cursor image. It is accepted only if the client also has the pointer focus.

Parameters

listener_ptr
data_ptr	Points to a wlr_seat_pointer_request_set_cursor_event.

_wlmim_cursor_process_motion()

void _wlmim_cursor_process_motion ( wlmim_cursor_t *  cursor_ptr, uint32_t  time_msec  )

static

Processes the cursor motion: Lookups up the view & surface under the pointer and sets (respectively: clears) the pointer focus. Also sets the default cursor image, if no view is given (== no client-side cursor).

Parameters

cursor_ptr
time_msec

_wlmim_cursor_test_config()

void _wlmim_cursor_test_config ( bs_test_t *  test_ptr )

static

Tests that parsing the configuration populates the options.

_wlmim_cursor_test_theme_name()

void _wlmim_cursor_test_theme_name ( bs_test_t *  test_ptr )

static

Tests obtaining the theme name.

_wlmim_cursor_theme_handler()

int _wlmim_cursor_theme_handler ( void *  ud_ptr, const char *  section_ptr, const char *  name_ptr, const char *  value_ptr  )

static

inih library parser callback for the system-wide cursor theme files.

wlmim_cursor_attach_input_device()

void wlmim_cursor_attach_input_device	(	wlmim_cursor_t *	cursor_ptr,
		struct wlr_input_device *	wlr_input_device_ptr
	)

Attaches the input device. May be a pointer, touch or tablet_tool device.

Parameters

cursor_ptr
wlr_input_device_ptr

wlmim_cursor_create()

wlmim_cursor_t * wlmim_cursor_create	(	wlmim_t *	input_manager_ptr,
		const struct wlmim_cursor_style *	style_ptr,
		const struct wlmim_cursor_options *	options_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr,
		struct wlr_seat *	wlr_seat_ptr,
		wlmtk_root_t *	root_ptr
	)

Creates the cursor handlers.

Parameters

input_manager_ptr
style_ptr
options_ptr
wlr_output_layout_ptr
wlr_seat_ptr
root_ptr

Returns

The cursor handler or NULL on error.

wlmim_cursor_destroy()

void wlmim_cursor_destroy

(

wlmim_cursor_t *

cursor_ptr

)

Destroys the cursor handlers.

Parameters

cursor_ptr

wlmim_cursor_detach_input_device()

void wlmim_cursor_detach_input_device	(	wlmim_cursor_t *	cursor_ptr,
		struct wlr_input_device *	wlr_input_device_ptr
	)

Detaches the input device.

See also

wlmim_cursor_attach_input_device.

Parameters

cursor_ptr
wlr_input_device_ptr

wlmim_cursor_set_style()

bool wlmim_cursor_set_style	(	wlmim_cursor_t *	cursor_ptr,
		const struct wlmim_cursor_style *	style_ptr
	)

Updates the cursor's style.

Parameters

cursor_ptr
style_ptr

Returns

true on success.

wlmim_cursor_wlr_cursor()

struct wlr_cursor * wlmim_cursor_wlr_cursor

(

wlmim_cursor_t *

cursor_ptr

)

Returns

wlmim_cursor_t::wlr_cursor_ptr.

Variable Documentation

_wlmim_cursor_system_config_alternative_file

const char* _wlmim_cursor_system_config_alternative_file

static

Initial value:

=
    "/etc/alternatives/x-cursor-theme"

The debian specific versino of the system-wide cursor configuration.

_wlmim_cursor_system_config_file

const char* _wlmim_cursor_system_config_file

static

Initial value:

=
    "/usr/share/icons/default/index.theme"

Name of the system-wide configuration file for cursor themes.

_wlmim_cursor_test_cases

const bs_test_case_t _wlmim_cursor_test_cases[]

static

Initial value:

= {
    { 1, "theme_name", _wlmim_cursor_test_theme_name },
    { 1, "config", _wlmim_cursor_test_config },

}

Unit test cases.

wlmim_cursor_options_desc

const bspl_desc_t wlmim_cursor_options_desc[]

Initial value:

= {
    BSPL_DESC_ENUM("EmulateRightButtonModifier", false,
                   struct wlmim_cursor_options, emulate_right_button_modifier,
                   emulate_right_button_modifier, 0,
                   wlmim_keyboard_modifiers),
    BSPL_DESC_ENUM("MoveWindowModifier", false,
                   struct wlmim_cursor_options, move_window_modifier,
                   move_window_modifier, 0,
                   wlmim_keyboard_modifiers),
    BSPL_DESC_SENTINEL(),
}

Descriptor for decoding Cursor-relevant config dictionary.

wlmim_cursor_style_desc

const bspl_desc_t wlmim_cursor_style_desc[]

Initial value:

= {
    BSPL_DESC_BOOL(
        "OverrideSystemConfiguration", false, struct wlmim_cursor_style,
        override_system_configuration, override_system_configuration, false),
    BSPL_DESC_STRING(
        "Name", true, struct wlmim_cursor_style, name_ptr, name_ptr,
        "default"),
    BSPL_DESC_UINT64(
        "Size", true, struct wlmim_cursor_style, size, size, 24),

}

Descriptor for decoding the "Cursor" style dictionary.

wlmim_cursor_test_set

const bs_test_set_t wlmim_cursor_test_set

Initial value:

= BS_TEST_SET(
    true, "cursor", _wlmim_cursor_test_cases)

Unit tests for cursor.
