button.c File Reference

#include "button.h"
#include <linux/input-event-codes.h>
#include <math.h>
#include <string.h>
#include <wlr/types/wlr_scene.h>
#include "gfxbuf.h"
#include "input.h"
#include "util.h"
#include "libbase/libbase.h"

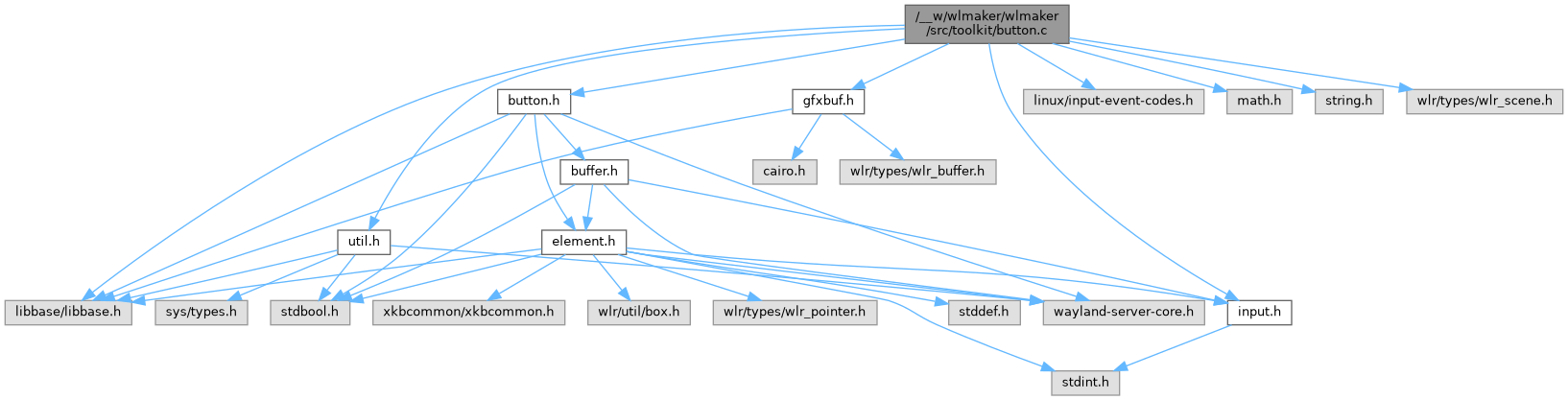

Include dependency graph for button.c:

Functions
static void	_wlmtk_button_clicked (wlmtk_button_t *button_ptr)
static bool	_wlmtk_button_element_pointer_button (wlmtk_element_t *element_ptr, const wlmtk_button_event_t *button_event_ptr)
static void	_wlmtk_button_handle_pointer_enter (struct wl_listener *listener_ptr, void *data_ptr)
static void	_wlmtk_button_handle_pointer_leave (struct wl_listener *listener_ptr, void *data_ptr)
static void	apply_state (wlmtk_button_t *button_ptr)
bool	wlmtk_button_init (wlmtk_button_t *button_ptr)
wlmtk_button_vmt_t	wlmtk_button_extend (wlmtk_button_t *button_ptr, const wlmtk_button_vmt_t *button_vmt_ptr)
void	wlmtk_button_fini (wlmtk_button_t *button_ptr)
void	wlmtk_button_set (wlmtk_button_t *button_ptr, struct wlr_buffer *released_wlr_buffer_ptr, struct wlr_buffer *pressed_wlr_buffer_ptr)
static void	test_create_destroy (bs_test_t *test_ptr)
static void	test_press_release (bs_test_t *test_ptr)
static void	test_press_release_outside (bs_test_t *test_ptr)
static void	test_press_right (bs_test_t *test_ptr)
static void	fake_button_clicked (wlmtk_button_t *button_ptr)

Variables
static const wlmtk_element_vmt_t	button_element_vmt
static const wlmtk_button_vmt_t	button_vmt
const bs_test_case_t	wlmtk_button_test_cases []
static bool	fake_button_got_clicked = false
static const wlmtk_button_vmt_t	fake_button_vmt

Detailed Description

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_button_clicked()

void _wlmtk_button_clicked ( wlmtk_button_t *  button_ptr )

static

Default implementation of wlmtk_button_vmt_t::clicked. Nothing.

_wlmtk_button_element_pointer_button()

bool _wlmtk_button_element_pointer_button ( wlmtk_element_t *  element_ptr, const wlmtk_button_event_t *  button_event_ptr  )

static

See wlmtk_element_vmt_t::pointer_button.

_wlmtk_button_handle_pointer_enter()

void _wlmtk_button_handle_pointer_enter ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Pointer enters the area: We may need to update visualization.

_wlmtk_button_handle_pointer_leave()

void _wlmtk_button_handle_pointer_leave ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Pointer leaves the area: We may need to update visualization.

apply_state()

void apply_state ( wlmtk_button_t *  button_ptr )

static

Sets the appropriate texture for the button.

fake_button_clicked()

static void fake_button_clicked ( wlmtk_button_t *  button_ptr )

static

Fake 'clicked' handler.

test_create_destroy()

void test_create_destroy ( bs_test_t *  test_ptr )

static

Exercises wlmtk_button_init and wlmtk_button_fini.

test_press_release()

void test_press_release ( bs_test_t *  test_ptr )

static

Tests button pressing & releasing.

test_press_release_outside()

void test_press_release_outside ( bs_test_t *  test_ptr )

static

Tests button when releasing outside the pointer focus.

test_press_right()

void test_press_right ( bs_test_t *  test_ptr )

static

Tests button when releasing outside the pointer focus.

wlmtk_button_extend()

wlmtk_button_vmt_t wlmtk_button_extend	(	wlmtk_button_t *	button_ptr,
		const wlmtk_button_vmt_t *	button_vmt_ptr
	)

Extends the button's virtual methods.

Parameters

button_ptr
button_vmt_ptr

Returns

The original virtual method table.

wlmtk_button_fini()

void wlmtk_button_fini

(

wlmtk_button_t *

button_ptr

)

Cleans up the button.

Parameters

button_ptr

wlmtk_button_init()

bool wlmtk_button_init

(

wlmtk_button_t *

button_ptr

)

Initializes the button.

Parameters

button_ptr

Returns

true on success.

wlmtk_button_set()

void wlmtk_button_set	(	wlmtk_button_t *	button_ptr,
		struct wlr_buffer *	released_wlr_buffer_ptr,
		struct wlr_buffer *	pressed_wlr_buffer_ptr
	)

Sets (or updates) the button textures.

Parameters

button_ptr
released_wlr_buffer_ptr
pressed_wlr_buffer_ptr

Variable Documentation

button_element_vmt

const wlmtk_element_vmt_t button_element_vmt

static

Initial value:

= {
    .pointer_button = _wlmtk_button_element_pointer_button,
}

Virtual method table for the button's element super class.

button_vmt

const wlmtk_button_vmt_t button_vmt

static

Initial value:

= {
    .clicked = _wlmtk_button_clicked,
}

Virtual method table for the button.

fake_button_got_clicked

bool fake_button_got_clicked = false

static

Test outcome: Whether 'clicked' was called.

fake_button_vmt

const wlmtk_button_vmt_t fake_button_vmt

static

Initial value:

= {
    .clicked = fake_button_clicked,
}

Virtual method table of fake button.

wlmtk_button_test_cases

const bs_test_case_t wlmtk_button_test_cases[]

Initial value:

= {
    { 1, "create_destroy", test_create_destroy },
    { 1, "press_release", test_press_release },
    { 1, "press_release_outside", test_press_release_outside },
    { 1, "press_right", test_press_right },
    { 0, NULL, NULL }
}

Test case definition.
