backend.c File Reference

#include "backend.h"
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>
#include <toolkit/toolkit.h>
#include <wayland-server-core.h>
#include <wayland-util.h>
#include <wlr/backend.h>
#include <wlr/backend/session.h>
#include <wlr/render/allocator.h>
#include <wlr/render/wlr_renderer.h>
#include <wlr/types/wlr_compositor.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include <wlr/types/wlr_scene.h>
#include <wlr/types/wlr_screencopy_v1.h>
#include <wlr/types/wlr_subcompositor.h>
#include <wlr/version.h>
#include "output.h"
#include "output_config.h"
#include "output_manager.h"

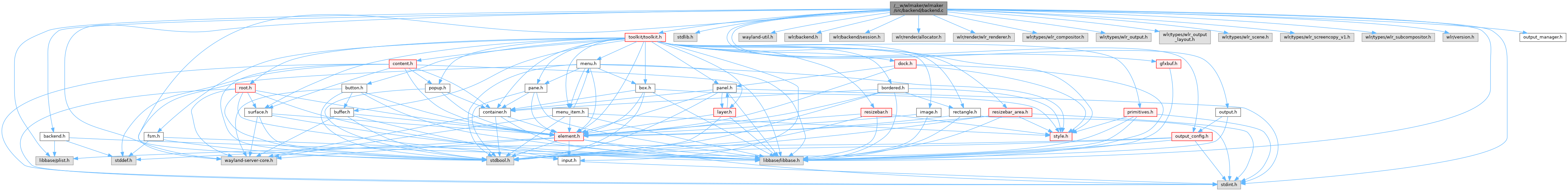

Include dependency graph for backend.c:

Classes
struct	_wlmbe_backend_t

Functions
static void	_wlmbe_backend_handle_new_output (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmbe_backend_decode_item (bspl_object_t *obj_ptr, size_t i, void *dest_ptr)
static void	_wlmbe_backend_decode_fini (void *dest_ptr)
static void	_wlmbe_backend_config_dlnode_destroy (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
wlmbe_backend_t *	wlmbe_backend_create (struct wl_display *wl_display_ptr, struct wlr_scene *wlr_scene_ptr, struct wlr_output_layout *wlr_output_layout_ptr, int width, int height, bspl_dict_t *config_dict_ptr)
void	wlmbe_backend_destroy (wlmbe_backend_t *backend_ptr)
void	wlmbe_backend_switch_to_vt (wlmbe_backend_t *backend_ptr, unsigned vt_num)
struct wlr_backend *	wlmbe_backend_wlr (wlmbe_backend_t *backend_ptr)
struct wlr_compositor *	wlmbe_backend_compositor (wlmbe_backend_t *backend_ptr)
struct wlr_output *	wlmbe_primary_output (struct wlr_output_layout *wlr_output_layout_ptr)
size_t	wlmbe_num_outputs (struct wlr_output_layout *wlr_output_layout_ptr)
bool	_wlmbe_backend_add_output (wlmbe_backend_t *backend_ptr, wlmbe_output_t *output_ptr)
static void	_wlmbe_backend_test_find (bs_test_t *test_ptr)

Variables
static const bspl_desc_t	_wlmbe_output_configs_desc []
static const bspl_desc_t	_wlmbe_outputs_state_desc []
const bs_test_case_t	wlmbe_backend_test_cases []

Detailed Description

Copyright

Copyright 2025 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmbe_backend_add_output()

bool _wlmbe_backend_add_output	(	wlmbe_backend_t *	backend_ptr,
		wlmbe_output_t *	output_ptr
	)

Adds the output to the backend.

Parameters

backend_ptr
output_ptr

Returns

true on success.

_wlmbe_backend_config_dlnode_destroy()

void _wlmbe_backend_config_dlnode_destroy ( bs_dllist_node_t *  dlnode_ptr, void *  ud_ptr  )

static

Iterator callback: Destroys a wlmbe_output_config_t.

Parameters

dlnode_ptr	To wlmbe_output_config_t::dlnode, and identifies the config node to destroy.
ud_ptr	unused.

_wlmbe_backend_decode_fini()

void _wlmbe_backend_decode_fini ( void *  dest_ptr )

static

Frees all resources of the wlmbe_output_config_t in the list.

_wlmbe_backend_decode_item()

bool _wlmbe_backend_decode_item ( bspl_object_t *  obj_ptr, size_t  i, void *  dest_ptr  )

static

Decodes an item of Outputs.

_wlmbe_backend_handle_new_output()

void _wlmbe_backend_handle_new_output ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Handles new output events: Creates wlmbe_output_t and adds them.

_wlmbe_backend_test_find()

void _wlmbe_backend_test_find ( bs_test_t *  test_ptr )

static

Tests that output configurations are found as desired.

wlmbe_backend_compositor()

struct wlr_compositor * wlmbe_backend_compositor

(

wlmbe_backend_t *

backend_ptr

)

Accessor. TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Eliminate.

wlmbe_backend_create()

wlmbe_backend_t * wlmbe_backend_create	(	struct wl_display *	wl_display_ptr,
		struct wlr_scene *	wlr_scene_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr,
		int	width,
		int	height,
		bspl_dict_t *	config_dict_ptr
	)

Creates the backend drivers.

Parameters

wl_display_ptr
wlr_scene_ptr
wlr_output_layout_ptr
width
height
config_dict_ptr

Returns

the server backend state, or NULL on error.

wlmbe_backend_destroy()

void wlmbe_backend_destroy

(

wlmbe_backend_t *

backend_ptr

)

Destroys the server backend.

Parameters

backend_ptr

wlmbe_backend_switch_to_vt()

void wlmbe_backend_switch_to_vt	(	wlmbe_backend_t *	backend_ptr,
		unsigned	vt_num
	)

Switches to the given virtual terminal, if a wlroots session is available.

Logs if wlr_session_change_vt() fails, but ignores the errors.

Parameters

backend_ptr
vt_num

wlmbe_backend_wlr()

struct wlr_backend * wlmbe_backend_wlr

(

wlmbe_backend_t *

backend_ptr

)

Accessor. TODO(kaese.nosp@m.r@gu.nosp@m.bbe.c.nosp@m.h): Eliminate.

wlmbe_num_outputs()

size_t wlmbe_num_outputs

(

struct wlr_output_layout *

wlr_output_layout_ptr

)

Returns the number of outputs active in the output layout.

Parameters

wlr_output_layout_ptr

Returns

Number of outputs.

wlmbe_primary_output()

struct wlr_output * wlmbe_primary_output

(

struct wlr_output_layout *

wlr_output_layout_ptr

)

Returns the primary output. Currently that is the first output found in the output layout.

Parameters

wlr_output_layout_ptr

Returns

A pointer to the struct wlr_output for the primary output.

Variable Documentation

_wlmbe_output_configs_desc

const bspl_desc_t _wlmbe_output_configs_desc[]

static

Initial value:

= {
    BSPL_DESC_ARRAY("Outputs", true, wlmbe_backend_t, output_configs,
                    output_configs,
                    _wlmbe_backend_decode_item,
                    NULL,
                    _wlmbe_backend_decode_fini),
    BSPL_DESC_SENTINEL(),
}

Descriptor for the output configuration.

_wlmbe_outputs_state_desc

const bspl_desc_t _wlmbe_outputs_state_desc[]

static

Initial value:

= {
    BSPL_DESC_ARRAY("Outputs", true, wlmbe_backend_t, ephemeral_output_configs,
                    ephemeral_output_configs,
                    _wlmbe_backend_decode_item,
                    NULL,
                    _wlmbe_backend_decode_fini),
    BSPL_DESC_SENTINEL(),
}

Descriptor for the output state, stored as plist.

wlmbe_backend_test_cases

const bs_test_case_t wlmbe_backend_test_cases[]

Initial value:

= {
    { 1, "find", _wlmbe_backend_test_find },
    { 0, NULL, NULL }
}

Unit test cases.
