output_config.h File Reference

#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <stdbool.h>
#include <stdint.h>
#include <wayland-client-protocol.h>

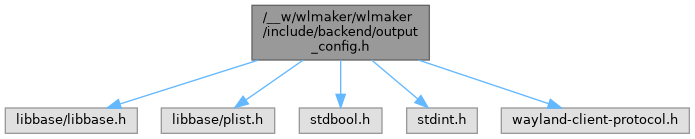

Include dependency graph for output_config.h:

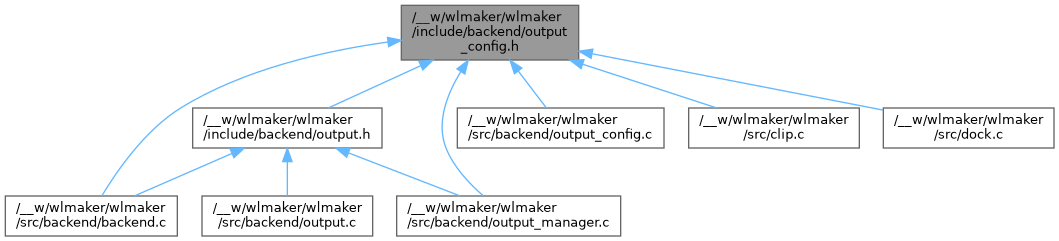

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	wlmbe_output_config_position_t
struct	wlmbe_output_config_mode_t
struct	wlmbe_output_description_t
struct	wlmbe_output_config_attributes_t

Typedefs
typedef struct _wlmbe_output_config_t	wlmbe_output_config_t

Functions
wlmbe_output_config_t *	wlmbe_output_config_from_dlnode (bs_dllist_node_t *dlnode_ptr)
bs_dllist_node_t *	wlmbe_dlnode_from_output_config (wlmbe_output_config_t *config_ptr)
const wlmbe_output_config_attributes_t *	wlmbe_output_config_attributes (wlmbe_output_config_t *config_ptr)
void	wlmbe_output_config_update_attributes (wlmbe_output_config_t *config_ptr, struct wlr_output *wlr_output_ptr, int x, int y, bool has_position)
void	wlmbe_output_config_apply_attributes (wlmbe_output_config_t *config_ptr, const wlmbe_output_config_attributes_t *attributes_ptr)
wlmbe_output_config_t *	wlmbe_output_config_create_from_wlr (struct wlr_output *wlr_output_ptr)
bool	wlmbe_output_config_equals (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
bool	wlmbe_output_config_fnmatches (bs_dllist_node_t *dlnode_ptr, void *ud_ptr)
wlmbe_output_config_t *	wlmbe_output_config_create_from_plist (bspl_dict_t *dict_ptr)
bspl_dict_t *	wlmbe_output_config_create_into_plist (const wlmbe_output_config_t *config_ptr)
void	wlmbe_output_config_destroy (wlmbe_output_config_t *config_ptr)
bool	wlmbe_output_description_init_from_plist (wlmbe_output_description_t *desc_ptr, bspl_dict_t *dict_ptr)
void	wlmbe_output_description_fini (wlmbe_output_description_t *desc_ptr)
bool	wlmbe_output_description_equals (wlmbe_output_description_t *desc_ptr, struct wlr_output *wlr_output_ptr)
bool	wlmbe_output_description_fnmatches (wlmbe_output_description_t *desc_ptr, struct wlr_output *wlr_output_ptr)
struct wlr_output *	wlmbe_output_description_first_fnmatch (wlmbe_output_description_t *desc_ptr, struct wlr_output_layout *wlr_output_layout_ptr)

Variables
const bs_test_case_t	wlmbe_output_config_test_cases []

Detailed Description

Copyright

Copyright 2025 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Typedef Documentation

wlmbe_output_config_t

typedef struct _wlmbe_output_config_t wlmbe_output_config_t

Forward declaration.

Function Documentation

wlmbe_dlnode_from_output_config()

bs_dllist_node_t * wlmbe_dlnode_from_output_config

(

wlmbe_output_config_t *

config_ptr

)

Returns the base pointer from the wlmbe_output_config_t::dlnode.

wlmbe_output_config_apply_attributes()

void wlmbe_output_config_apply_attributes	(	wlmbe_output_config_t *	config_ptr,
		const wlmbe_output_config_attributes_t *	attributes_ptr
	)

Applies attributes_ptr to the configuration. Respects presence flags.

Parameters

config_ptr
attributes_ptr

wlmbe_output_config_attributes()

const wlmbe_output_config_attributes_t * wlmbe_output_config_attributes

(

wlmbe_output_config_t *

config_ptr

)

Returns pointer to wlmbe_output_config_t::attributes.

wlmbe_output_config_create_from_plist()

wlmbe_output_config_t * wlmbe_output_config_create_from_plist

(

bspl_dict_t *

dict_ptr

)

Creates a new output config from the plist dictionnary dict_ptr.

Parameters

dict_ptr

Returns

New output configuration or NULL on error.

wlmbe_output_config_create_from_wlr()

wlmbe_output_config_t * wlmbe_output_config_create_from_wlr

(

struct wlr_output *

wlr_output_ptr

)

Creates a new output config from wlr_output.

Parameters

wlr_output_ptr

Returns

New output configuration or NULL on error.

wlmbe_output_config_create_into_plist()

bspl_dict_t * wlmbe_output_config_create_into_plist

(

const wlmbe_output_config_t *

config_ptr

)

Creates a plist dict from the output config.

Parameters

config_ptr

Returns

A plist dict or NULL on error.

wlmbe_output_config_destroy()

void wlmbe_output_config_destroy

(

wlmbe_output_config_t *

config_ptr

)

Destroys the output configuration.

wlmbe_output_config_equals()

bool wlmbe_output_config_equals	(	bs_dllist_node_t *	dlnode_ptr,
		void *	ud_ptr
	)

Returns whether the backend configuration equals the wlr_output attributes.

Parameters

dlnode_ptr	To wlmbe_output_config_t::dlnode.
ud_ptr	To a struct wlr_output.

Returns

true if it equals.

wlmbe_output_config_fnmatches()

bool wlmbe_output_config_fnmatches	(	bs_dllist_node_t *	dlnode_ptr,
		void *	ud_ptr
	)

Returns if the backend configuration fnmatches the wlr_output attributes.

Parameters

dlnode_ptr	To wlmbe_output_config_t::dlnode.
ud_ptr	To a struct wlr_output.

Returns

true if it matches.

wlmbe_output_config_from_dlnode()

wlmbe_output_config_t * wlmbe_output_config_from_dlnode

(

bs_dllist_node_t *

dlnode_ptr

)

Returns the base pointer from the wlmbe_output_config_t::dlnode.

wlmbe_output_config_update_attributes()

void wlmbe_output_config_update_attributes	(	wlmbe_output_config_t *	config_ptr,
		struct wlr_output *	wlr_output_ptr,
		int	x,
		int	y,
		bool	has_position
	)

Updates the attributes from wlr_output_ptr and the given position info.

wlmbe_output_description_equals()

bool wlmbe_output_description_equals	(	wlmbe_output_description_t *	desc_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Returns whether the output description equals the wlr_output's attributes.

Parameters

desc_ptr
wlr_output_ptr

Returns

True if all fields (Name, Manufacturer, Model, Serial) have the same presence in both description and wlr_output_ptr, and (if present) their values are equal.

wlmbe_output_description_fini()

void wlmbe_output_description_fini

(

wlmbe_output_description_t *

desc_ptr

)

Un-initializes the output description.

wlmbe_output_description_first_fnmatch()

struct wlr_output * wlmbe_output_description_first_fnmatch	(	wlmbe_output_description_t *	desc_ptr,
		struct wlr_output_layout *	wlr_output_layout_ptr
	)

Returns the first wlr_output_layout output that matches desc_ptr.

Parameters

desc_ptr
wlr_output_layout_ptr

Returns

A pointer to the first wlr_output found in wlr_output_layout_ptr that matches desc_ptr. See wlmbe_output_description_fnmatches for matching details.

wlmbe_output_description_fnmatches()

bool wlmbe_output_description_fnmatches	(	wlmbe_output_description_t *	desc_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Returns whether the output description matches the wlr_output's attributes.

Parameters

desc_ptr
wlr_output_ptr

Returns

For all fields present in the description, returns the aggregate AND of whether a fnmatch() of the field matches the corresponding wlr_output field.

wlmbe_output_description_init_from_plist()

bool wlmbe_output_description_init_from_plist	(	wlmbe_output_description_t *	desc_ptr,
		bspl_dict_t *	dict_ptr
	)

Initializes the output description from the plist dictionary.

Parameters

desc_ptr
dict_ptr	Dictionary describing the output. It may contain keys and values beyond of what's described in _wlmbe_output_description_desc.

Variable Documentation

wlmbe_output_config_test_cases

const bs_test_case_t wlmbe_output_config_test_cases[]

extern

Unit tests for the output module.
