pointer.c File Reference

#include "pointer.h"
#include <inttypes.h>
#include <libbase/libbase.h>
#include <libbase/plist.h>
#include <libinput.h>
#include <stddef.h>
#include <stdlib.h>
#include <wlr/backend/libinput.h>
#include <wlr/types/wlr_input_device.h>

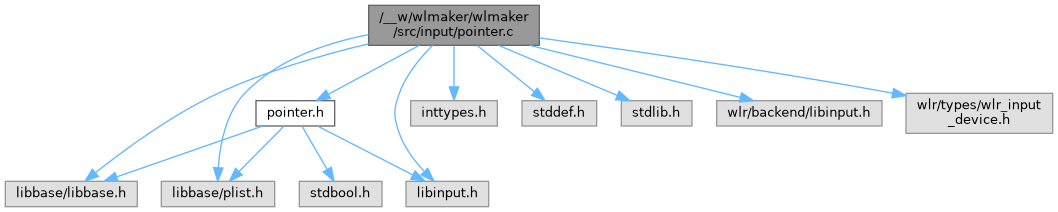

Include dependency graph for pointer.c:

Classes
struct	_wlmim_pointer_t

Functions
void	_wlmim_pointer_apply (wlmim_pointer_t *pointer_ptr, const struct wlmim_pointer_param *param_ptr)
wlmim_pointer_t *	wlmim_pointer_create (struct wlr_input_device *wlr_input_device_ptr, const struct wlmim_pointer_param *param_ptr)
void	wlmim_pointer_destroy (wlmim_pointer_t *pointer_ptr)
bool	wlmim_pointer_parse_config (bspl_dict_t *config_dict_ptr, struct wlmim_pointer_param *param_ptr)
bool	wlmim_pointer_enabled (wlmim_pointer_t *pointer_ptr)
static void	_wlmim_pointer_test_parse (bs_test_t *test_ptr)

Variables
static const bspl_enum_desc_t	_wlmim_pointer_click_methods []
static const bspl_enum_desc_t	_wlmim_pointer_scroll_methods []
static const bspl_desc_t	_wlmim_pointer_config_touchpad []
static const bspl_desc_t	_wlmim_pointer_config []
static const bs_test_case_t	wlmim_pointer_test_cases []
const bs_test_set_t	wlmim_pointer_test_set

Detailed Description

Copyright

Copyright (c) 2026 Google LLC and Philipp Kaeser

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmim_pointer_apply()

void _wlmim_pointer_apply	(	wlmim_pointer_t *	p,
		const struct wlmim_pointer_param *	param_ptr
	)

Applies the touchpad configuration to the pointer input device.

A no-op if the device is not a touchpad, ie. has zero 'tap fingers'.

Parameters

p
param_ptr

_wlmim_pointer_test_parse()

void _wlmim_pointer_test_parse ( bs_test_t *  test_ptr )

static

Tests parsing the dict.

wlmim_pointer_create()

wlmim_pointer_t * wlmim_pointer_create	(	struct wlr_input_device *	wlr_input_device_ptr,
		const struct wlmim_pointer_param *	param_ptr
	)

Creates a pointer, and configures it as specified.

Parameters

wlr_input_device_ptr
param_ptr

Returns

A pointer handle or NULL on error.

wlmim_pointer_destroy()

void wlmim_pointer_destroy

(

wlmim_pointer_t *

pointer_ptr

)

Destroys the pointer.

Parameters

pointer_ptr

wlmim_pointer_enabled()

bool wlmim_pointer_enabled

(

wlmim_pointer_t *

pointer_ptr

)

Returns

wlmim_pointer_t::enabled.

wlmim_pointer_parse_config()

bool wlmim_pointer_parse_config	(	bspl_dict_t *	config_dict_ptr,
		struct wlmim_pointer_param *	param_ptr
	)

Parses the pointer-specific parts of the config dict.

Parameters

config_dict_ptr
param_ptr

Returns

true on success

Variable Documentation

_wlmim_pointer_click_methods

const bspl_enum_desc_t _wlmim_pointer_click_methods[]

static

Initial value:

= {
    BSPL_ENUM("None", LIBINPUT_CONFIG_CLICK_METHOD_NONE),
    BSPL_ENUM("ButtonAreas", LIBINPUT_CONFIG_CLICK_METHOD_BUTTON_AREAS),
    BSPL_ENUM("ClickFinger", LIBINPUT_CONFIG_CLICK_METHOD_CLICKFINGER),

}

Enum values for "ClickMethod"

_wlmim_pointer_config

const bspl_desc_t _wlmim_pointer_config[]

static

Initial value:

= {
    BSPL_DESC_DICT(
        "Touchpad",
        false,
        struct wlmim_pointer_param,
        touchpad,
        touchpad,
        _wlmim_pointer_config_touchpad),

}

Enum definition for pointer-related config section(s).

_wlmim_pointer_config_touchpad

const bspl_desc_t _wlmim_pointer_config_touchpad[]

static

Plist descriptor for the "Touchpad" section.

_wlmim_pointer_scroll_methods

const bspl_enum_desc_t _wlmim_pointer_scroll_methods[]

static

Initial value:

= {
    BSPL_ENUM("NoScroll", LIBINPUT_CONFIG_SCROLL_NO_SCROLL),
    BSPL_ENUM("TwoFingers", LIBINPUT_CONFIG_SCROLL_2FG),
    BSPL_ENUM("Edge", LIBINPUT_CONFIG_SCROLL_EDGE),
    BSPL_ENUM("OnButtonDown", LIBINPUT_CONFIG_SCROLL_ON_BUTTON_DOWN),

}

Enum values for "ScrollMethod"

wlmim_pointer_test_cases

const bs_test_case_t wlmim_pointer_test_cases[]

static

Initial value:

= {
    { true, "parse", _wlmim_pointer_test_parse },

}

Unit test cases.

wlmim_pointer_test_set

const bs_test_set_t wlmim_pointer_test_set

Initial value:

= BS_TEST_SET(
    true, "pointer", wlmim_pointer_test_cases)

Unit test set for pointers.
