output_tracker.c File Reference

#include "output_tracker.h"
#include <libbase/libbase.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>
#include <wayland-server-core.h>
#include <wlr/types/wlr_output.h>
#include <wlr/types/wlr_output_layout.h>
#include "test.h"
#include "util.h"

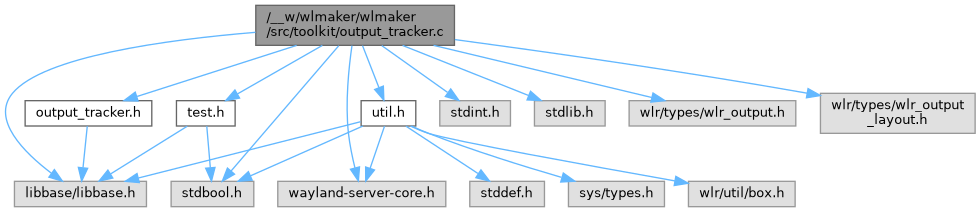

Include dependency graph for output_tracker.c:

Classes
struct	_wlmtk_output_tracker_t
struct	wlmtk_output_tracker_output_t
struct	wlmtk_output_tracker_update_arg
struct	_wlmtk_output_tracker_test_state

Functions
static void	_wlmtk_output_tracker_tree_node_destroy (bs_avltree_node_t *avlnode_ptr)
static int	_wlmtk_output_tracker_tree_node_cmp (const bs_avltree_node_t *avlnode_ptr, const void *key_ptr)
static void	_wlmtk_output_tracker_handle_output_layout_change (struct wl_listener *listener_ptr, void *data_ptr)
static bool	_wlmtk_output_tracker_output_handle_change (struct wl_list *link_ptr, void *ud_ptr)
wlmtk_output_tracker_t *	wlmtk_output_tracker_create (struct wlr_output_layout *wlr_output_layout_ptr, void *userdata_ptr, wlmtk_output_tracker_output_create_callback_t create_fn, wlmtk_output_tracker_output_update_callback_t update_fn, wlmtk_output_tracker_output_destroy_callback_t destroy_fn)
void	wlmtk_output_tracker_destroy (wlmtk_output_tracker_t *tracker_ptr)
void *	wlmtk_output_tracker_get_output (wlmtk_output_tracker_t *tracker_ptr, struct wlr_output *wlr_output_ptr)
struct wlr_output_layout *	wlmtk_output_tracker_get_layout (wlmtk_output_tracker_t *tracker_ptr)
wlmtk_output_tracker_output_t *	wlmtk_output_tracker_output_create (wlmtk_output_tracker_t *tracker_ptr, struct wlr_output *wlr_output_ptr)
static void	_wlmtk_output_tracker_test (bs_test_t *test_ptr)
static void *	_wlmtk_output_tracker_test_create_output (struct wlr_output *wlr_output_ptr, void *ud_ptr)
static void	_wlmtk_output_tracker_test_update_output (struct wlr_output *wlr_output_ptr, void *ud_ptr, void *output_ptr)
static void	_wlmtk_output_tracker_test_destroy_output (struct wlr_output *wlr_output_ptr, void *ud_ptr, void *output_ptr)

Variables
const bs_test_case_t	wlmtk_output_tracker_test_cases []

Detailed Description

Copyright

Copyright (c) 2026 Google LLC and Philipp Kaeser

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

_wlmtk_output_tracker_handle_output_layout_change()

void _wlmtk_output_tracker_handle_output_layout_change ( struct wl_listener *  listener_ptr, void *  data_ptr  )

static

Output layout changed: Iterate over all outputs.

_wlmtk_output_tracker_output_handle_change()

bool _wlmtk_output_tracker_output_handle_change ( struct wl_list *  link_ptr, void *  ud_ptr  )

static

Handles change for one output of the layout: Calls create or update.

_wlmtk_output_tracker_test()

void _wlmtk_output_tracker_test ( bs_test_t *  test_ptr )

static

Tests output tracker.

_wlmtk_output_tracker_test_create_output()

static void * _wlmtk_output_tracker_test_create_output ( struct wlr_output *  wlr_output_ptr, void *  ud_ptr  )

static

For tests: Creates a tracked output.

_wlmtk_output_tracker_test_destroy_output()

static void _wlmtk_output_tracker_test_destroy_output ( struct wlr_output *  wlr_output_ptr, void *  ud_ptr, void *  output_ptr  )

static

For tests: Destroys a tracked output.

_wlmtk_output_tracker_test_update_output()

static void _wlmtk_output_tracker_test_update_output ( struct wlr_output *  wlr_output_ptr, void *  ud_ptr, void *  output_ptr  )

static

For tests: Update to a tracked output.

_wlmtk_output_tracker_tree_node_cmp()

int _wlmtk_output_tracker_tree_node_cmp ( const bs_avltree_node_t *  avlnode_ptr, const void *  key_ptr  )

static

Compares wlmtk_output_tracker_output_t::wlr_output_ptr.

_wlmtk_output_tracker_tree_node_destroy()

void _wlmtk_output_tracker_tree_node_destroy ( bs_avltree_node_t *  avlnode_ptr )

static

Destroys the tracker state for an output, by the tree node.

wlmtk_output_tracker_create()

wlmtk_output_tracker_t * wlmtk_output_tracker_create	(	struct wlr_output_layout *	wlr_output_layout_ptr,
		void *	userdata_ptr,
		wlmtk_output_tracker_output_create_callback_t	create_fn,
		wlmtk_output_tracker_output_update_callback_t	update_fn,
		wlmtk_output_tracker_output_destroy_callback_t	destroy_fn
	)

Creates an output tracker.

Parameters

wlr_output_layout_ptr
userdata_ptr	Will be passed to the callbacks below.
create_fn
update_fn
destroy_fn

Returns

A tracker handle, or NULL on error.

wlmtk_output_tracker_destroy()

void wlmtk_output_tracker_destroy

(

wlmtk_output_tracker_t *

tracker_ptr

)

Destroys the output tracker.

wlmtk_output_tracker_output_destroy_callback_t will be called for any yet-remaining output.

Parameters

tracker_ptr

wlmtk_output_tracker_get_layout()

struct wlr_output_layout * wlmtk_output_tracker_get_layout

(

wlmtk_output_tracker_t *

tracker_ptr

)

Returns wlmtk_output_tracker_t::wlr_output_layout_ptr.

wlmtk_output_tracker_get_output()

void * wlmtk_output_tracker_get_output	(	wlmtk_output_tracker_t *	tracker_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Returns the "created output" for wlr_output_ptr.

Parameters

tracker_ptr
wlr_output_ptr

Returns

Return value of wlmtk_output_tracker_output_create_callback_t that was called for the value of wlr_output_ptr. Or NULL, if wlr_output_ptr is not tracked.

wlmtk_output_tracker_output_create()

wlmtk_output_tracker_output_t * wlmtk_output_tracker_output_create	(	wlmtk_output_tracker_t *	tracker_ptr,
		struct wlr_output *	wlr_output_ptr
	)

Creates state for tracking an output.

Variable Documentation

wlmtk_output_tracker_test_cases

const bs_test_case_t wlmtk_output_tracker_test_cases[]

Initial value:

= {
    { 1, "test", _wlmtk_output_tracker_test },
    { 0, NULL, NULL }
}

Output tracker unit test.
