fsm.c File Reference

#include "fsm.h"
#include <libbase/libbase.h>

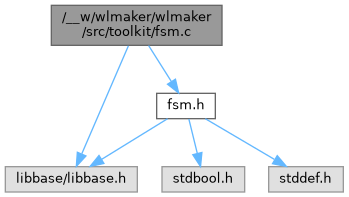

Include dependency graph for fsm.c:

Functions
void	wlmtk_fsm_init (wlmtk_fsm_t *fsm_ptr, const wlmtk_fsm_transition_t *transitions, int initial_state)
bool	wlmtk_fsm_event (wlmtk_fsm_t *fsm_ptr, int event, void *ud_ptr)
static void	test_event (bs_test_t *test_ptr)
static bool	test_fsm_handler (wlmtk_fsm_t *fsm_ptr, void *ud_ptr)

Variables
const bs_test_case_t	wlmtk_fsm_test_cases []
static const wlmtk_fsm_transition_t	test_transitions []

Detailed Description

Event-driven finite state machine.

Copyright

Copyright 2023 Google LLC

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

https://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Function Documentation

test_event()

void test_event ( bs_test_t *  test_ptr )

static

Tests FSM.

test_fsm_handler()

static bool test_fsm_handler ( wlmtk_fsm_t *  fsm_ptr, void *  ud_ptr  )

static

Test handler for the FSM unit test: Sets the bool to true.

wlmtk_fsm_event()

bool wlmtk_fsm_event	(	wlmtk_fsm_t *	fsm_ptr,
		int	event,
		void *	ud_ptr
	)

Handles an event for the finite-state machine.

Will search for the transition matching (current state, event) and call the associate handler.

Parameters

fsm_ptr
event
ud_ptr

Returns

If a matching transition was found: The return value of the associated handler (or true, if no handler was given). Otherwise, returns false.

wlmtk_fsm_init()

void wlmtk_fsm_init	(	wlmtk_fsm_t *	fsm_ptr,
		const wlmtk_fsm_transition_t *	transitions,
		int	initial_state
	)

Initializes the finite-state machine.

Parameters

fsm_ptr
transitions
initial_state

Variable Documentation

test_transitions

const wlmtk_fsm_transition_t test_transitions[]

static

Initial value:

= {
    { 1, 100, 2, test_fsm_handler },
    { 2, 101, 3, NULL },
    WLMTK_FSM_TRANSITION_SENTINEL
}

Test transition table for the FSM unit test.

wlmtk_fsm_test_cases

const bs_test_case_t wlmtk_fsm_test_cases[]

Initial value:

= {
    { 1, "event", test_event },
    { 0, NULL, NULL }
}

Unit tests for the finite-state machine.
